LG 75XE3C - 75" - High Brightness OUTDOOR Digital Signage Screen with chasing - 3000 Nits


Turime daug

Key Features Brightness : 3,000 cd/m2 Operating Temperature : -30°C to 50 °C Bezel : Top 110mm, Bottom 230 mm, Left / Right 73.3 mm Depth : 218.9 mm Interface : HDMI / DP /...
Key Features
  • Brightness : 3,000 cd/m2
  • Operating Temperature : -30°C to 50 °C
  • Bezel : Top 110mm, Bottom 230 mm, Left / Right 73.3 mm
  • Depth : 218.9 mm
  • Interface : HDMI / DP / DVI / RJ45 / RS232C / SD Card / USB3.0 / External speaker out

Outstanding Visibility

Smart Brightness Control

The auto-brightness sensor and preset time scheduler save power whenever possible.

Outstanding Visibility

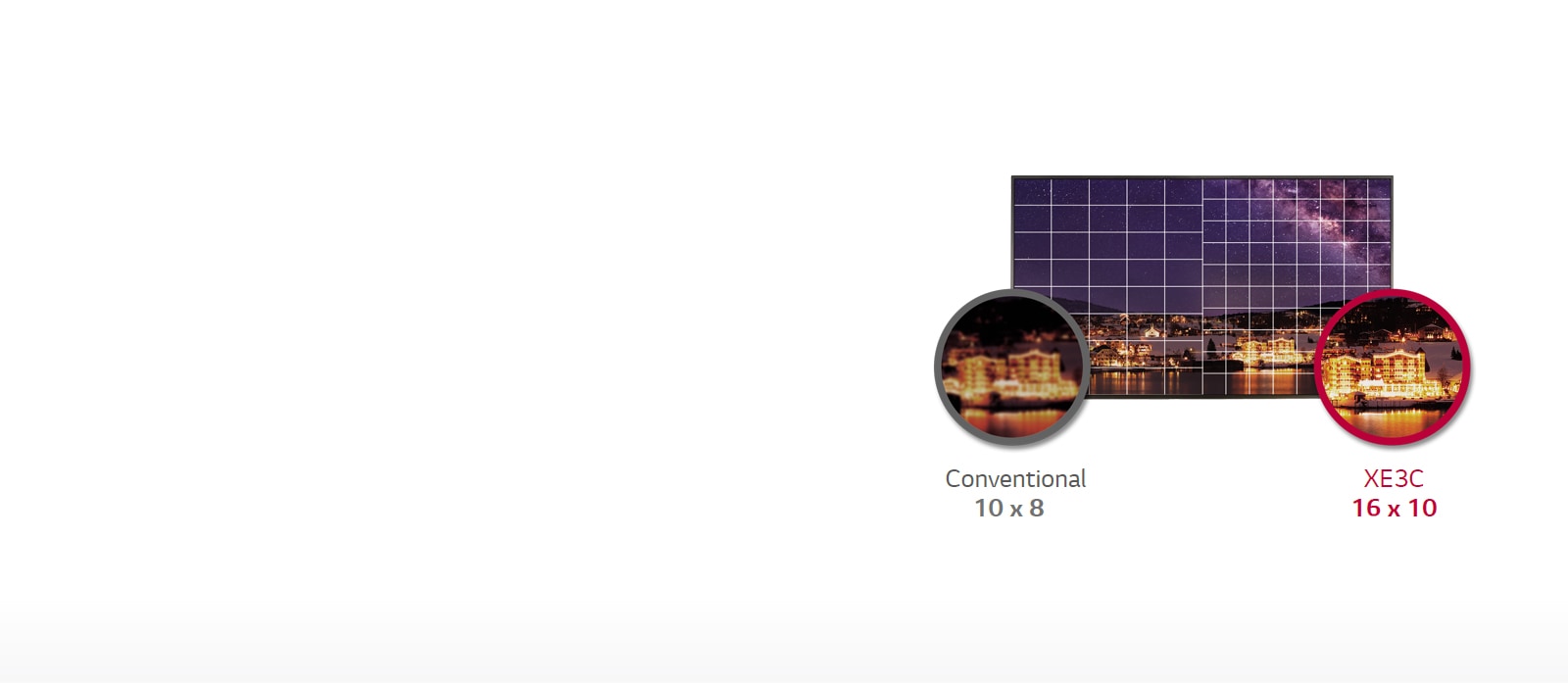

Advanced Local Dimming

The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image with twice the detail.
*55XE3C: 160 Blocks

Outstanding Visibility

QWP (Quarter Wave Plate)

FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.

Advanced IPS Technology

Wide Viewing Angle

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

Advanced IPS Technology

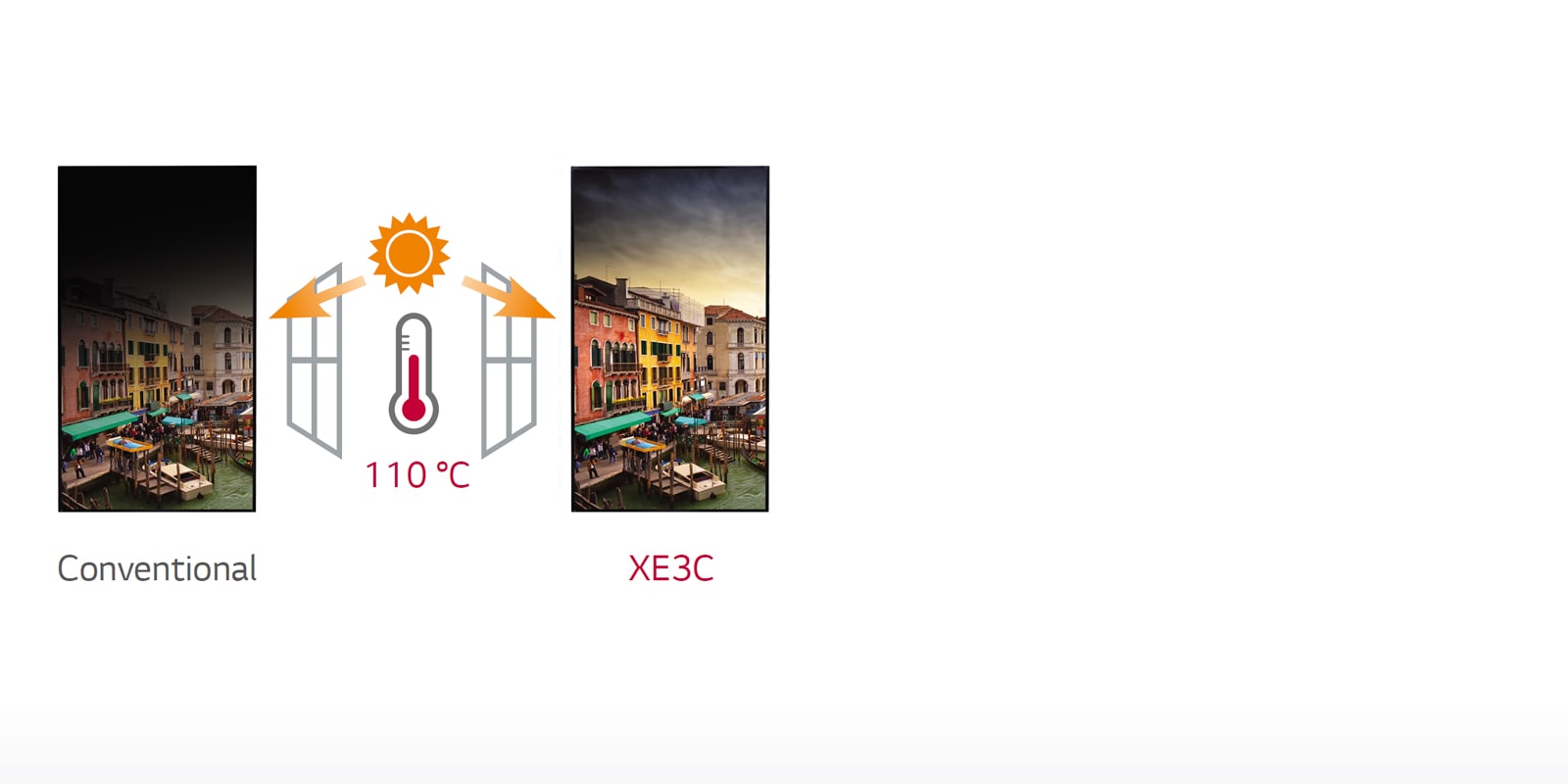

No Blackening Effect

Even under direct sunlight exposure, LG commercial monitors remain free from blackening defects under 110°C and provide superior quality for outdoor usage.

Advanced IPS Technology

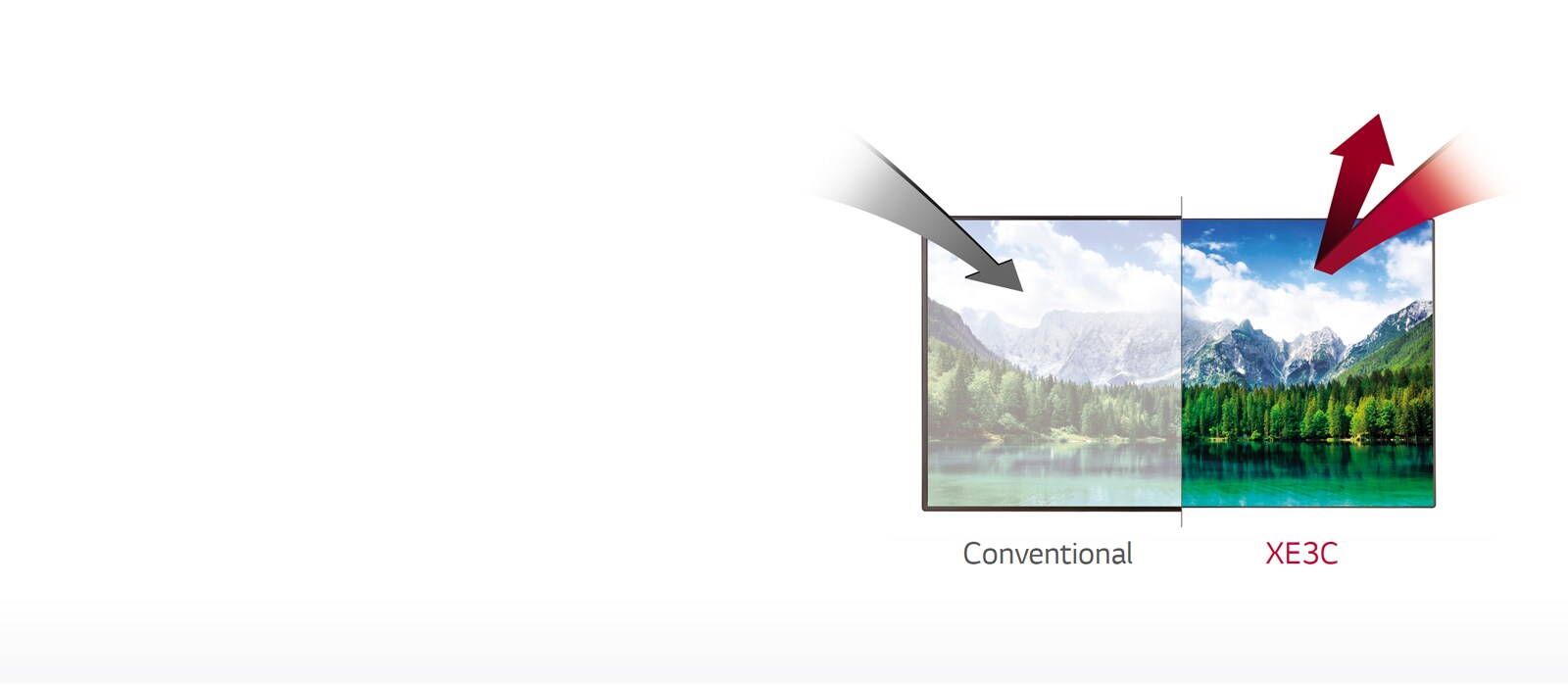

Less interference between reflection of external light & back light thanks to anti-reflection coating.

Product Reliability

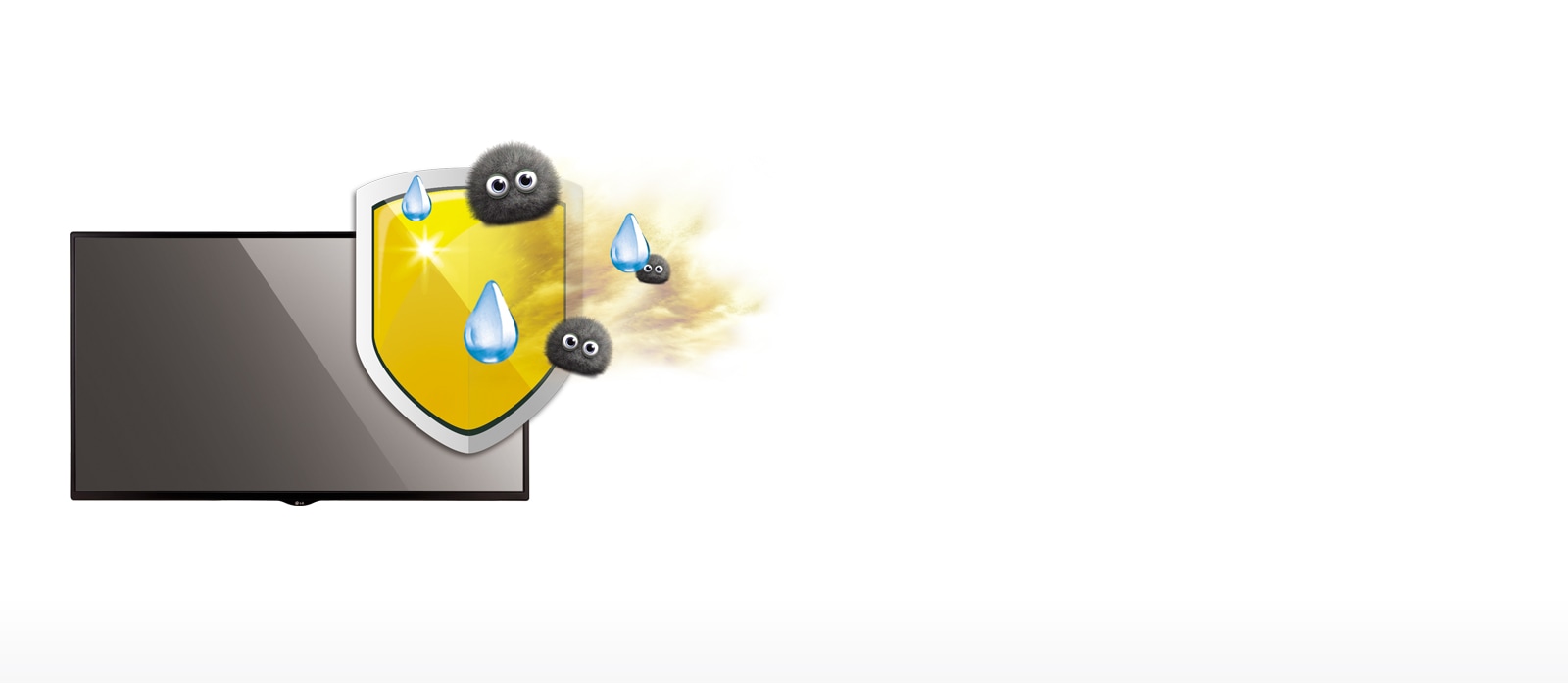

Dust & Humidity Protection Designed with IP56 Rating

The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.

Product Reliability

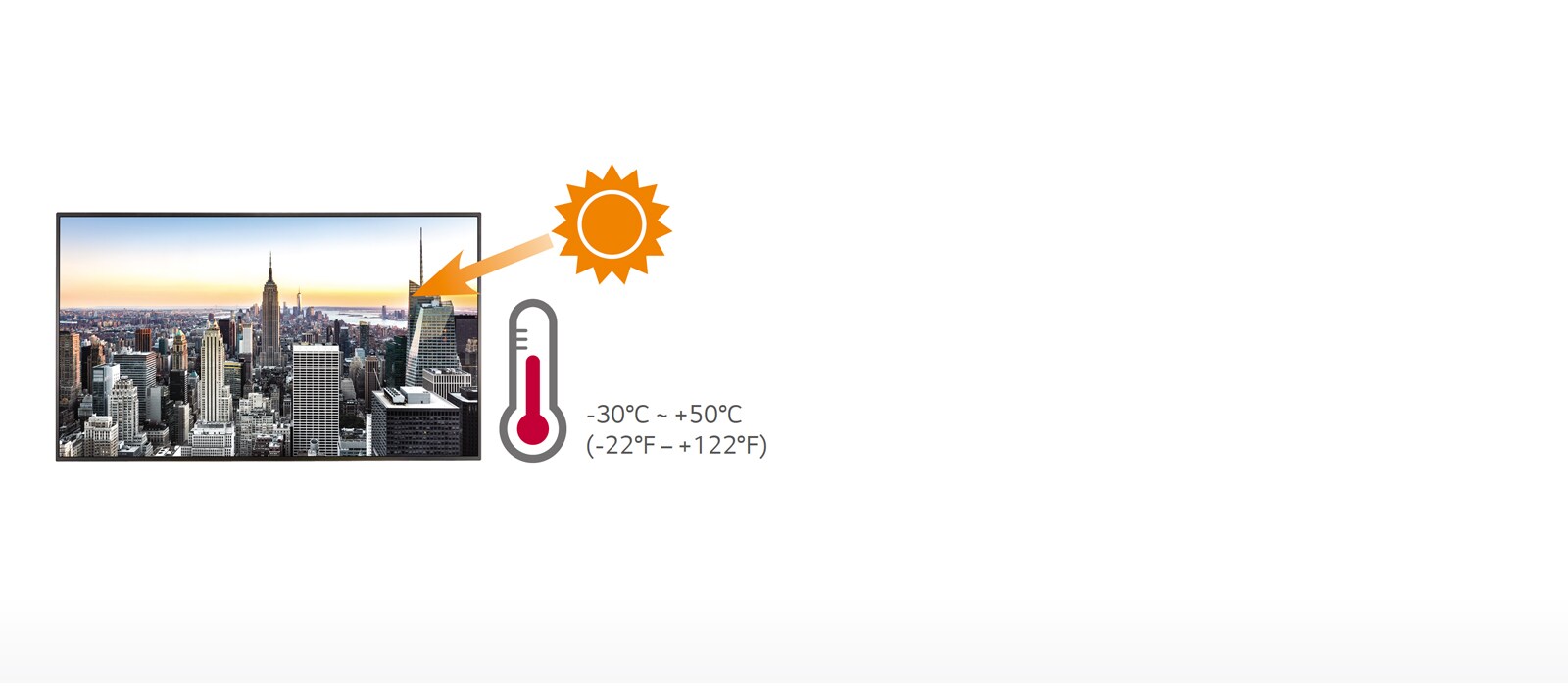

High Operating Temperature

The panel offers superb reliability under high operating temperatures and reduces cooling fan usage.

Product Reliability

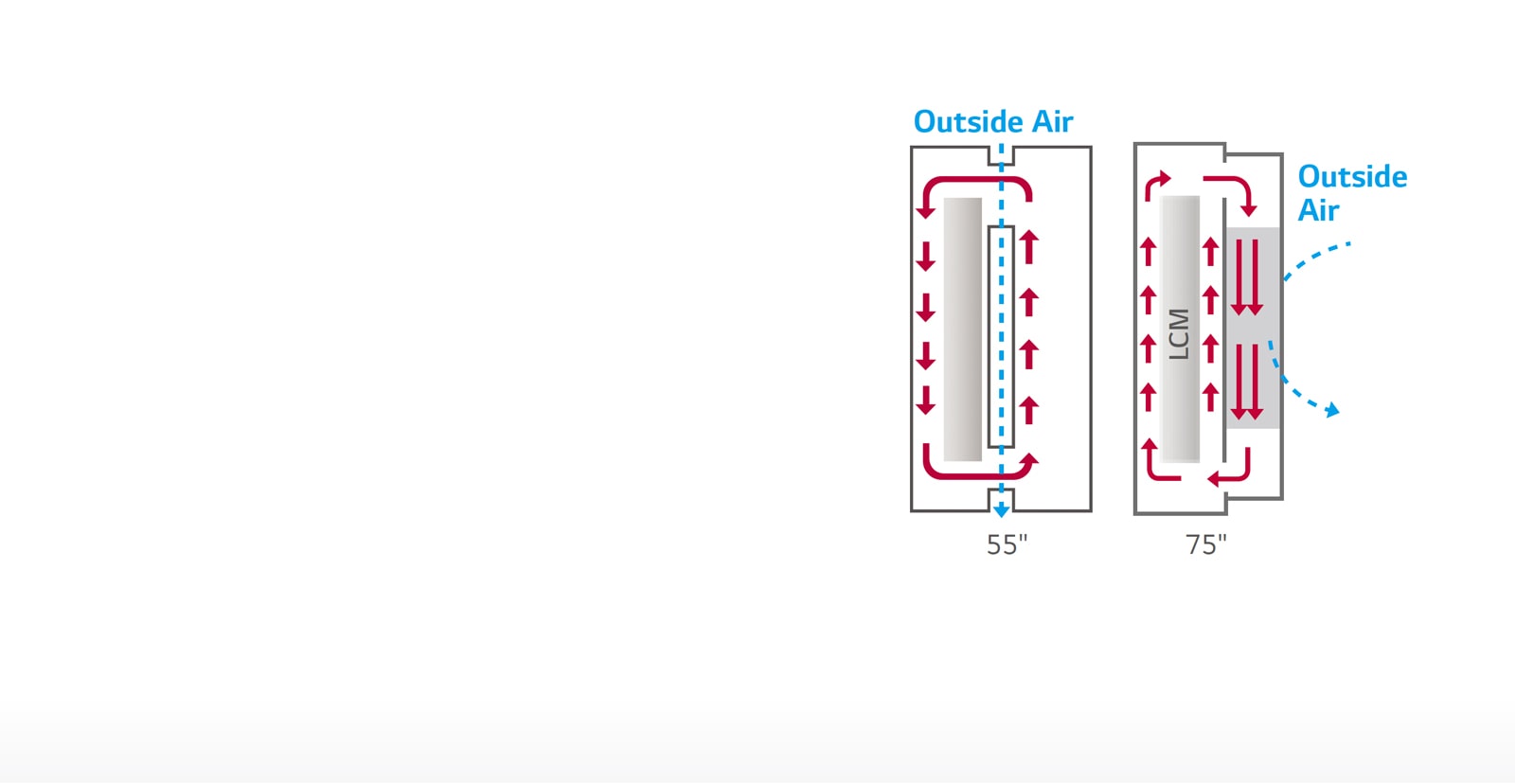

Enhanced Thermal Management

Environmentally sealed structure for waterproofing and protection against brake dust and fumes. Thermal management solution prevents heating from the LCD, Circuit / Power board and Solar loading. Totally self-contained and suitable for outdoor use without air filter.

Product Reliability

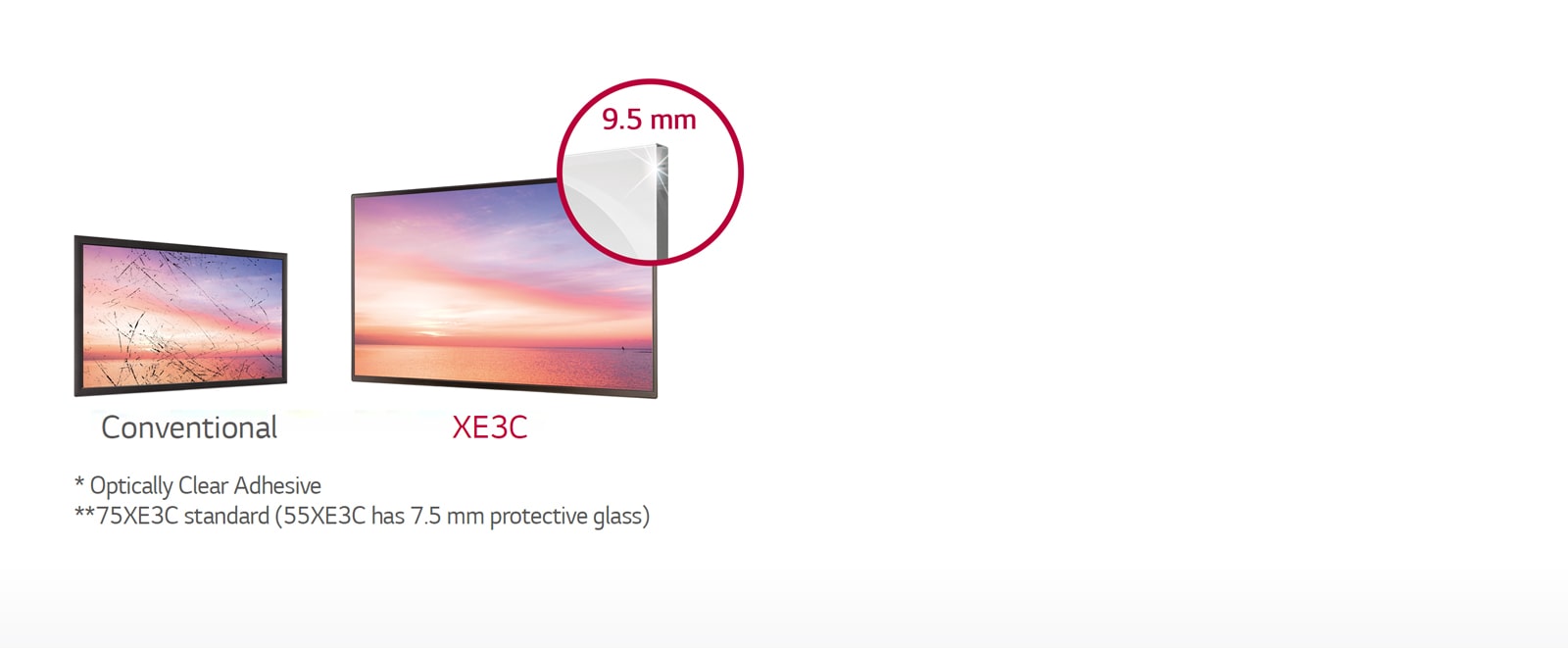

9.5 mm Protective Glass

Designed to protect panel from impacts and vandalism for outdoor use. Features OCA* film to protect against heating in direct sunlight.

Cost Effective

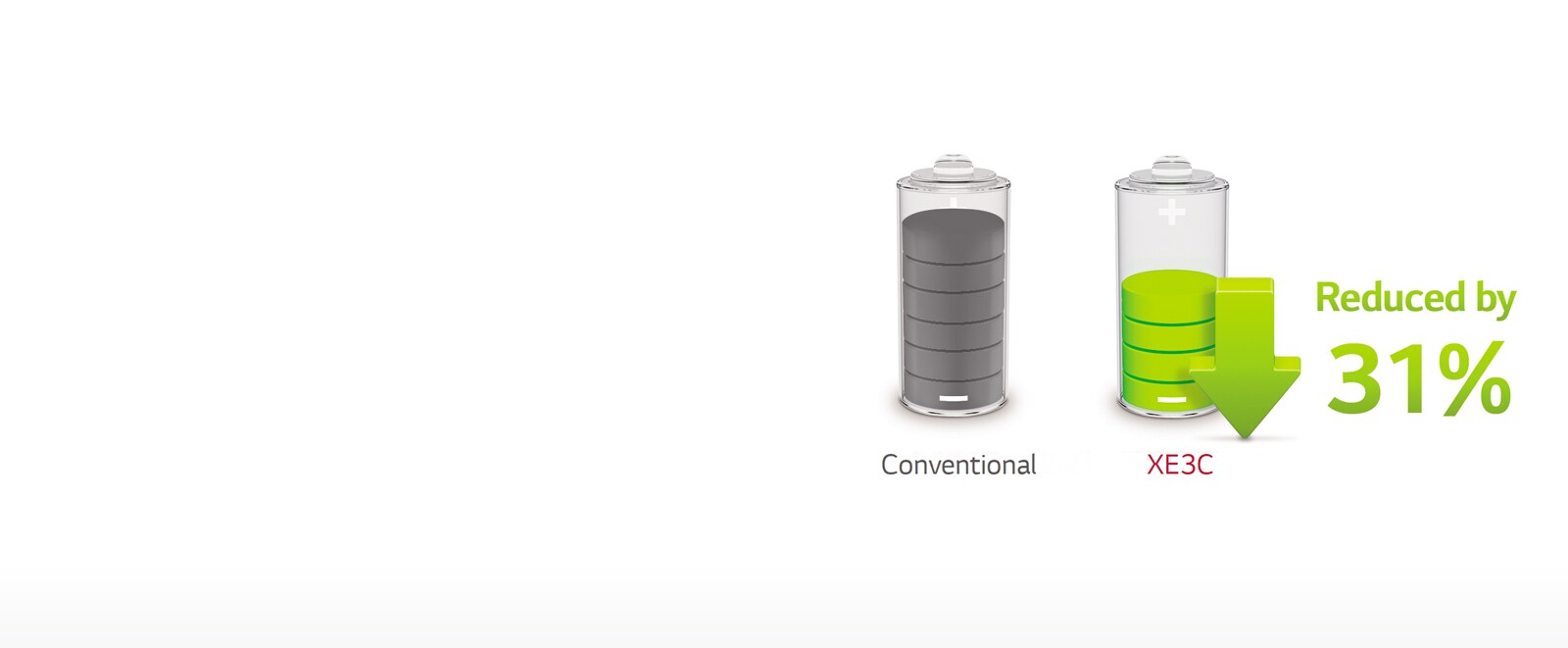

Low Power Consumption Using The M+ Panel

The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31 compared to conventional RGB panels*.
* With same luminance

Easy Operation

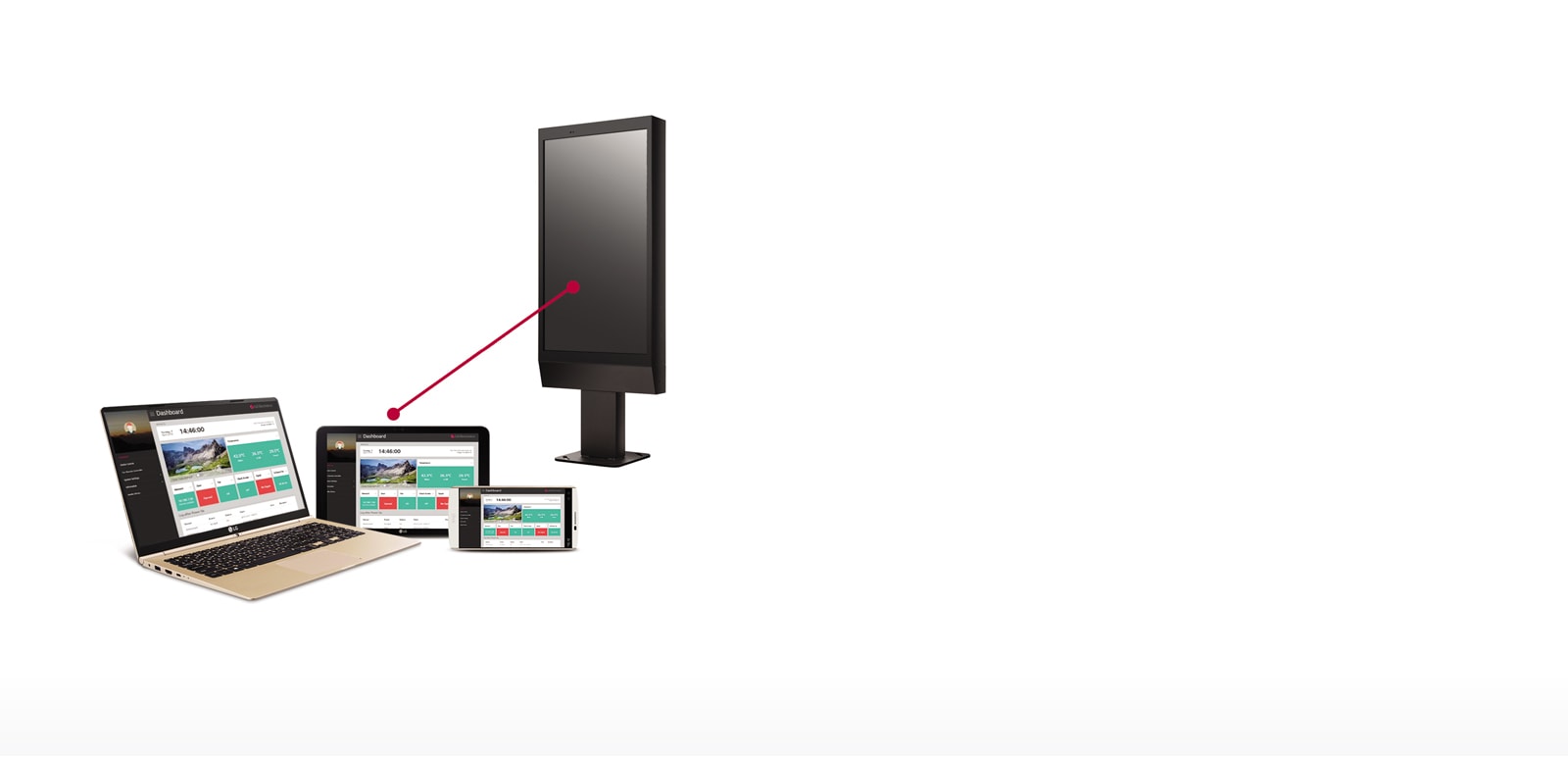

Web Monitoring

The embedded web monitoring allows a variety of parameters to be diagnosed in real time using temperature, pixel, door, ambient light and gyro sensors. It can be easily controlled at all times.

Easy Operation

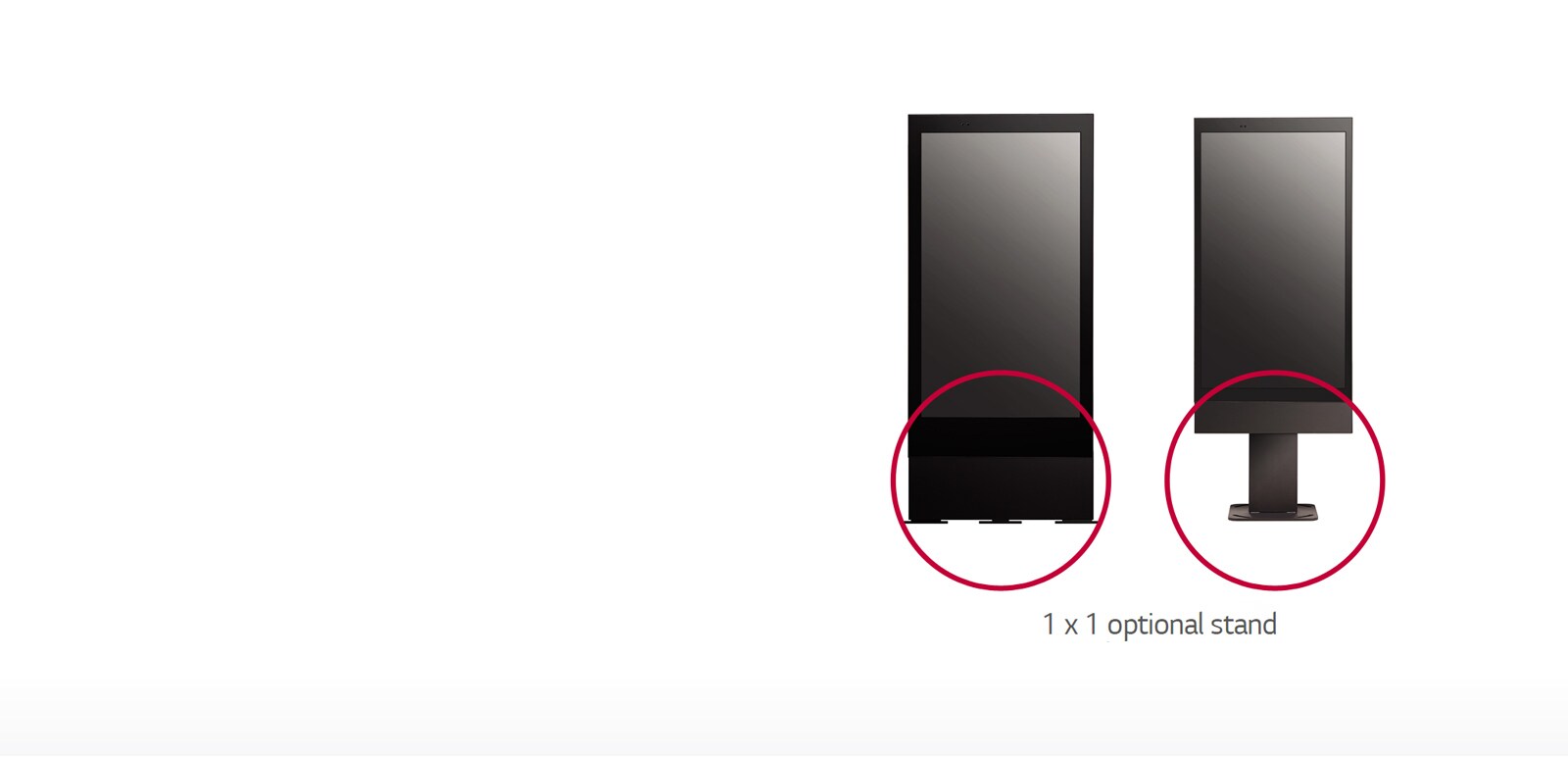

Optional Stand

Optional stand to allow panel to stand freely and facilitate easy cable management.

Screen Size 75" Class
Native Resolution 3,840 x 2,160 (UHD), M+
Input HDMI, DP, DVI-D, Audio
Output DP, External Speaker (*waterproof speakers are mandatory for outdoor installation)
External Control RS232C, RJ45, SD Card, USB 3.0
Physical Specification
Bezel Width 9.5 mm (AR, Front Safety Vandal Glass)
Monitor Dimension (W x H x D) 1,075.6 x 1,991.6 x 218.9 mm
Weight (Head) 180 kg
Environment Conditions
Operation Temperature -30 °C to 50 °C
Operation Humidity 5 % to 100 %
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Standard (Certification)
Safety UL / cUL / CB
EMC FCC Class "A" / CE / KCC
ErP / Energy Star No / No
Media Player Compatibility
OPS type compatible No
External Media player Attatchable No
Software Compatibility
Content Management Software SuperSign Premium
Control and Monitoring Software SuperSign C
Basic Remote Controller, Manual, QSG, Regulation Book, Phone to RS232C Gender, USB cable, HDMI cable
Optional Media player (driven by customer), Enclosure Stand (ST-750X)
