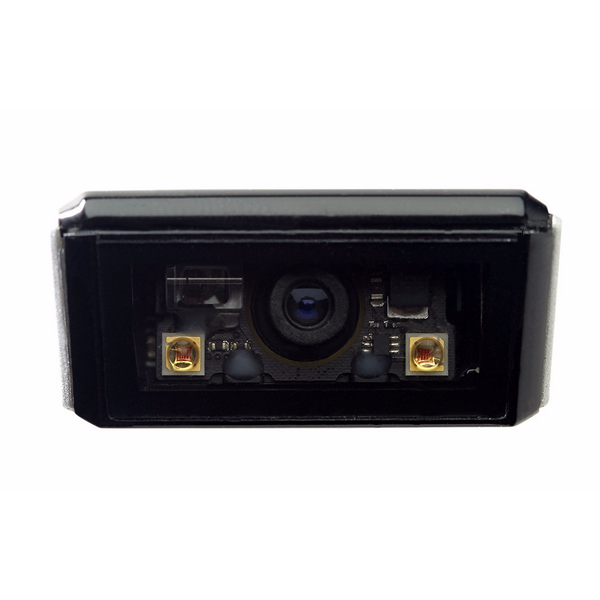

The PX20 is the smallest programmable 2D Bluetooth data collector. With a fast integrated 2D CMOS scanner and when fully charged, offering operating times of up to 35 hours. In occasions where Bluetooth is not provided, access by the USB port enables (cabled) data transfer to any USB device.
| Operation | CPU: RX62N 32-bit MCU O/S: Proprietary Software: Multiple applications available (also programmable in C-language. Free software development kit with free RX compiler) |
| Memory | FlashROM: 512 kB RAM: 96 kB External FlashROM: 1024 kB |
| Communication | USB: MicroUSB, VCP Bluetooth: Ver. 2.1, SPP, HID, SSP, 1 to 1 connection, master / slave mode, authentication and encryption |
| Power | Operating time: 20 hours (1 scan / minute incl Bluetooth communication), 35 hours (1 scan / minute, Bluetooth not activated |
| 2D ImagerOptics | Scan method: CMOS area sensor, 752 x 480 pixels Scan rate: Up to 60 fps R |
| Weight body | Ca. 40 g / 1.4 oz (incl. battery) |
| Dimensions | 34 x 71 x 15 mm |
Daugiau informacijos
| Barcode Reader technology | 2D Camera scanner |
| Gamintojas | Opticon |
| Garantija | 2 metai |
| Network communication | BluetoothUSB |
| Pristatymo laikas | 1 savaitė |
| Barcode type | 1D barcode and 2D imager |
| Skaitytuvo korpuso tipas | Companion Scanner |
| Kilmės šalis | Nyderlandai |
| Svoris (kg) | 0.4000 |
