Wireless device – fast installation without any special cabling works.
Long range communication – wireless communication range is up to 150m.
Universal usage – supports data reading from various types of SensMax remote monitoring sensors.
Significant capacity – supports data reading from up to 200 pcs of sensors within communication range.
Backup memory – built-in memory for short-term data backup in case of Internet connectivity failures.
Reliable device – built-in watchdog prevents hangups from electricity network failures.
3G connectivity – supports data forwarding to an online database via a mobile network.
Range of communication:up to 150m
Qty of serviced devices :up to 200 wireless sensors
Internal memory :short term shared backup memory (5 sensors 18h, 200 sensors 0.5h)
Internet connection :3G mobile network

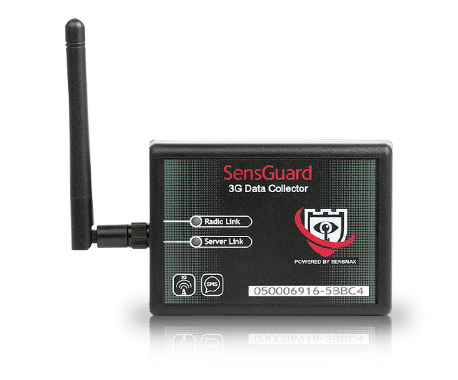

Remote monitoring system data gateway SensMax SensGuard 3G for reading information from wireless monitoring sensors. The data gateway reads statistics from wireless monitoring sensors and sends it to online reporting portal using 3G mobile internet connection.
Remote monitoring system gateway SensMax SensGuard 3G LR reads parameters from wireless monitoring sensors and delivers it to an online reporting portal via a 3G Internet connection using the mobile network. This gateway supports data reading from up to 200 pcs of wireless sensors. Communication range is up to 150m. There is an option to extend communication range up to 500m by installing additional gateways in signal repeater mode. Remote monitoring system data gateway has built-in memory module allows to keep short-term data backup in case of connectivity problems, as well as there is a built-in watchdog that prevents the device from hangups in case of electricity failures.
This 3G data gateway best fits projects where there are no options to connect local area network, or it is prohibited. It has a standard SIM slot for connection to any local mobile network. So you can build an environment monitoring solution that will be independent of local IT infrastructure using wireless monitoring sensors and 3G data gateway. Remote monitoring system gateway supports data reading from all types of SensMax sensors: wireless temperature sensors, wireless temperature and humidity sensors, temperature sensors with the probe, and air quality VOC sensors.
|Remote monitoring system gateway SensMax SensGuard 3G LR|
|Devices supported||all types of SensMax wireless remote monitoring sensors|
|Communication ranges||up to 150m and up to 500m with signal repeaters|
|Data signal encryption||AES128|
|Qty of serviced devices||up to 200 wireless monitoring sensors|
|Internal memory||short term shared backup memory (5 sensors 18h, 200 sensors 0.5h)|
|Configuration port||USB or remote configuration via SMS|
|Power supply||AC adapter 5V|
|Frame||АВS Plastic, black|
