Samsung aukštos raiškos ekranas vitrinoms OMD-W-Series-46"/55"

€3,039.00

Specialus užsakymas

Outdoor OMD-W Series Deliver promotional messaging vividly with excellent visibility  Draw more visitors to your retail business by effectively delivering promotional messaging with excellent visibility. OMD Series SMART Signage features 2500-nit high brightness and 5000:1...
Size

Outdoor OMD-W Series

Deliver promotional messaging vividly with excellent visibility

Deliver promotional messaging vividly with excellent visibility

Draw more visitors to your retail business by effectively delivering promotional messaging with excellent visibility. OMD Series SMART Signage features 2500-nit high brightness and 5000:1 contrast ratio for superb visibility in various lighting environments. Even customers who are wearing polarised sunglasses can view messages with outstanding clarity and brightness, without the display-blindness effect typically experienced with LCD displays.


Display content with optimal brightness and cost-efficiency

Display content with optimal brightness and cost-efficiency

Optimise brightness control while reducing display operating expenses and power consumption with an automatic brightness sensor. You can customise the maximum and minimum brightness within a range of 350-nit to 2500-nit brightness to complement any environment and control expenses, while extending the life of the monitor.


Rely on strong 24/7 durability in various outdoor environments

Rely on strong 24/7 durability in various outdoor environments

Present business messaging 24/7 even when the display is exposed to sunlight directly and indirectly for reliable around-the-clock operation. OMD Series SMART Signage is mechanically designed and has undergone internal testing to endure heat with a panel that can withstand up to 110 °C (230 °F) temperatures.


Experience easy management and clutter-free installation with SSSP

Experience easy management and clutter-free installation with SSSP

Leverage Samsung’s industry-leading 2nd Generation SSSP and a powerful quad-core processor with SoC technology for outstanding performance. 2nd Generation SSSP has advanced MagicInfo® Premium S all-in-one embedded content management solution that eliminates the need for a separate PC or media player. The result is an uncluttered and simplified digital signage configuration that delivers rich media content, enhanced operational efficiency and lower TCO.


Easily and professionally manage content from a mobile device

Easily and professionally manage content from a mobile device

Manage content conveniently from a mobile device with built-in Wi-Fi and MagicInfo® solution, even when the displays are installed in difficult-to-access locations. MagicInfo enables professional management of multiple displays, and the MagicInfo Mobile application can be used on a tablet or other mobile device to easily deliver content to displays or to update the displays’ templates or content.


Deliver engaging content with a very visible, sleek and exceptional design

Deliver engaging content with a very visible, sleek and exceptional design

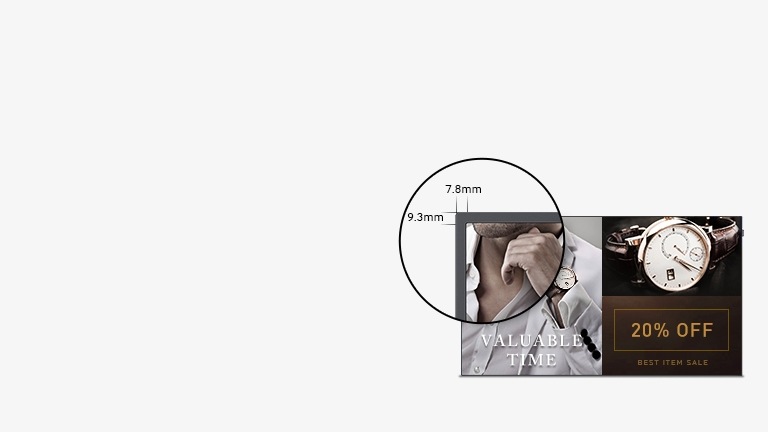

Impress customers and reduce viewing distractions with a sophisticated design featuring a narrow 9.3 mm bezel and slim depth that offers an elegant appearance. Slim bezels allow OMD Series displays to be used in seamless video walls for stunning window and wall displays. And with slim-depth panels these stylish displays deliver efficient use of space while reducing separate housing design costs.


Choose the ideal display type for any business environment

Choose the ideal display type for any business environment

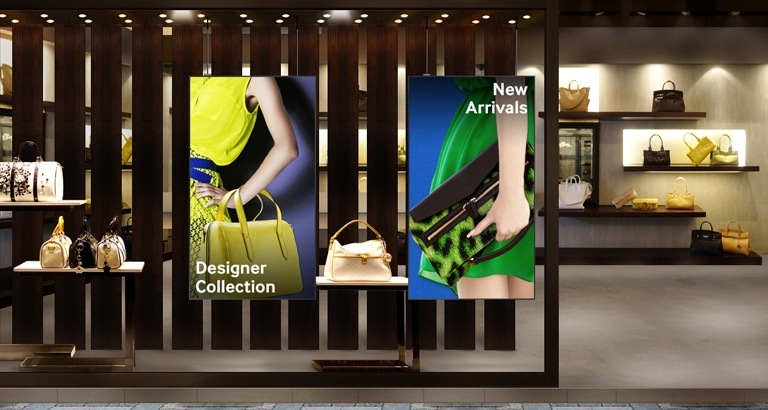

Take advantage of a variety of form factors to suit your display environment. As a standalone kit-type panel, the OMD-K is designed for specialised use in various customised housings to serve a wide range of configuration and environmental needs. OMD-W is an aesthetically pleasing standalone panel that is suitable for in-window store display usage with a back cover that hides its array of connectivity ports and openings. Both OMD-K and OMD-W models are available in various sizes (46”, 55” and 75”) for configuration flexibility.


Specification
46"
  • Display
    • Diagonal Size46"
    • Panel TypeS-VA
    • Resolution1920 x 1080 (16:9)
    • Active Display Size (HxV)1018.08 (H) x 572.67 (V)
    • Brightness (Typical)2500 cd/m²
    • Contrast Ratio5000:1
    • Viewing Angle (Horizontal/Vertical)178° / 178°
    • Response Time6 ms
    • Display Colour8 bit - 16.7 M
    • Colour Gamut72%
    • H-Scanning Frequency30 ~ 81 kHZ
    • Maximum Pixel Frequency148.5 Mhz
    • V-Scanning Frequency48 ~ 75 Hz

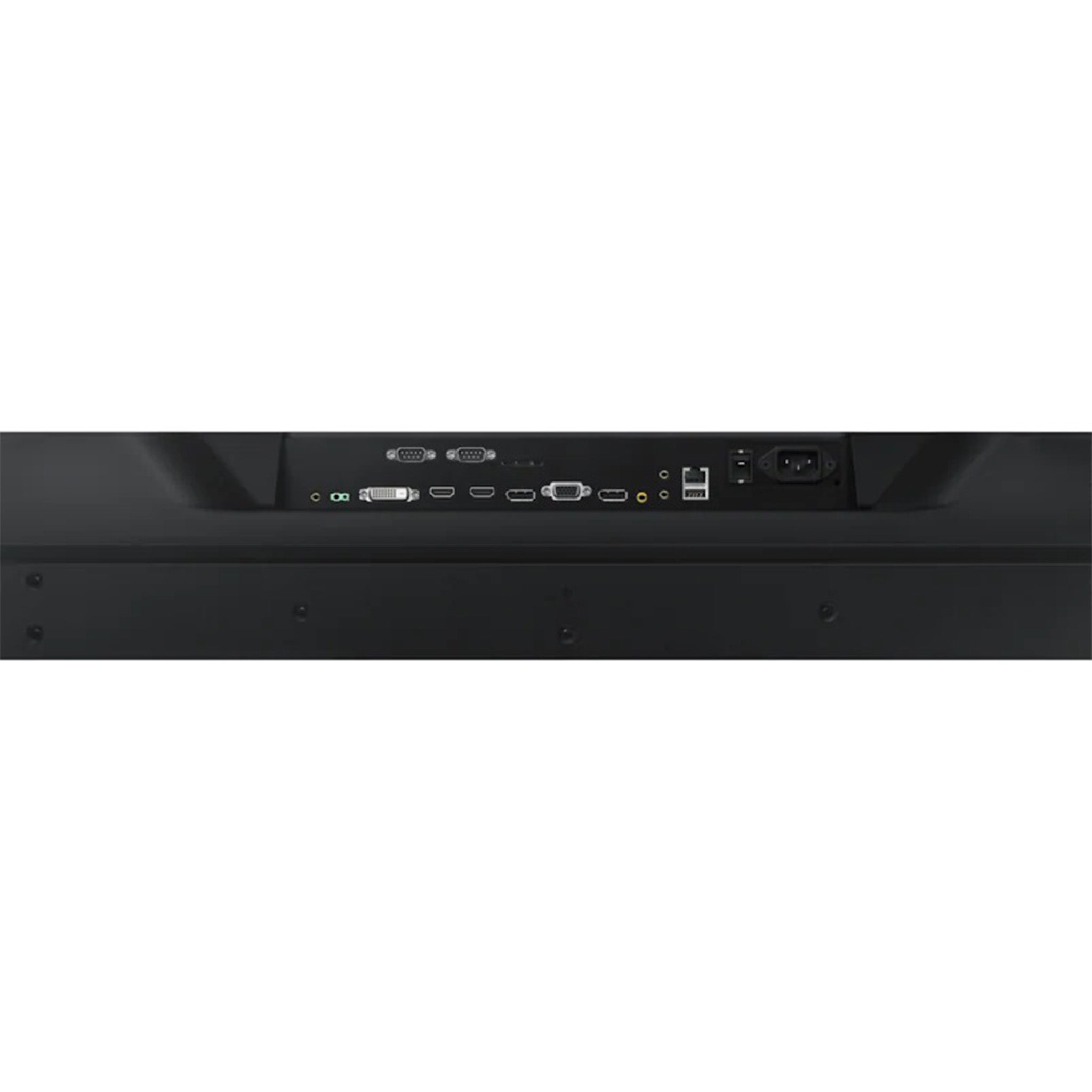

  • Connectivity
    • RGB InAnalog D-SUB, DVI-D, Display Port 1.2
    • RGB OutDP1.2 (Loop-out)
    • Audio InStereo Mini Jack
    • Audio OutStereo Mini Jack
    • Video InHDMI1, HDMI2, Component (CVBS Common)
  • Power
    • Power SupplyAC 100 - 240 V ~ (+ / - 10 %), 50 / 60 Hz
    • Power Consumption (Off Mode)less than 0.5W (KR,EN) / less than 0.3W (NA)
    • Power Consumption (On Mode)Max : 385W, Typical : 216W (KR,EN) / 217W (NA), BTU(Max) : 1312.85W
    • Power Consumption (Sleep Mode)less than 0.5W (KR,EN) / less than 0.3W (NA)
  • Operation Conditions
    • Temperature0~30 (Direct Sunlight), 0~50 (w/o Direct Sunlight)
    • Humidity10 ~ 80%
  • Dimension
    • Set Dimension (WxHxD)1035.9 x 590.5 x 139 mm
    • Package Dimension (WxHxD)1123 x 686 x 236 mm
  • Weight
    • Set Weight with Stand18.7 kg
    • Package Weight22.6 kg
  • Mechanical Specification
    • VESA Mount600 x 400 mm
    • Bezel Width9.3 (Top) / 6.5 (Bottom) / 7.8 (Left / Right) mm
    • Media Player Option TypeEmbedded, SIM (Slide in Module )
  • General Feature
    • SpecialPlug and Play, MagicInfo S2, Slide in Module, Digital Daisy Chains (100 ea), Built in Speakers, Lamp Error Detection, Anti Image Retention, Temperature Sensor, RS232C / RJ45 MDC, PIP / PBP, Video Wall (10 x 10), Portrait Installation Support, Button Lock, Smart Scheduling, Wi-Fi Embedded, Sunglasses Viewable
    • SpeakerBuilt in Speaker (10 W + 10 W)
  • Optional Feature
    • Protection GlassN/A
  • Internal Player (MagicInfo)
    • MagicInfo SupportYes
  • Eco
    • Energy Efficiency ClassD
  • Certification and Compliance
    • SafetyUL (USA) : UL 60950-1, CSA (Canada) : CSA C22.2 No. 60950-1, TUV (Germany) : EN60950-1, NEMKO (Norway) : EN60950-1, KC (Korea) : K60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore) : IEC60950-1, GOST (Russia) : IEC60950-1, EN55022, SIQ (Slovenia) : IEC60950-1, EN55022, PCBC (Poland) : IEC60590-1, EN55022, NOM (Mexico) : NOM-019-SCFI-1998, IRAM (Argentina) : IEC60950-1, SASO (Saudi Arabia) : IEC60950-1
    • EMCFCC (USA) : Part 15, Subpart B Class A, CE (Europe) : EN55022, EN55024, VCCI (Japan) : V-3 (CISPR22), KCC (Korea) : KN22, KN24, BSMI (Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS / NZS3548 (CISPR22), CCC (China) : GB9254-2008, GB17625.1-2012
  • Accessory
    • IncludedExternal IR / Brightness Sensor, Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries



Specification
55"
  • Display
    • Diagonal Size55"
    • Panel TypeS-VA
    • Resolution1920 x 1080 (16:9)
    • Active Display Size (HxV)1209.6 (H) x 680.4 (V)
    • Brightness (Typical)2500 cd/m²
    • Contrast Ratio5000:1
    • Viewing Angle (Horizontal/Vertical)178 / 178
    • Response Time6 ms
    • Display Colour8 bit - 16.7 M
    • Colour Gamut72%
    • H-Scanning Frequency30 ~ 81 kHZ
    • Maximum Pixel Frequency148.5 Mhz
    • V-Scanning Frequency48 ~ 75 Hz
  • Connectivity
    • RGB InAnalog D-SUB, DVI-D, Display Port 1.2
    • RGB OutDP1.2 (Loop-out)
    • Audio InStereo Mini Jack
    • Audio OutStereo Mini Jack
    • Video InHDMI1, HDMI2, Component (CVBS Common)
  • Power
    • Power SupplyAC 100 - 240 V~ (+/- 10%), 50 / 60 Hz
    • Power Consumption (Off Mode)less than 0.5W (KR,EN) / less than 0.3W (NA)
    • Power Consumption (On Mode)Max:495W, Typical:297W (KR,EN) / 296W (NA), BTU(Max):1687.95W
    • Power Consumption (Sleep Mode)less than 0.5W (KR,EN) / less than 0.3W (NA)
  • Operation Conditions
    • Temperature0~30 (Direct Sunlight), 0~50 (w/o Direct Sunlight)
    • Humidity10 ~ 80%
  • Dimension
    • Set Dimension (WxHxD)1227.4 x 698.2 x 139.5 mm
    • Package Dimension (WxHxD)1335 x 808 x 265 mm
  • Weight
    • Set Weight with Stand24 kg
    • Package Weight29.5 kg
  • Mechanical Specification
    • VESA Mount600 x 400 mm
    • Bezel Width9.3 (Top) / 6.5 (Bottom) / 7.8 (Left / Right) mm
    • Media Player Option TypeEmbedded, SIM (Slide in Module)
  • General Feature
    • SpecialPlug and Play, MagicInfo S2, Slide in Module, Digital Daisy Chains (100 ea), Built in Speakers, Lamp Error Detection, Anti Image Retention, Temperature Sensor, RS232C / RJ45 MDC, PIP / PBP, Video Wall (10 x 10), Portrait Installation Support, Button Lock, Smart Scheduling, Wi-Fi Embedded, Sunglasses Viewable
    • SpeakerBuilt in Speaker (10 W + 10 W)
  • Optional Feature
    • Protection GlassN/A
  • Internal Player (MagicInfo)
    • MagicInfo SupportYes
  • Eco
    • Energy Efficiency ClassD
  • Certification and Compliance
    • SafetyUL (USA) : UL 60950-1, CSA (Canada) : CSA C22.2 No. 60950-1, TUV (Germany) : EN60950-1, NEMKO (Norway) : EN60950-1, KC (Korea) : K60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore) : IEC60950-1, GOST (Russia) : IEC60950-1, EN55022, SIQ (Slovenia) : IEC60950-1, EN55022, PCBC (Poland) : IEC60590-1, EN55022, NOM (Mexico) : NOM-019-SCFI-1998, IRAM (Argentina) : IEC60950-1, SASO (Saudi Arabia) : IEC60950-1
    • EMCFCC (USA) : Part 15, Subpart B Class A, CE (Europe) : EN55022, EN55024, VCCI (Japan) : V-3 (CISPR22), KCC (Korea) : KN22, KN24, BSMI (Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS / NZS3548 (CISPR22), CCC (China) : GB9254-2008, GB17625.1-2012
  • Accessory
    • IncludedExternal IR / Brightness Sensor, Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries
