High Brightness Transparent LED - 5500 cd/㎡ - 55.77"
Ankstesnis produktas Kitas produktas€0.00
Turime daug
Standardized cabinet for flexible installation, multi-screen seamless splicing with light and thin design, and convenient for quick installation. Permeability-oriented material selection and design, no influence on the original building appearance. Brightness customizable on the basis...

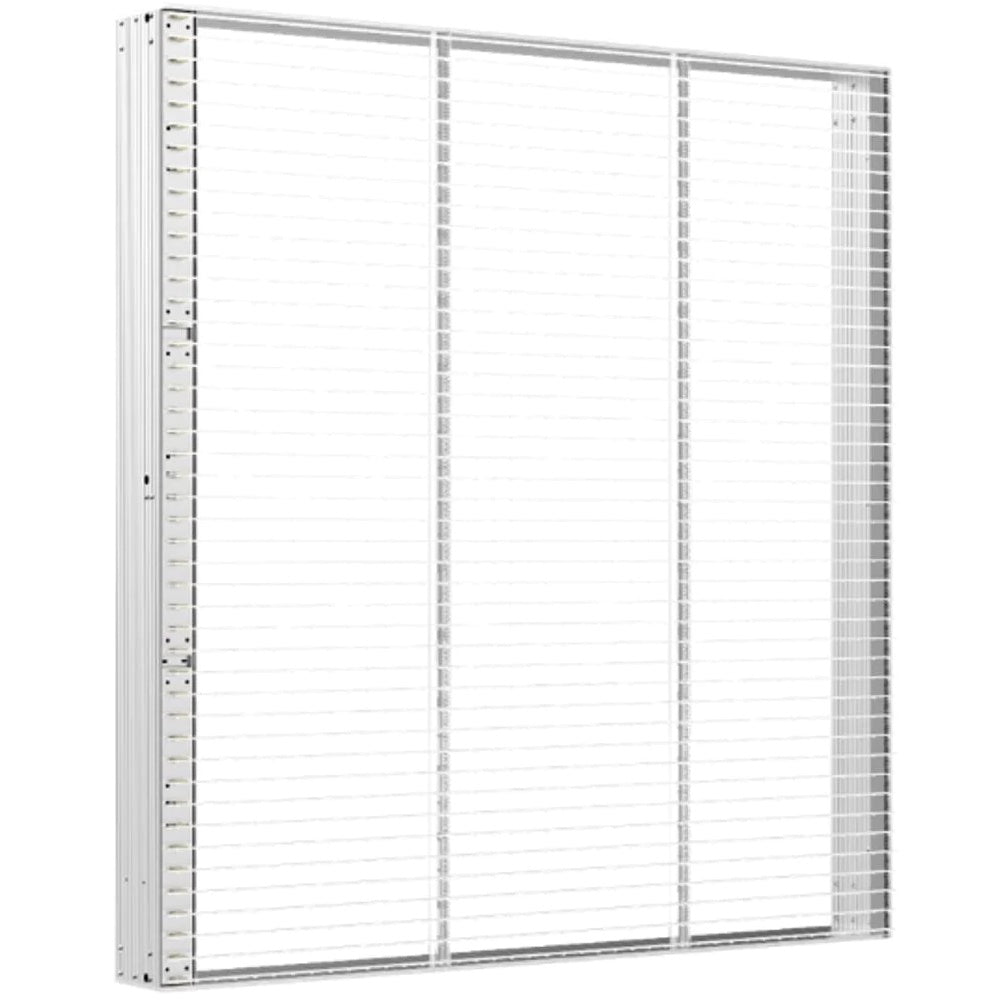

- Standardized cabinet for flexible installation, multi-screen seamless splicing with light and thin design, and convenient for quick installation.
- Permeability-oriented material selection and design, no influence on the original building appearance.
- Brightness customizable on the basis of specific scenarios, ensuring the display effects even under the highlight indoor or the direct sunlight outdoor.
- Runs silently with lower heat and effective heat dissipation.
Cabinet
- Pixel Configuration1R1G1B
- Pixel PitchHorizontal: 3.9 mm, Vertical: 7.8 mm
- Dimensions (W × H × D)Different dimensions for flexible splicing: 1 m × 1 m, 1 m × 0.75 m, 0.75 m × 1 m, 0.75 m × 0.75 m, 1 m × 1.25 m, 1.25 m × 1 m
- Weight15 kg/㎡
- Pixel Density32768 dot/㎡
- Cabinet MaterialAluminum alloy
- Protection LevelIP43
- White Balance BrightnessTypical：5000 nits（5500nits Peak）
- Color Temperature2000K to 10000K adjustable
- Viewing Angle120° (H)/120° (V)
- Brightness Uniformity≥ 98%
- Color Uniformity±0.001 Cx, Cy
- Contrast Ratio≥ 3000:1
- Transmittance60%
- Display Color281.4 trillion
- Brightness ControlManual/Auto
- Driving MethodConstant current driving 1/4 scan
- Frame Frequency60 Hz
- Refresh Rate≥ 1920 Hz
- Grey Level65536 Level
- Processing Depth16 bits
- Max. Consumption800 W/㎡
- Average Consumption300 W/㎡
- Input Voltage110 to 220 VAC ± 15%
- Working Temperature-10 ℃ to 65 ℃ (14 ℉ to 149 ℉)
- Working Humidity10% to 90%
- Storage Temperature-20 ℃ to 90 ℃ (-4 ℉ to 194 ℉)
- Storage Humidity10% to 90%
