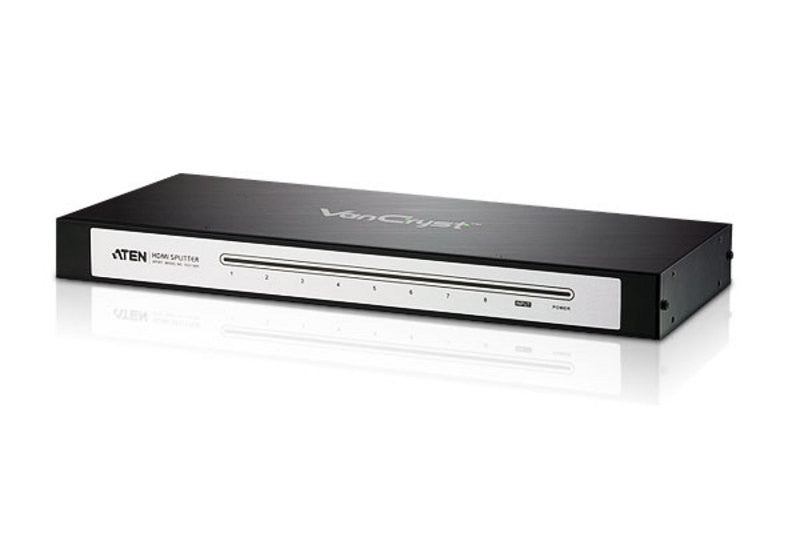

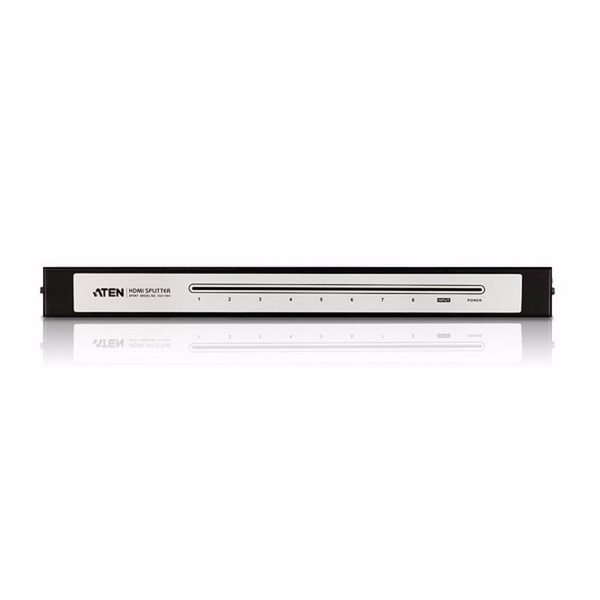

Aten VS0108H 8-Port HDMI Splitter

€358.99

10 Prekyboje

The VS0108H HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to eight HDMI displays at the same time. It supports all HDMI-enabled equipment, such...

The VS0108H HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to eight HDMI displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays. The VS0108H HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

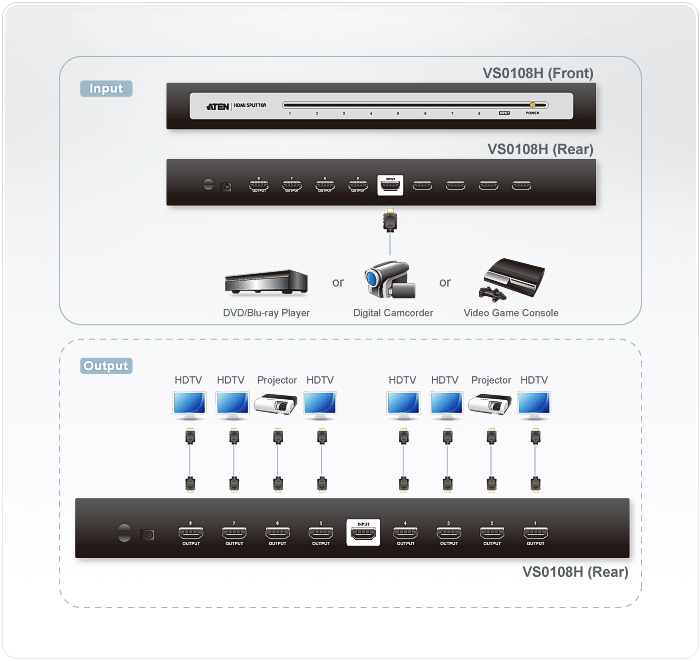

  • Connects one HDMI video source to 8 HDMI displays at the same time
  • Cascadable to three levels
  • Supports Dolby True HD and DTS HD Master Audio
  • Up to 60 Hz refresh rate
  • Long distance transmission - 20 m (24 AWG)
  • Superior video quality - HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080); VGA, SVGA, SXGA, UXGA and WUXGA (1920x1200)
  • HDMI (Deep Color)
  • DDC Compatible
  • HDCP 1.1 compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • Signaling rates up to 2.25 Gbits in support of 1080p display
  • Rack Mountable



Display Connections
Direct 8
Maximum 512 (via cascade)
Connectors
Device 1 x HDMI Type A Female (Black)

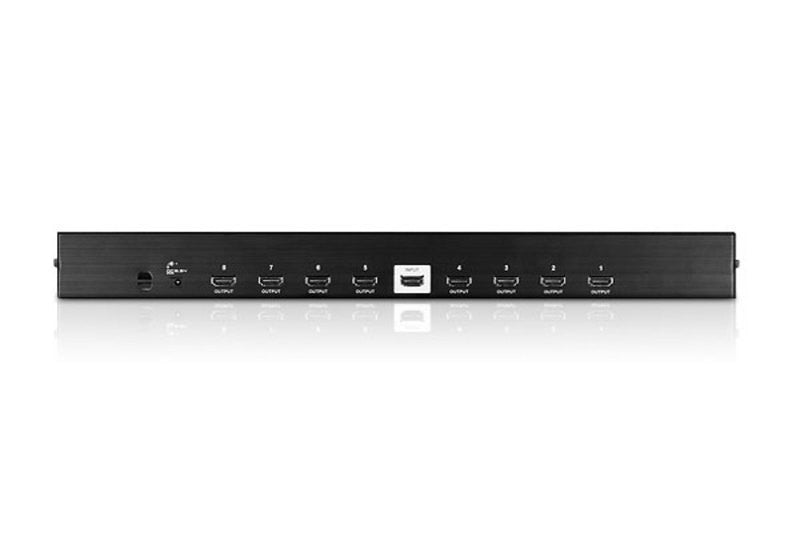

Display 8 x HDMI Type A Female (Black)
Power Jack 1 x DC Jack
LEDs
Power 1 (Orange)
Input 1 (Green)
Output 1-8 8 (Green)
Video HDTV up to 1080p;
Computer up to WUXGA (1920x1200)
Power Consumption DC5.3V,9.5W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 1.74 kg
Dimensions (L x W x H) 43.20 x 15.40 x 4.4 cm
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.



Daugiau informacijos

Gamintojas Aten
Garantija 2 metai
Pristatymo laikas 2 savaitės
Kilmės šalis Jungtinės Valstijos
Svoris (kg) 0.2000
