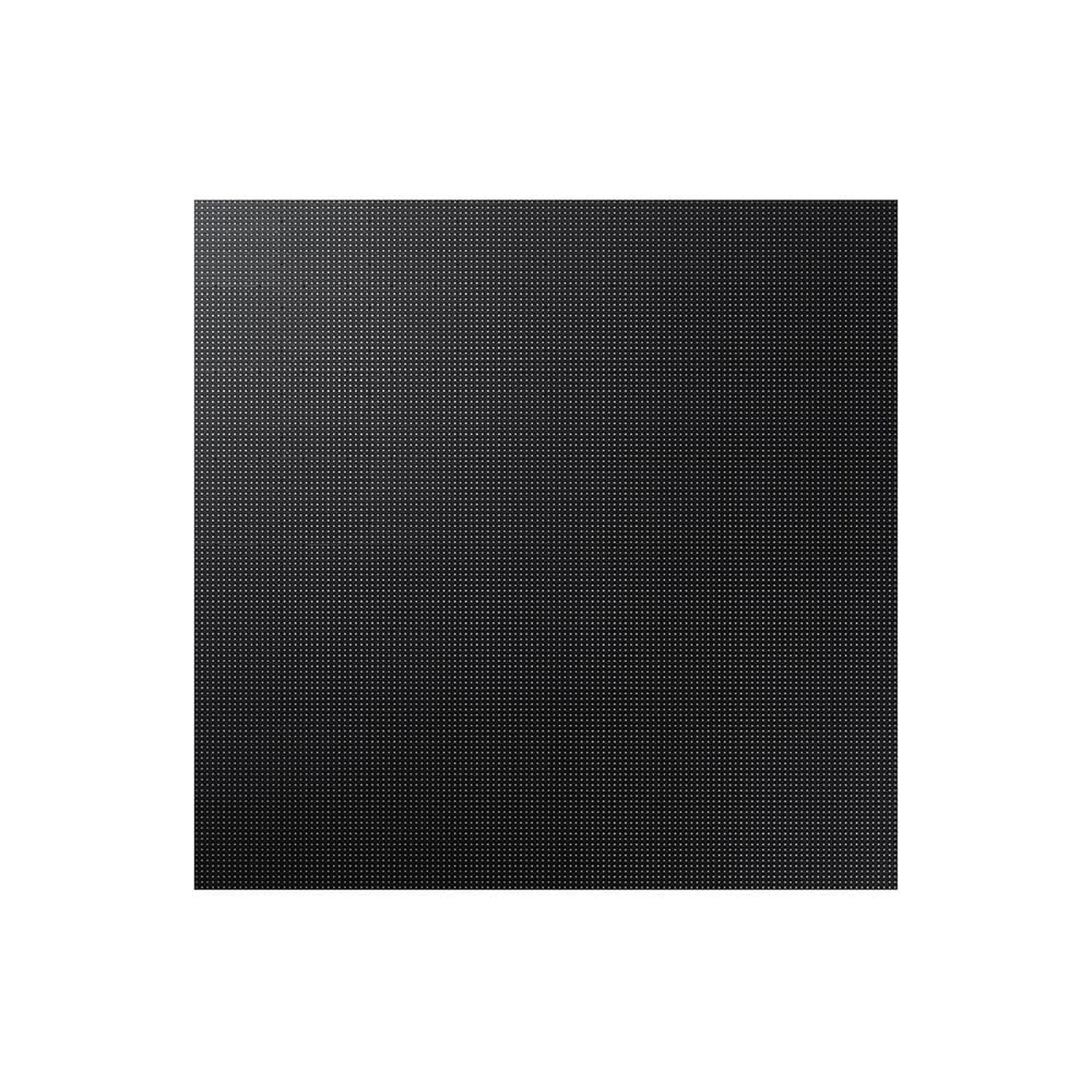

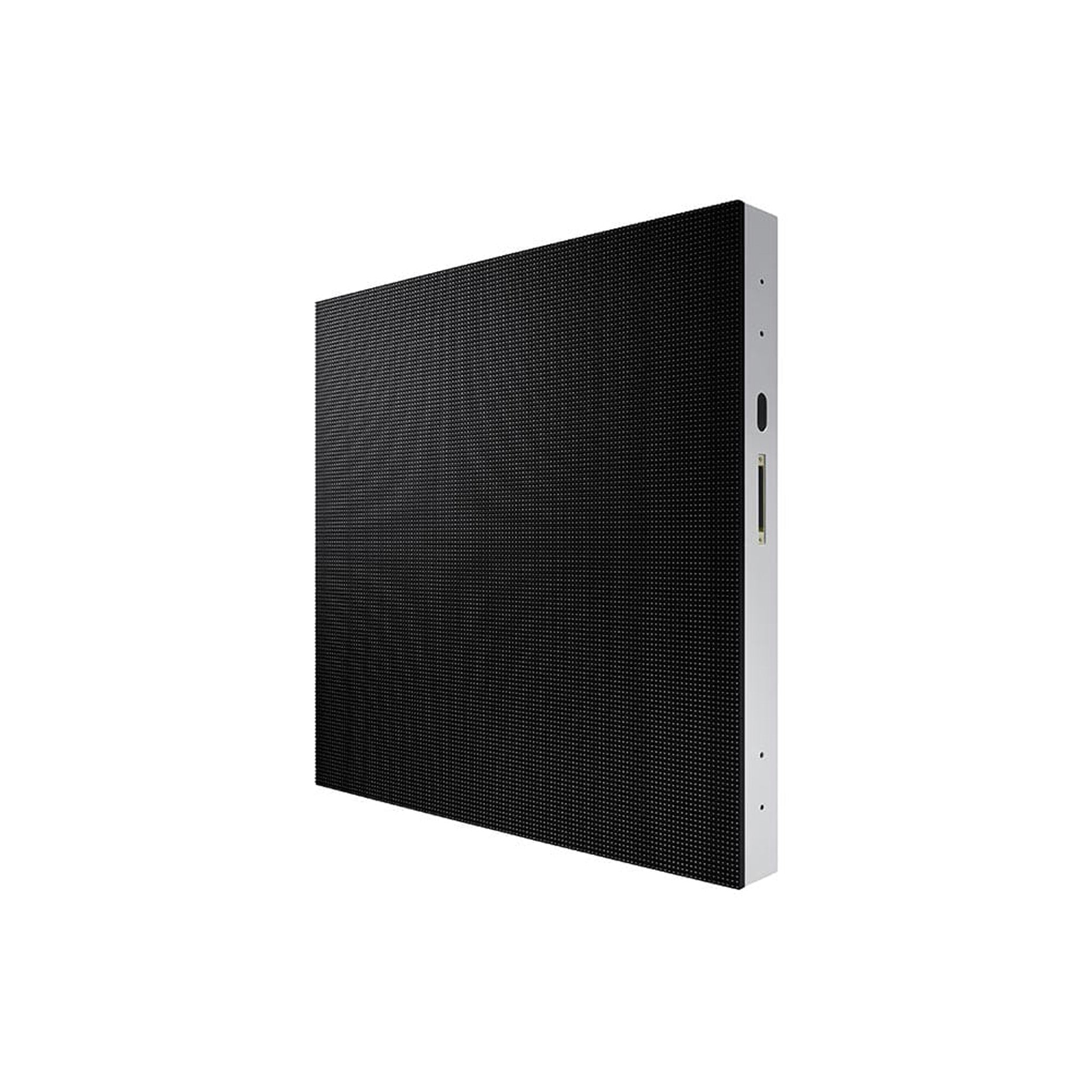

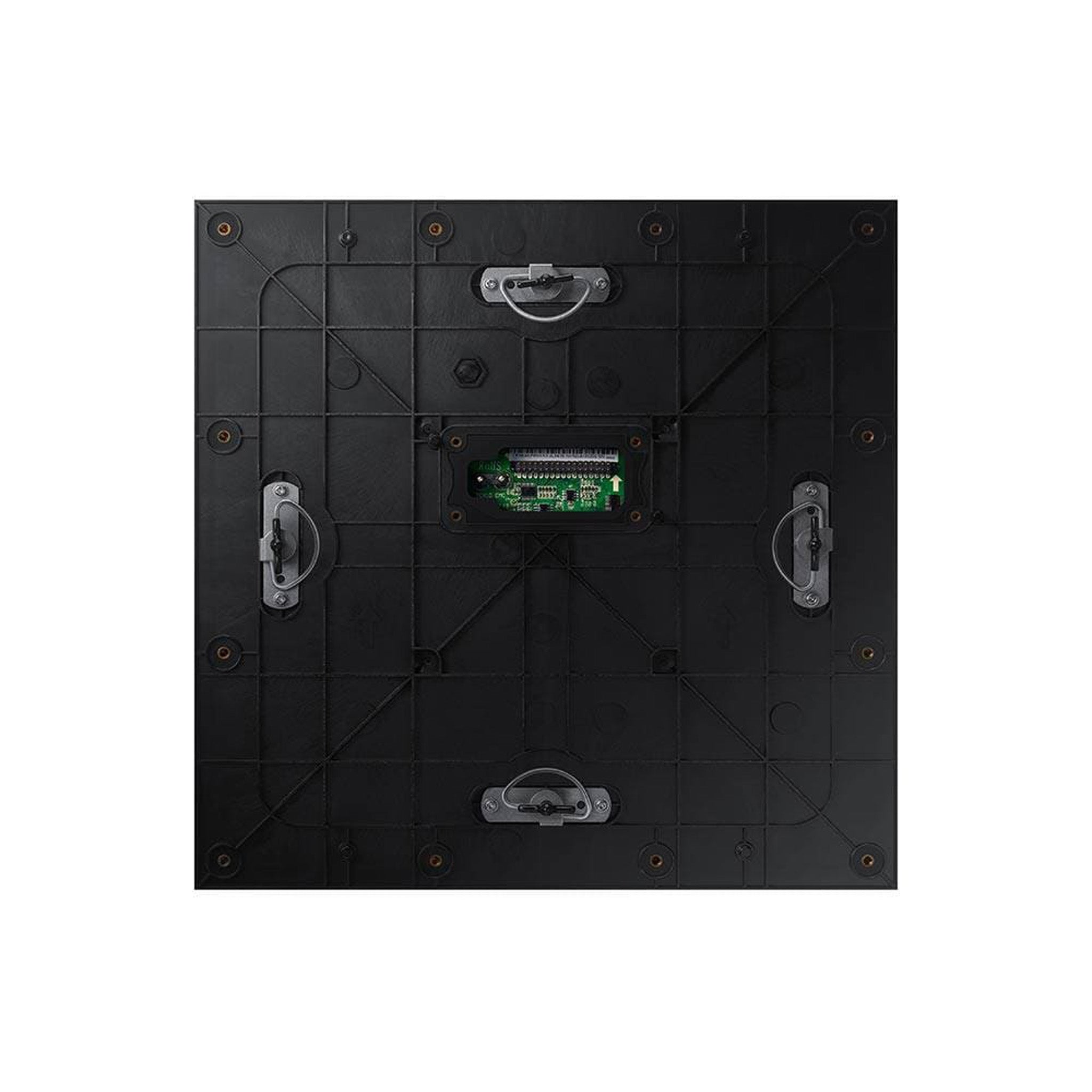

SAMSUNG OUTDOOR LED MODULE - XA10T - Pixel Pitch 10

€0.00

Specialus užsakymas

Features Impact Outdoor Audiences As constant change requires businesses to create inviting, innovative environments to attract customers, Samsung’s XAT Series complements these needs with vibrant content and an enhanced, outdoor-friendly design to deliver captivating and...
Kontaktai
Features

Impact Outdoor Audiences

As constant change requires businesses to create inviting, innovative environments to attract customers, Samsung’s XAT Series complements these needs with vibrant content and an enhanced, outdoor-friendly design to deliver captivating and meaningful messaging in any outdoor environment.

Impact Outdoor Audiences

Clear, Consistent Picture

Regardless of weather or lighting, the XAT Series delivers content at optimal visibility and uniformity. These displays can stream videos without distortion or interruption through a high refresh rate and deter light interference by maintaining a uniform high brightness at all times.

Clear, Consistent Picture

Environmentally Stable Design

The XAT Series undergo strict testing to ensure ongoing performance when exposed to water, dust and outdoor elements. Ingress Protection (IP) validation confirms defense for the front (IP65) and back (IP45) of the display, ensuring continuous operation regardless of the environment.

Environmentally Stable Design

Durable, Reliable Outdoor Alternative

The XAT Series is subject to environmental tests including exposure to high temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.

Durable, Reliable Outdoor Alternative

Lightweight, Resistant Design

A durable, lightweight aluminum cabinet with white coating allows the XAT to remain rust free and maintain lower temperatures under direct sunlight. The enlarged area of each cabinet also saves installation time.

Lightweight, Resistant Design

Effortless Set-Up and Maintenance

Front and rear service capability allows for space-saving installation and easy maintenance. For added convenience, the simple, more stable one-touch cable saves time during installation, while the smart module function allows for quick access to original calibration data for faster repairs.

Effortless Set-Up and Maintenance

Screen Stability Monitoring

The ability to remotely monitor the display’s real-time status, including temperature, humidity, smoke, open cabinet door and more, allows users to easily prevent and troubleshoot errors.

Screen Stability Monitoring

Specs

Physical Parameter

    • Pixel Pitch10.0 mm
    • Pixel ConfigurationSMD 3-in-1
    • Pixel Density10,000 ㎡ / 929 ft2 / 9,953 per panel
    • Configuration (LxH, per cabinet) 96 x 96 pixels
    • Diode TypeSMD3535
    • Diode Density30,000 m² / 2,787 ft²
    • Dimensions (LxH) 960 x 960 x 125(per cabinet)
    • Physical Resolution of Panel (W × H) 96 x 96
    • Dimensions (mm, LxH, per module)320 x 320
    • No. of Modules Per Panel (W × H)3 x 3
    • Physical Resolution of Module (W × H)32 x 32
    • Weight 35 kg
    • Cabinet ConstructionAluminum

    Optical Parameter

    • Viewing angle - Horizontal140°
    • Contrast Ratio3,000:1
    • Brightness (After Calibration)6,300 nit
    • Viewing angle - Vertical100°
    • Bit Depth12-16bit
    • Number of colors4.4 trillion colors
    • Color Temperature - Default6,500K (+/- 500K)
    • Color temperature - Adjustable2,800 to 16,000K

    Electrical Parameter

      • Cabinet - Input Power Range100~120V VAC, 50/60 Hz or 200~240V VAC, 50/60 Hz
      • Cabinet Fan - Input Power Range100~120 VAC 60Hz or 200~240 VAC 50Hz
      • Power consumption - 780 (W/㎡)
      • Power consumption - Typical280 W/m²
      • Refresh rate≥2000 Hz

    Operation Conditions

      • Working Temperature / Humidity-30°C to 50°C / 10~90%
      • Storage Temperature / Humidity-30°C to 60°C / 10~90%
      • Cooling 2 pcs fans per cabinet
      • IP Rating (Front/Rear)IP65 / IP45
      • LED Lifetime100,000 hours to half brightness
      • Monitoring Function Cabinet temperature
        Receiving card status

      Certification

      • Certification EMC Class A, Safety 60950-1, CE, CB, UL, CCC, FCC, KC, BIS, EAC

      Service

      • ServiceFront and Rear Service

        Storage Conditions

        • Storage Temperature-30°C to 60°C
        • Stacking LimitShall not be vertically stacked beyond 2 Boxes
        Special Installation
        • Curve (Concave)No specification limits
        • Curve (Convex)2º (16500R)
