Logitech Rally Plus Vaizdo konferencijų sistema

€2,699.00

Specialus užsakymas

Premium Ultra-HD ConferenceCam system with automatic camera control RightSense™ technology automates a better user experience Modular audio for full coverage of medium to very large rooms Premium components and sleek industrial design ALL TOGETHER NOW Logitech...

Premium Ultra-HD ConferenceCam system with automatic camera control

  • RightSense technology automates a better user experience
  • Modular audio for full coverage of medium to very large rooms
  • Premium components and sleek industrial design

ALL TOGETHER NOW

Logitech Rally delivers studio-quality video, unmatched voice clarity, and RightSense® automation for better meetings with video conferencing applications that work with USB devices, including Google Hangouts Meet, Microsoft Skype® for Business, Microsoft Teams, and Zoom. With modular audio, thoughtful cable management and premium finishes, Rally integrates beautifully into medium and larger rooms.

KEY FEATURES

STUDIO-QUALITY VIDEO
With an Ultra-HD imaging system, Rally delivers brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K. Logitech RightLighttechnology optimizes light balance to emphasize faces and render natural-looking skin tones, even in dim or backlit conditions.

ADVANCED MODULAR AUDIO

Crystal-clear audio is essential for world-class video conferencing, and Rally excels in delivering sound that’s natural, crisp, and highly intelligible. Logitech RightSound™ enhances voice clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers. Exquisitely sensitive mic pods ensure that everyone in the meeting can be clearly heard while stand-alone speakers fill larger rooms with rich, life-like sound.

SLEEK INDUSTRIAL DESIGN

Every component in the Rally system features premium industrial design suitable for any professional setting. Even as Rally helps everyone look and sound great during video meetings, each part of the system looks great in its own right. The premium PTZ camera at the core of the system is elegantly finished in matte black with slate gray metal trim, complemented by sleekly designed audio components and accessories that look great in any room.

ENHANCED USER EXPERIENCE

Logitech RightSense is a suite of technologies built into Rally that automate a better user experience. RightSight perfectly auto-frames participants no matter their distance from the lens. RightLight prioritizes faces over environment to render natural-looking skin tones while RightSound™ enhances vocal clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers to support better meetings —automatically!



SMART CABLING AND CONTENT SHARING

With a Display Hub and Table Hub to keep cables neat and organized, Rally components and the meeting computer remain securely out of sight. Connected by a single CAT6 cable, both hubs feature a full complement of connections so you can locate the meeting computer near the display or at the table. An HDMI input on the Table Hub eliminates the need for extra-cost cable extenders and makes wired content sharing easy.

DIMENSIONS

Rally Camera



Rally Speaker

  • Height x Width x Depth:
  • 103 mm x 449 mm x 80 mm



Rally Mic Pod

  • Height x Width x Depth:
  • 21 mm x 102 mm x 102 mm



Rally Display Hub

  • Height x Width x Depth:
  • 40 mm x 206 mm x 179 mm



Rally Table Hub

  • Height x Width x Depth:
  • 40 mm x 176 mm x 138 mm
SYSTEM REQUIREMENTS

Operating Systems

    • Windows® 7, Windows 8.1 or Windows 10
    • macOS 10.10 or higher

Chrome OS

Resolutions higher than 1080p

    • Windows 8.1 or higher or macOS 10.10 or higher
    • USB 3.0 port and Type C cable
    • Compatible software
RIGHTSENSE TECHNOLOGIES

RightLight with WDR

  • Low-light compensation
    Video noise reduction
    Low-light saturation optimization
    Renders natural skin tones for each participant on camera
    Reduces backlighting and glare without darkening the entire image.

RightSight1

  • Human figure detection
    Auto-frame participants at meeting start
    Auto-frame participants on-demand
    Auto-reframe participants during meetings 1

RightSound

  • Machine learning AI trained to distinguish human speech from other sounds
    AEC (Acoustic Echo Cancellation)
    VAD (Voice Activity Detector)
    Background noise suppression
    Auto-level loud and soft voices

RightSound Mic Matrix

    • Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
    • Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
    • Beam focus refresh rate: 8ms (125 times/second)

Anti-Vibration Suspension:

    • A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
    • Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

TECHNICAL SPECIFICATIONS

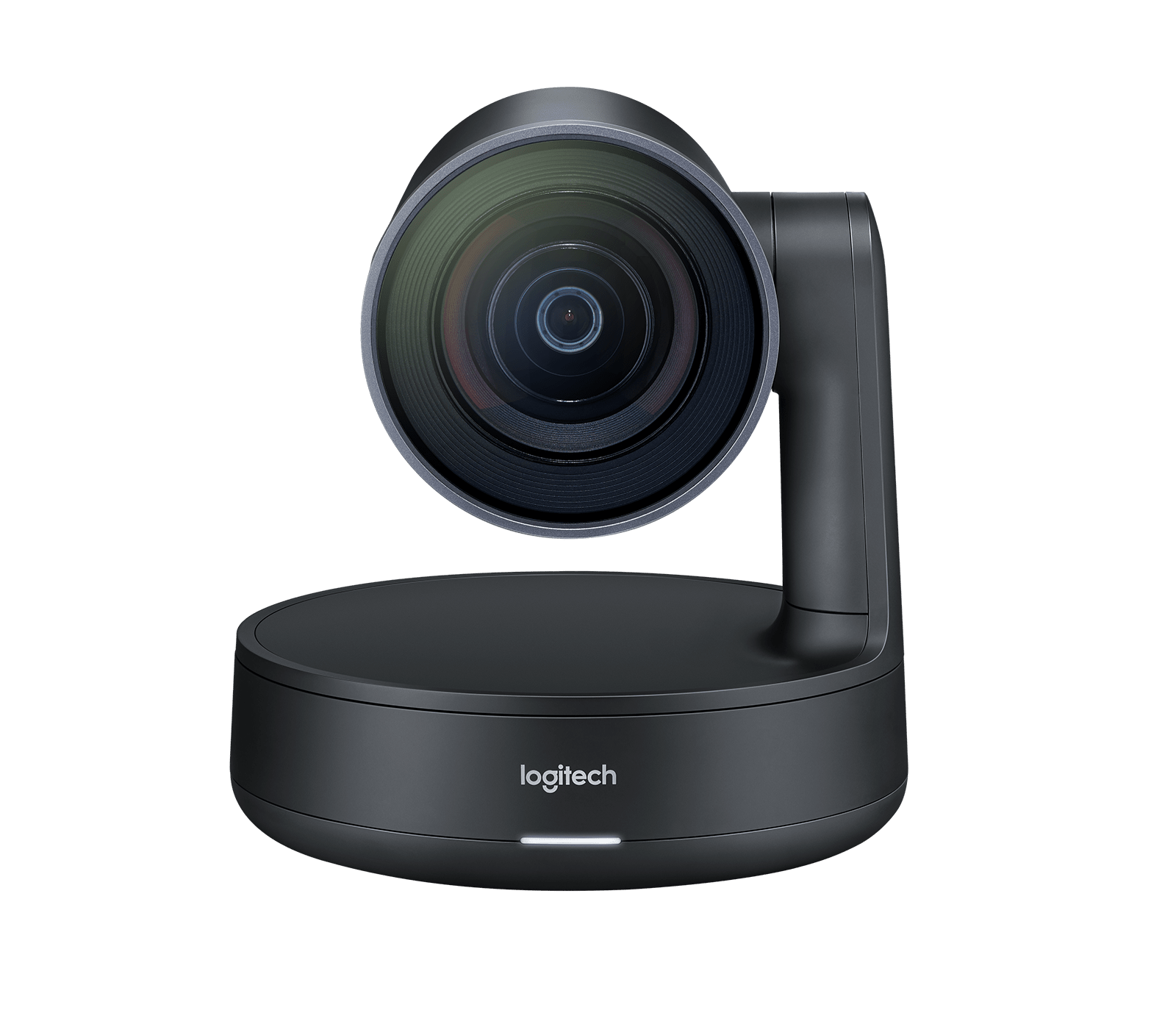

RALLY CAMERA

  • Ultra-HD imaging system supports:
    • 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
    • 1080p, 720p at 30fps and 60 fps
  • Smooth motorized pan, tilt and zoom
  • Pan: ±90°
  • Tilt: +50° / -90°
  • 15x HD zoom
  • Field of View:
    • Diagonal: 90°
    • Horizontal: 82.1°
    • Vertical: 52.2
  • Autofocus
  • 3 camera presets
  • Kensington security slot
  • Video mute/unmute LED indicator
  • Standard tripod thread
  • Lens parks at -90° in sleep mode for assured privacy

RALLY MIC POD

  • Pickup range: 4.5m diameter
    Four omnidirectional microphones forming eight acoustic beams
    AEC (Acoustic Echo Cancellation)
    VAD (Voice Activity Detector)
    Background noise suppression
    Mute button with LED status indicator
    Captive 2.95m 12-pin cable
    Daisy chain up to 7 Rally Mic Pods
    Frequency response: 90Hz – 16kHz
    Sensitivity: >-27dB +/-1dB @ 1Pa
    Microphone data rate: 48 kHz

    Recommended # of participants:
    Rally (one Mic Pod): 10
    Rally Plus (two Mic Pods): 16
    Additional participants per Mic Pod: 6
    Recommended participants for Rally with 7 Mic Pods: 46

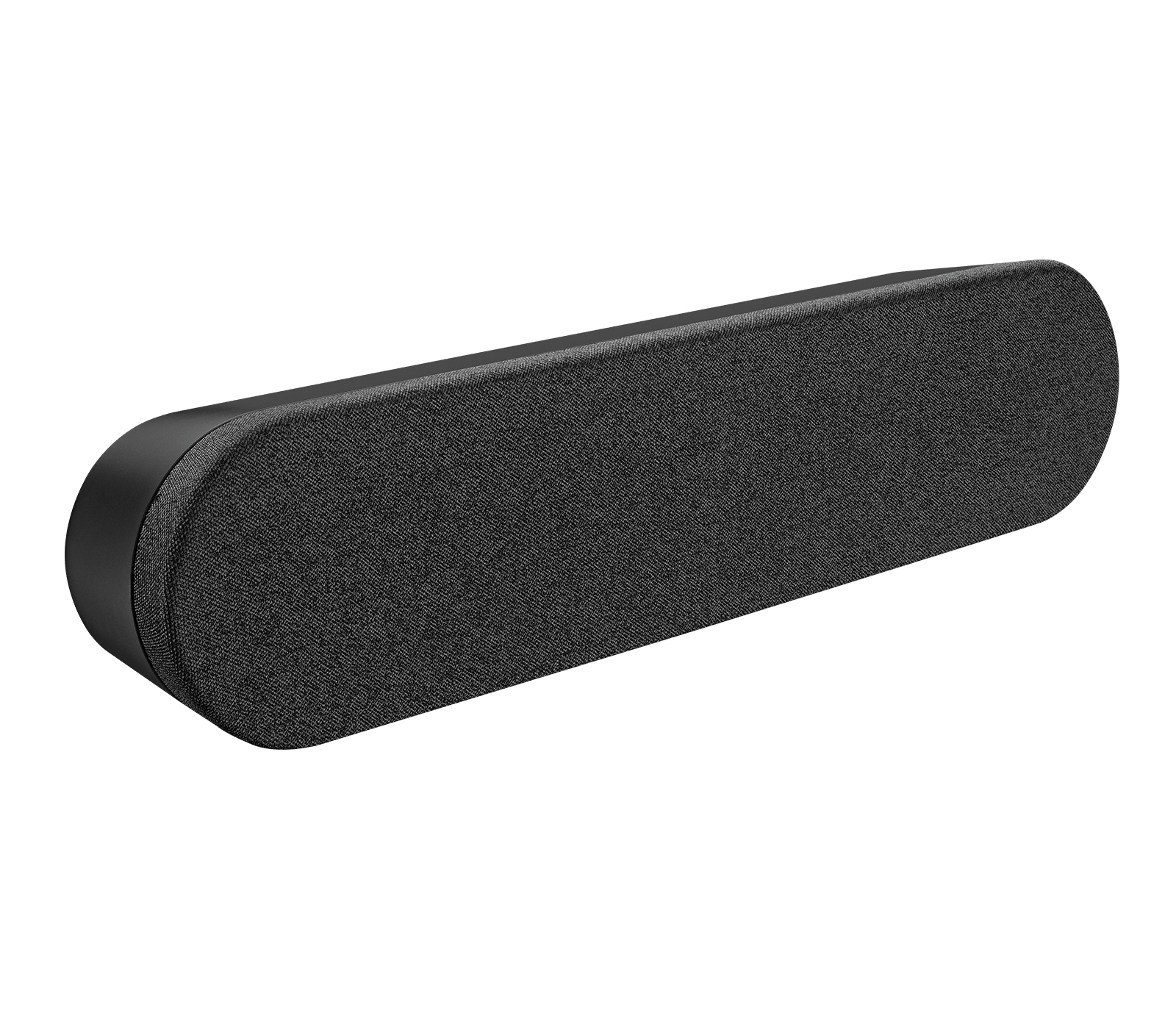

RALLY SPEAKER

  • High-performance 3" (76mm) driver with rare-earth magnet
    Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
    Mini XLR cable connects to Rally Display Hub for both signal and power
    Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
    Sensitivity: 95+/-2dB SPL at ½ meter
    Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W
    Speaker sampling rate: 48 kHz

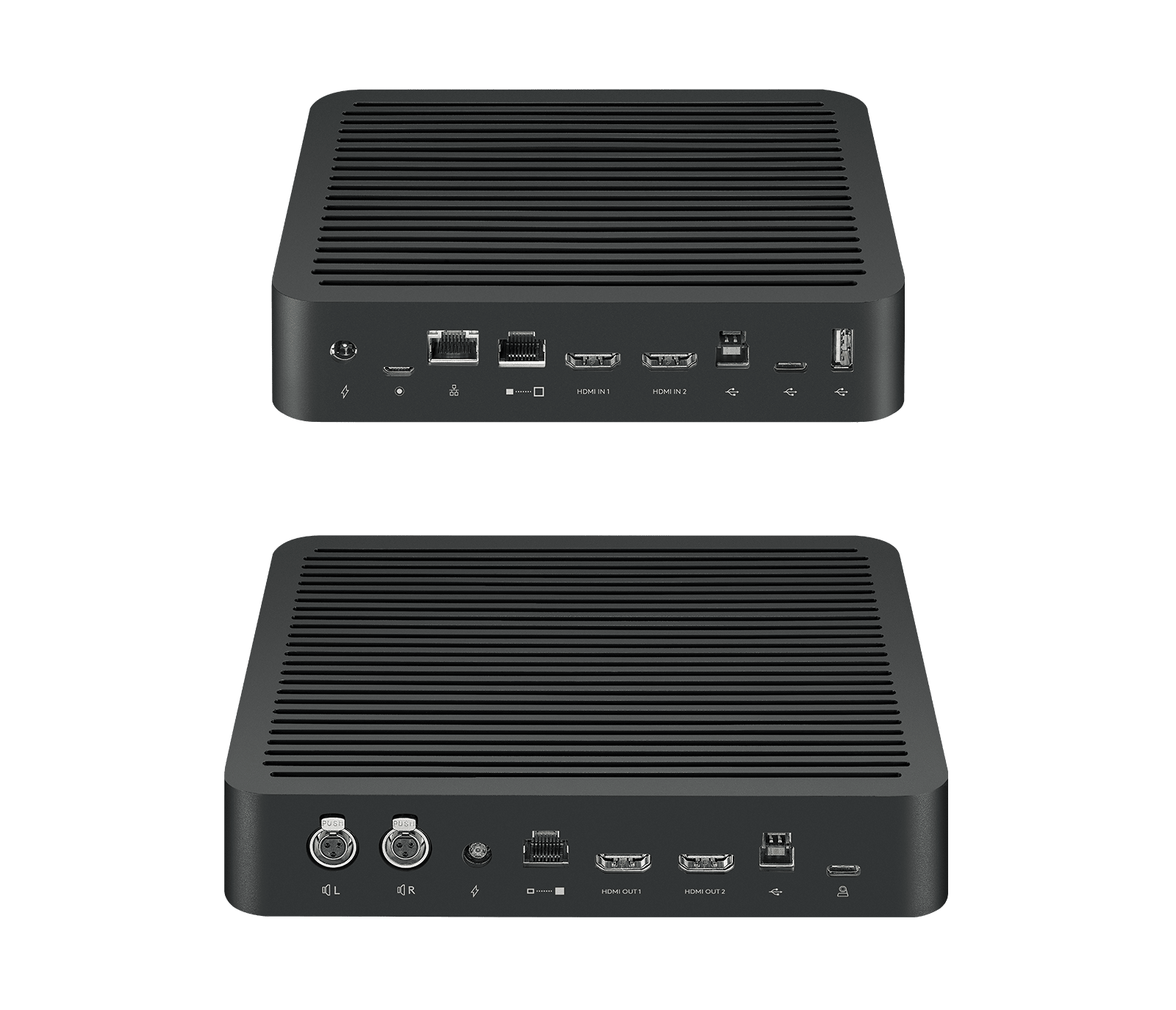

RALLY TABLE HUB

  • Single CAT6A cable connection to Rally Display Hub ( 5m cable included, supports customer-supplied cables up to 50 m)
    Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
    12 Pin connector for Rally Mic Pod
    HDMI Type A passthrough to Display Hub (x2)
    USB Type C
    USB Type A (reserved for future capability)
    USB Type B (connects to meeting room computer)
    RJ45 (reserved for future capability)
    Power input

RALLY DISPLAY HUB

  • HDMI Type A (x2) (connects to displays)
    USB C (connects to Rally Camera)
    USB Type B (connects to meeting room computer)
    RJ45 (connects to Table Hub)
    Mini XLR (x2)
    Powers one or two Rally Speakers
    Power input

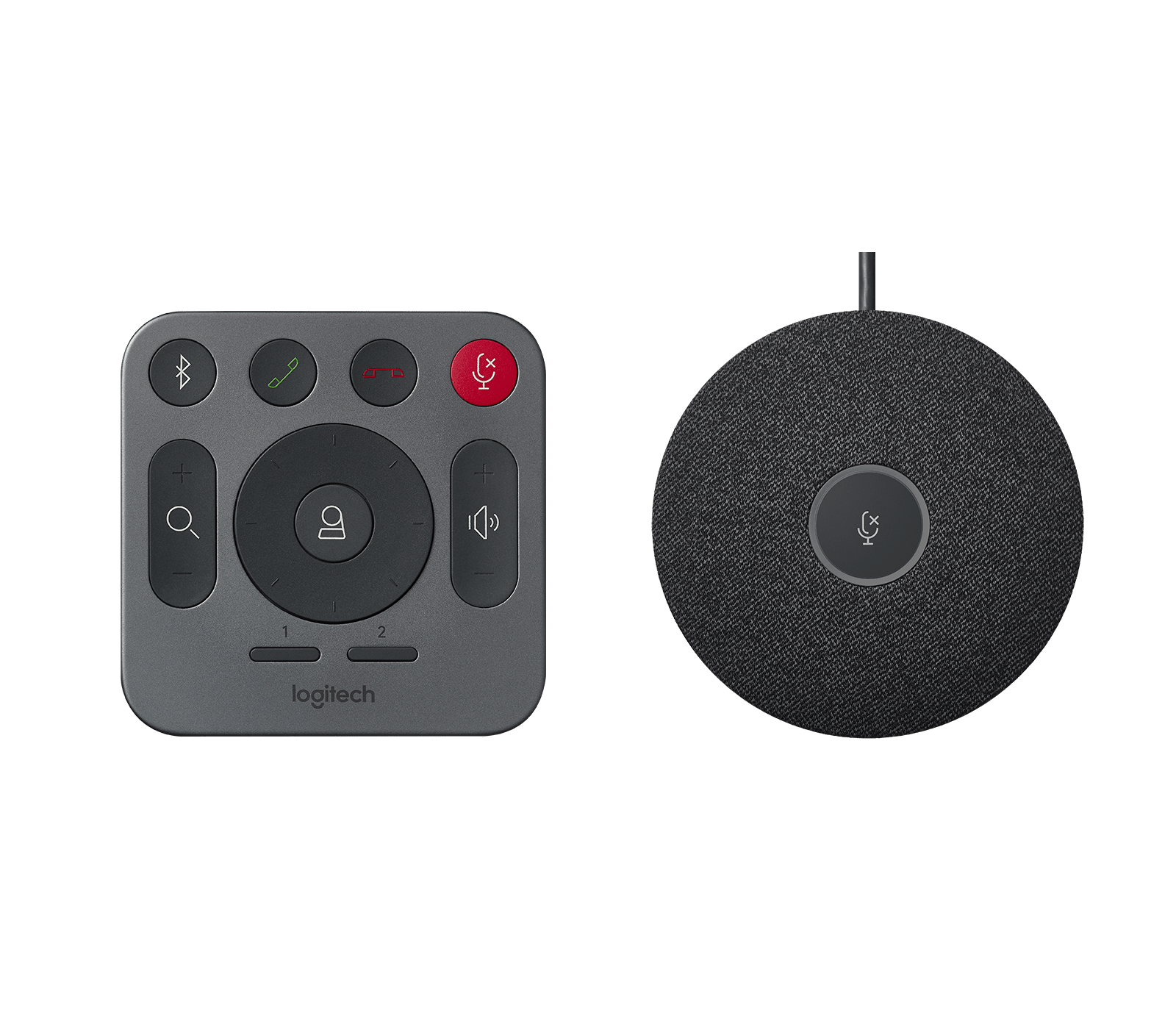

REMOTE CONTROL

  • RF remote control (line of sight not required)
  • CR2032 batteries (included)

CABLES / POWER

  • Camera to Display Hub
    2m USB 3.1 Type C to USB Type C 3.1

    Conference Room Computer to Display or Table Hub
    2m USB 3.1 Type A to USB Type B

    Display Hub to Table Hub
    5m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m

    Display Hub to Speaker (x2)
    2.95m Mini XLR (supports customer-supplied extension cables up to 3m

    Conference Room Computer to Displays (x2)
    2m HDMI A

    Mic Pod
    2.95m: Hardwired with 12 pin connector

    Power Outlets to Power Supplies (x2)
    1m

    Power Supplies to Table Hub / Display Hub (x2)
    1.5m

AVAILABLE ACCESSORIES

  • RALLY MOUNTING KIT
    Rally Mounting Kit with cable retainers (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)

    RALLY MIC POD
    Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms

    RALLY MIC POD HUB
    Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling

    RALLY SPEAKER
    Add a second Rally Speaker for larger rooms

COMPATIBILITY AND CERTIFICATIONS

  • Plug-and-play USB connectivity
  • Certified for Skype for Business and ready for Teams
  • Zoom Certified
  • Fuze Certified
  • Certified for Google Hangouts Meet Hardware
  • Microsoft Cortana® certified
  • Cisco Jabber® and WebEX Compatible
  • Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

PACKAGE CONTENTS

  • Logitech Rally
    Rally Camera
    Rally Display Hub
    Rally Table Hub
    Rally Speaker (x1)
    Rally Mic Pod (x1)
    Remote control
    USB Type C to USB Type C
    USB Type A to USB Type B
    CAT6A Ethernet cable
    HDMI Type A (x2)
    A/C cables (x2)
    Power Supplies (x2)
    Documentation

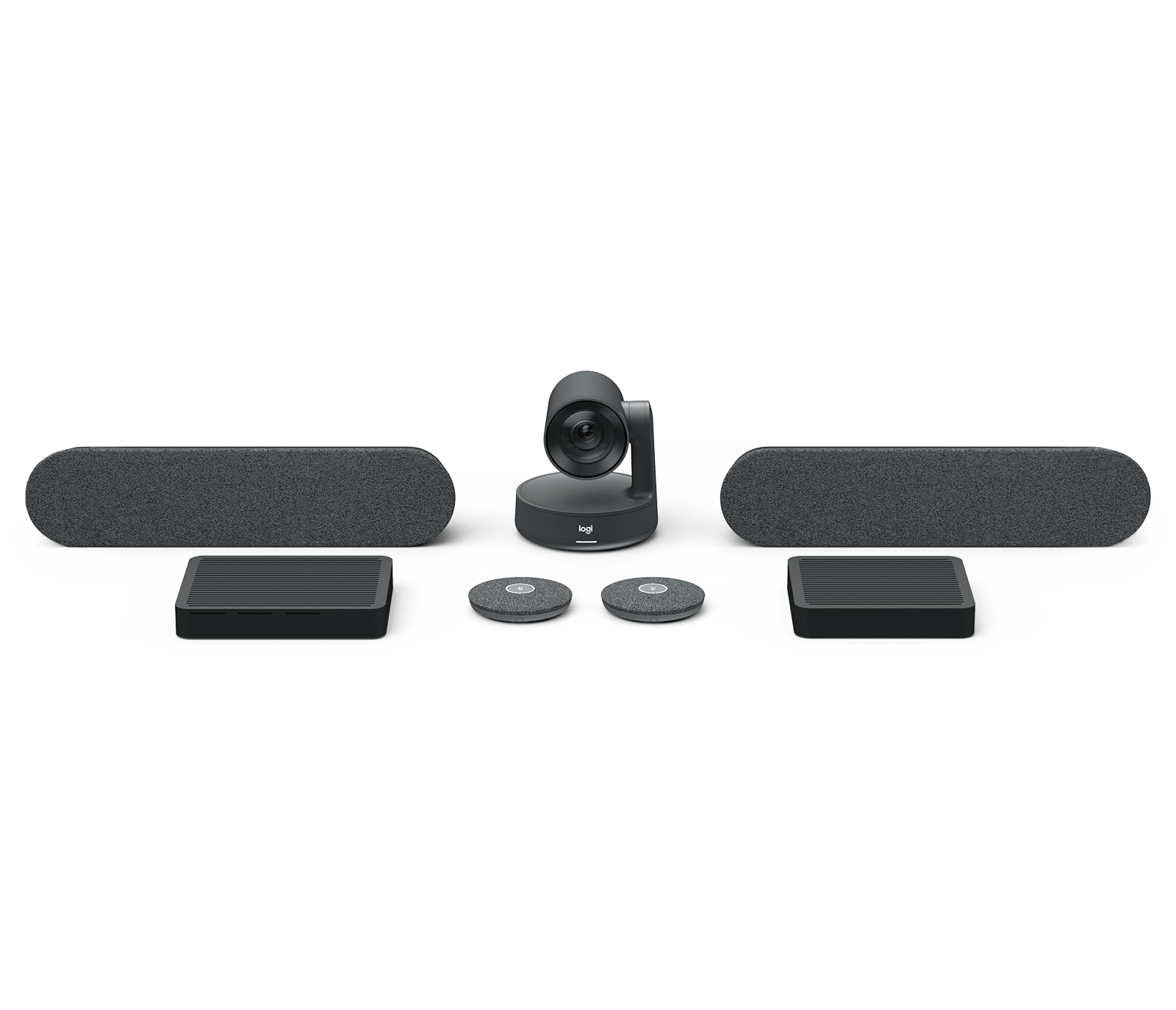

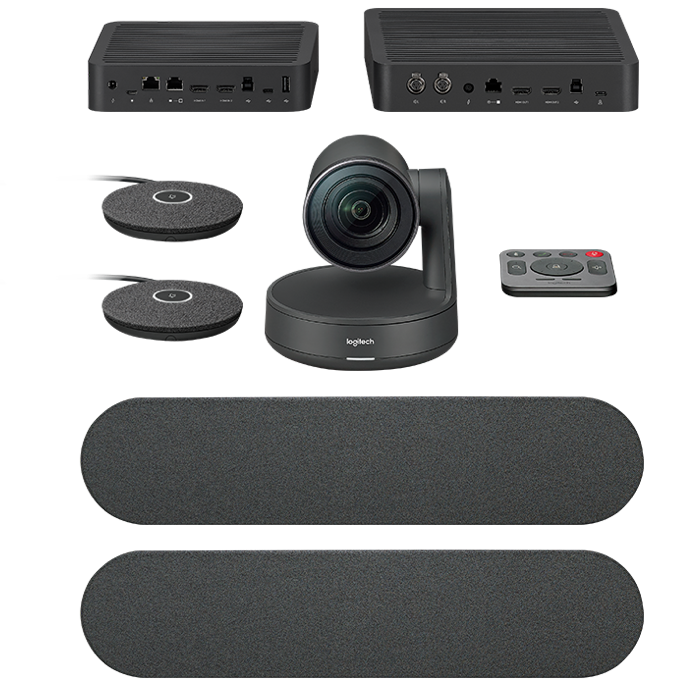

    Logitech Rally Plus
    Rally Camera
    Rally Display Hub
    Rally Table Hub
    Rally Speaker (x2)
    Rally Mic Pod (x2)
    Remote control
    USB Type C to USB Type C
    USB Type A to USB Type B
    CAT6A Ethernet cable
    HDMI Type A (x2)
    A/C cables (x2)
    Power Supplies (x2)
    Documentation

WARRANTY INFORMATION

2-Year Limited Hardware Warranty
