The special shape of MASK12 allows easy installation close to the ceiling or at the wall in a horizontal or vertical position. Mounted vertically MASK12, has a nominal dispersion angle of 90°H x 70°V. When mounted horizontally, you can rotate the high frequency horn by 90° to keep the same horizontal dispersion angle. It doesn’t matter how you mount the loudspeaker as the Apart logo on the loudspeaker can be rotated 360° degrees. The cabinet of MASK12 is made of wood and has a steel grill.
The special U-bracket MASK12BRA is designed with the installer in mind and is therefore provided with an opening to hook up the MASK12 loudspeaker. The cabinet has fixation bolds already pre-mounted what allows the installer to hang the cabinet into the bracket easily. No more searching and fizzling when he is on top of his ladder. This special mounting system allows the installer to mount the loudspeaker in the correct position without worrying of the speaker falling down despite the 19kg weight of the loudspeaker. With Apart’s MASK12PBRA pole mount you can install the loudspeaker easy on the wall.
The MASK12 loudspeakers will satisfy your customers in terms of sound quality, reliability and setup versatility. We recommend combining 4 MASK12 loudspeakers with the REVAMP2600 power amplifier and we assure that your sound system will be taken to a new level of performance!
|height||628 mm||width||370 mm|
|depth||370 mm||loudspeaker system||2-way|
|woofer size||12 inch||woofer cone material||paper|
|tweeter size||1.4 inch||opening angle||90 x 70|
|mounting system||optional||rigging flying points||14 x M10|

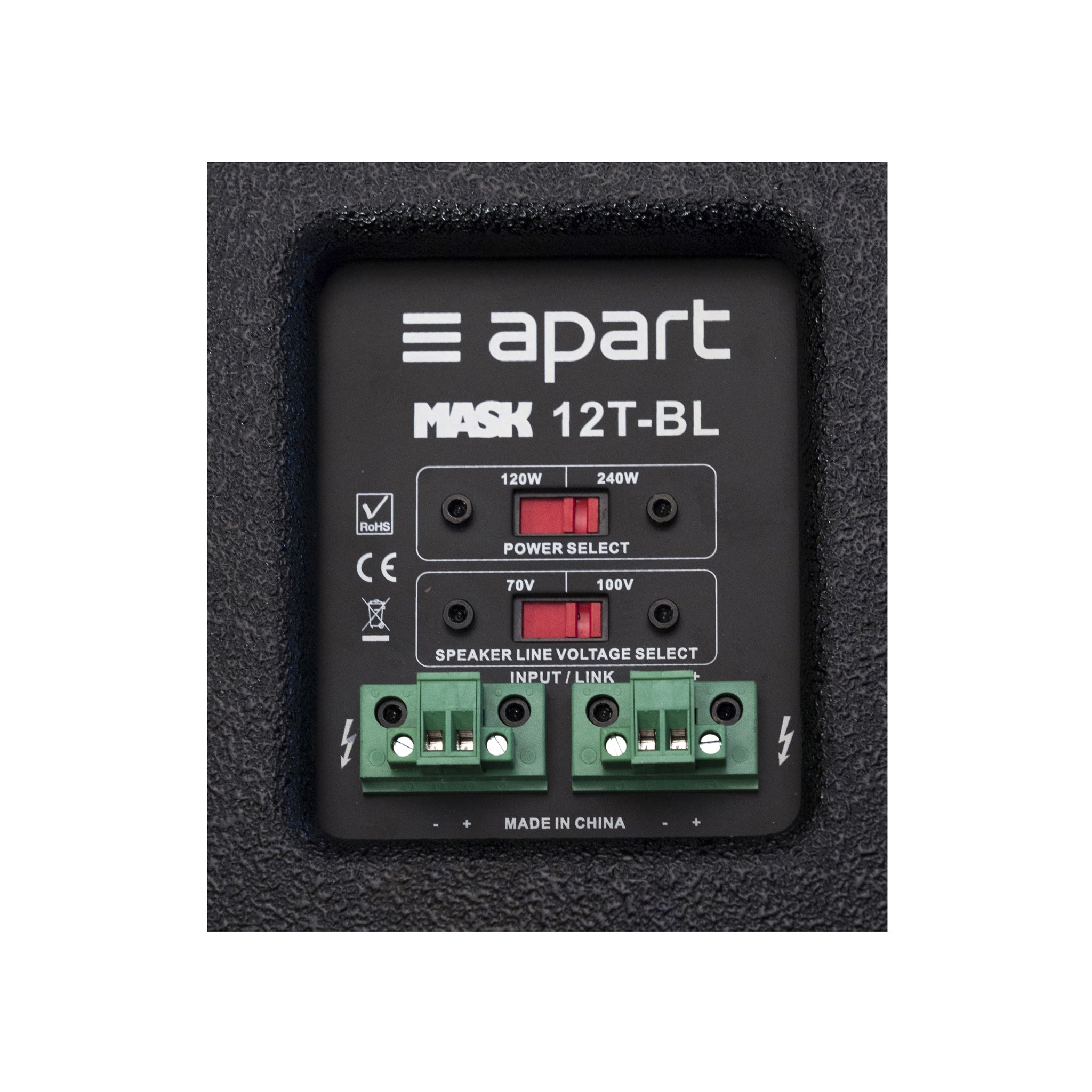

|100V transformer power taps||240 - 120 watts||70V transformer power taps||240 - 120 watts|
|SPL 1W/1m||98 dB||max SPL 1m||122 dB|
|frequency response||48 - 22K Hz||main construction material||wood|
|grille main material||steel||IP rating||40|
|closest RAL colour (subject to deviations)||RAL9003 (W) / RAL9011 (BL)||Net weight product (kg)||21.40|
