EloPOS Z30 POS terminalas 15.6" su Windows 10 su kliento interaktyviu ekranu CFD
€2,086.00
Turime daug
EloPOS Z30, 39.6 cm (15,6''), Projected Capacitive, Full HD, CD, USB, USB-C, Wi-Fi, Intel Celeron, SSD, Win. 10, grey
POS System, screen size: 39.6 cm (15.6''), Touchscreen, Projected Capacitive, 1920x1080 pixels, VESA mount (75x75 mm), speaker, customer display (10 inch), webcam, response time: 25ms, brightness 255cd, viewing angle 170/170°(H/V), 1000:1, Clear Glass, USB (3.0, 4x), USB-C, Wi-Fi (802.11ax), drawer kickout, Intel Celeron, 8 GB, SSD: 128 GB, Win, 10, incl.: power supply unit, power cable (EU, US), stand, grey

PowerfulTouchscreen
The EloPOS Z30 offers a fully integrated 15.6-inch full HD interactive display.

Integrated I/O
From payment devices and scanners
to a cash drawer and printer, there is room
for everything you need at point of sale.

Conceal Your CablesKeep your counter clean with the
integrated cable routing system.
Single Cable ConnectionConnect a secondary display with
a single USB‑C cable that provides
touch, video and power.

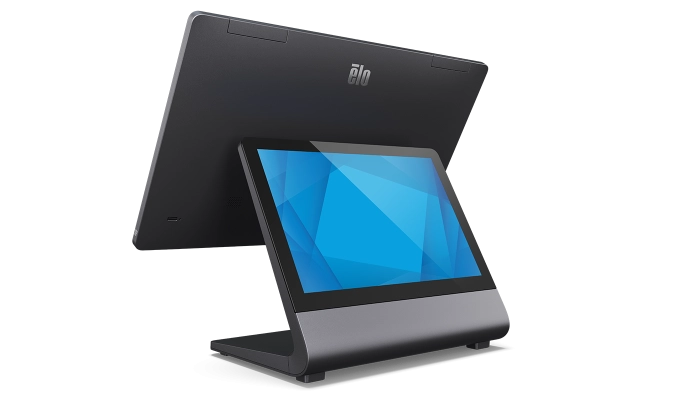

Interactive displayfor customers.
With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.
Image shown with optional CFD

Secure it.
The Z30 is designed to stay in place
without being secured, but if
permanent mounting is required,
easily affix your POS terminal to any
counter or surface.
Commercial-grade performance.
Built with the reliability-tested performance and
security of Intel 11th Generation processors and
integrated Trusted Platform Modules, the EloPOS
Z30 delivers the dependability businesses need.


Elo Bridge
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
Get peace of mind with EloCare.SM
- Advance Unit Replacement
- Extended Warranty
- Professional Services
Specification
Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Intel Elkhart Lake J6426
Graphics
Intel UHD Graphics
BIOS
AMI
Memory (RAM)
8GB 3200MHz DDR4 SO-DIMM on 1 slot
(Expandable to 32 GB maximum on 1 slot)
Storage
128GB M.2 NVME SSD
(GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less)
OS
No OS
Windows 10 IoT Enterprise LTSC 64-bit
OS Languages
Windows 10 – 36 Language groups
Control Buttons
Power button
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55" x 7.62" / 344 mm x 194 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
16.2 million
Brightness (typical)
LCD Panel: 300 nits
TouchPro PCAP: 255 nits
Response Time-total (typical)
25 ms
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports
I/O ports on display:
USB-C Connector
Supports USB 2.0/3.0, DP output
(Requires 20V/40W USB-C Power Delivery 2.0 if not using IO Hub for power)
I/O ports on stand:
DC in Jack
4x USB3.0
LAN RJ45 (Gigabit) (wo Wake on Lan at S5 support)
RJ12 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by BIOS)
Powered USB 24V
Full-function USB-C (Power up to 27W, USB 3.0, Display Port) (non-CFD model only)
Integrated Customer-Facing Display
Size - 10.1 inch
Resolution - 1200 x 1920
Active Display Area - 5.33" x 8.53" / 135.36 mm x 216.58 mm
Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits
Number of Colors - 8-bit (16.7M)
Touch Technology - TouchPro PCAP
Sealing - Touchscreen sealed to LCD
Number of Touches - 10
Webcam
8MP
Max Resolution: 1920x1080 30fps
Auto Focus
Wireless
802.11 a/b/g/n/ac/ax 2.4GHz and 5GHz and 6GHz
Bluetooth
Bluetooth 5.2
Antenna
2T2R design
Microphone
Digital Microphone
Speakers
2x 2W internal speakers
Trusted Platform Module (TPM)
TPM 2.0
Power Supply
External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 150W
Power Consumption (Typical)
ON With CFD: 40W
ON Without CFD: 32W
SLEEP: <2.0W
OFF: <0.5W
Dimensions
14.3" x 17.6" x 7.10" / 362.8 mm x 298.7 mm x 180.4 mm
Shipping Box Dimensions
18.11" x 10.63" x 15.71" / 460 mm x 270 mm x 399 mm
Weight (Unpackaged)
8.8 lbs / 4 kg
Weight (Packaged)
14.1 lbs / 6.4 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 10% to 90%
Storage: 0% to 95% (38.7℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated
Regulatory approvals and declarations
UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA
Real-Time Clock
CR2450 lithium metal battery
Warranty
3-year
