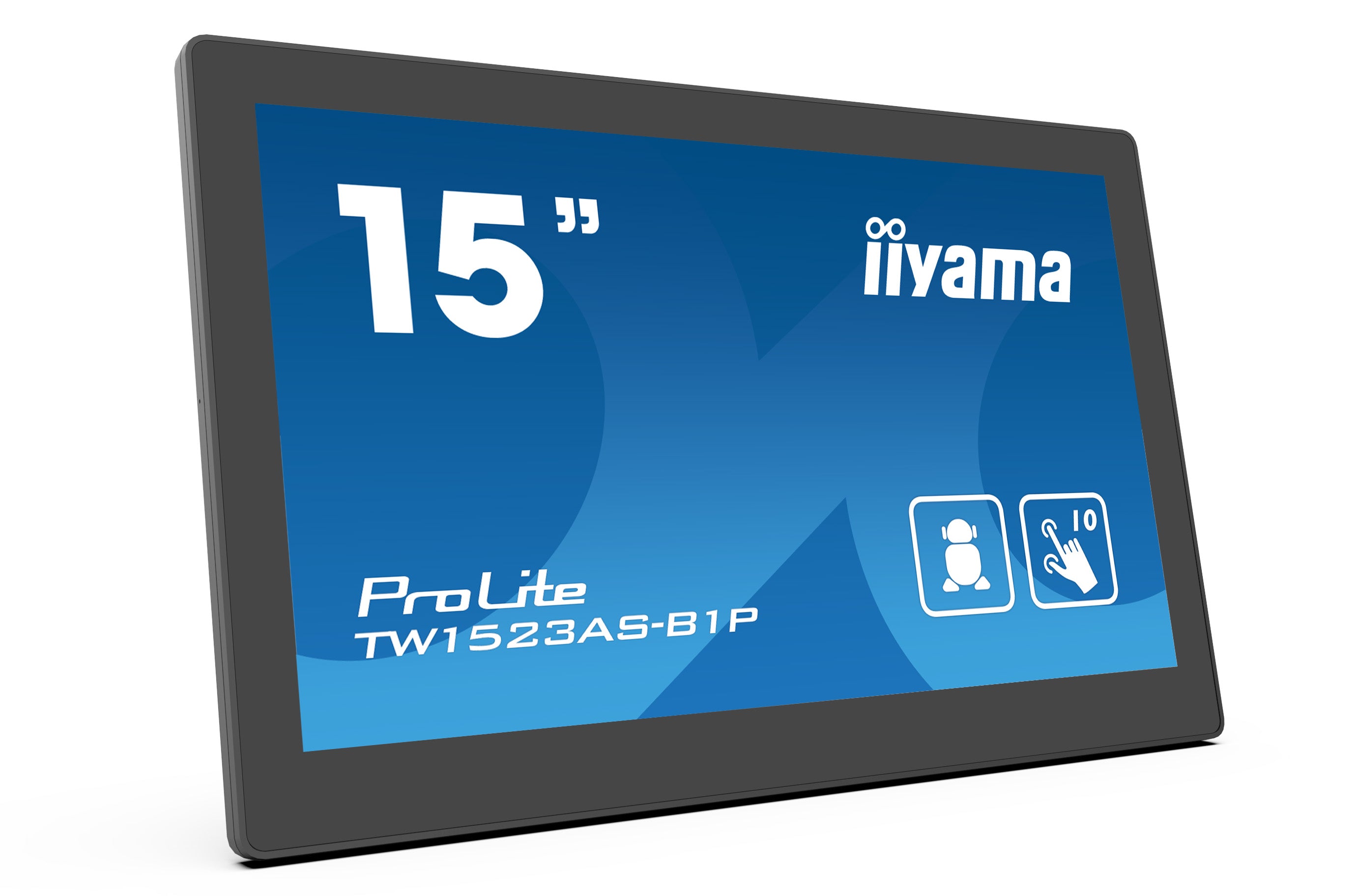

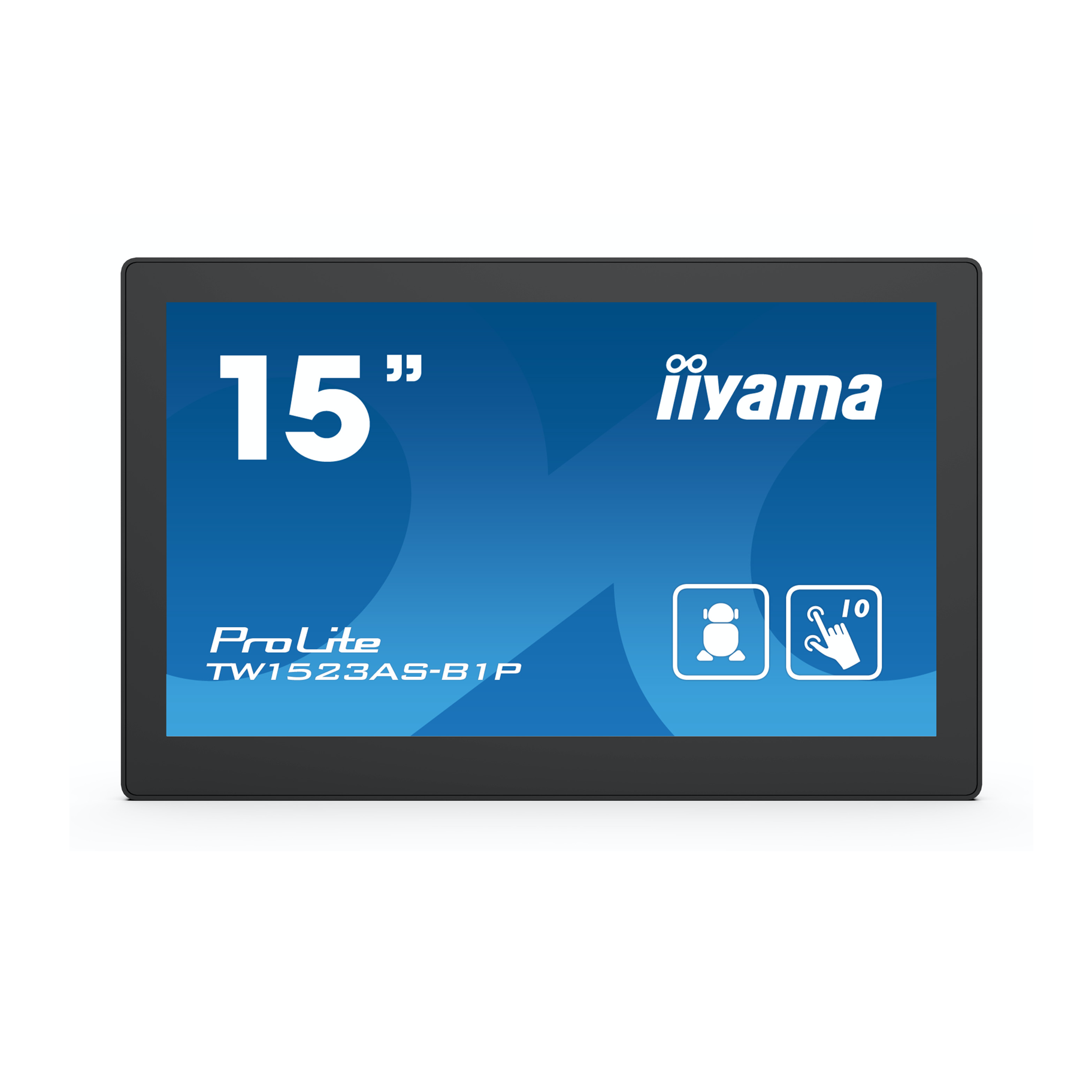

15.6” Full HD PCAP 10pt touch screen with Android and POE Technology
The ProLite TW1523AS-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications.
The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Together with the built-in microphone and speakers it offers interactive and almost limitless application possibilities.
-
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
O
TECHNICAL SPECIFICATION
| Design |
Edge to edge glass |
| Diagonal |
15.6", 39.5cm |
| Panel |
IPS Panel Technology, LED |
| Native resolution |
1920 x 1080 (2 megapixel HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
450 cd/m² |
| Brightness |
385 cd/m² with touch |
| Light transmittance |
85% |
| Static contrast |
1000:1 with touch |
| Response time (GTG) |
30ms |
| Viewing zone |
horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85° |
| Colour support |
16.7mln 8bit |
| Viewable area W x H |
344.16 x 193.59mm, 13.5 x 7.6" |
| Pixel pitch |
0.17925mm |
| Bezel colour and finish |
black, matte |
| Touch technology |
projective capacitive |
| Touch points |
10 |
| Touch method |
finger, glove (latex), capacitive stylus |
| Touch interface |
USB |
| Digital signal output |
HDMI x1 (mini HDMI, 1920x1080 @60Hz) |
| Audio output |
Speakers 2 x 2W |
| USB ports |
x2 (2.0) |
| RJ45 (LAN) |
x1 (PoE) |
| Integrated software |
Android 8.1 without GMS |
| CPU |
Rockchip RK3288, quad-core Cortex--A17 up to 1.8GHz |
| GPU |
Quad-core cortex A17 |
| Storage |
16GB eMMC |
| Memory |
2GB DDR3 |
| WiFi |
IEEE802.11b/g/n |
| Bluetooth |
4.0 |
| Extra |
auto-rotation, microphone, SD card slot, anti-fingerprint coating |
| Max. non-stop operating time |
24/7 |
| Glass thickness |
1.8mm |
| Glass hardness |
6H |
| Applications |
install new application / manage application, lock application, calculator, calendar, chrome, alarm / clock / timer / stopwatch, email, manage files and folders, manage images / video / audio, organize albums, manage power on/off time, play audio files, search engine, system preferences, sound recorder, play video files |
| Orientation |
landscape, portrait, face-up |
| VESA mounting |
100 x 100mm |
| Guides |
quick start guide, safety guide |
| Other |
AC adapter |
| Cable cover |
yes |
| Power supply unit |
external |
| Power supply |
DC 12 V |
| Power usage |
12W typical |
| Regulations |
CE, RoHS support, ErP, WEEE, REACH |
| REACH SVHC |
above 0.1%: Lead |
| Product dimensions W x H x D |
387 x 244 x 30.5mm |
| Box dimensions W x H x D |
477 x 295 x 75mm |
| Pallet volume |
150pcs |
| Pallet dimensions W x H x D |
1000 x 1200 x 1760mm |
| Weight (without box) |
1.5kg |
| Weight (with box) |
2.4kg |
| EAN code |
4948570118014 |
