Key Feature
- Brightness(Typ.) : 500 cd/m²
- Aspect Ratio: 58:9
- Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
- Depth: 81.7mm
- Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR

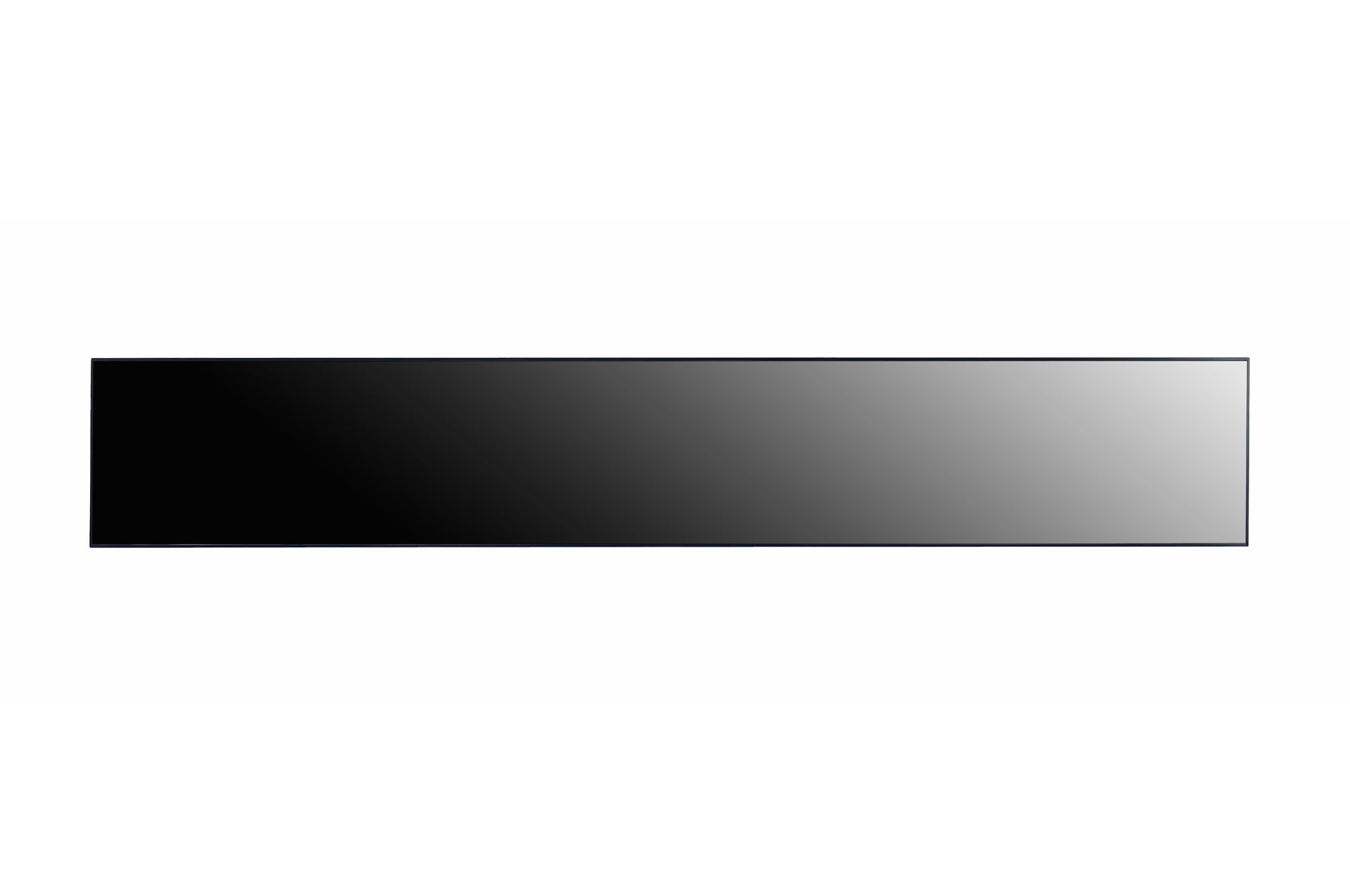

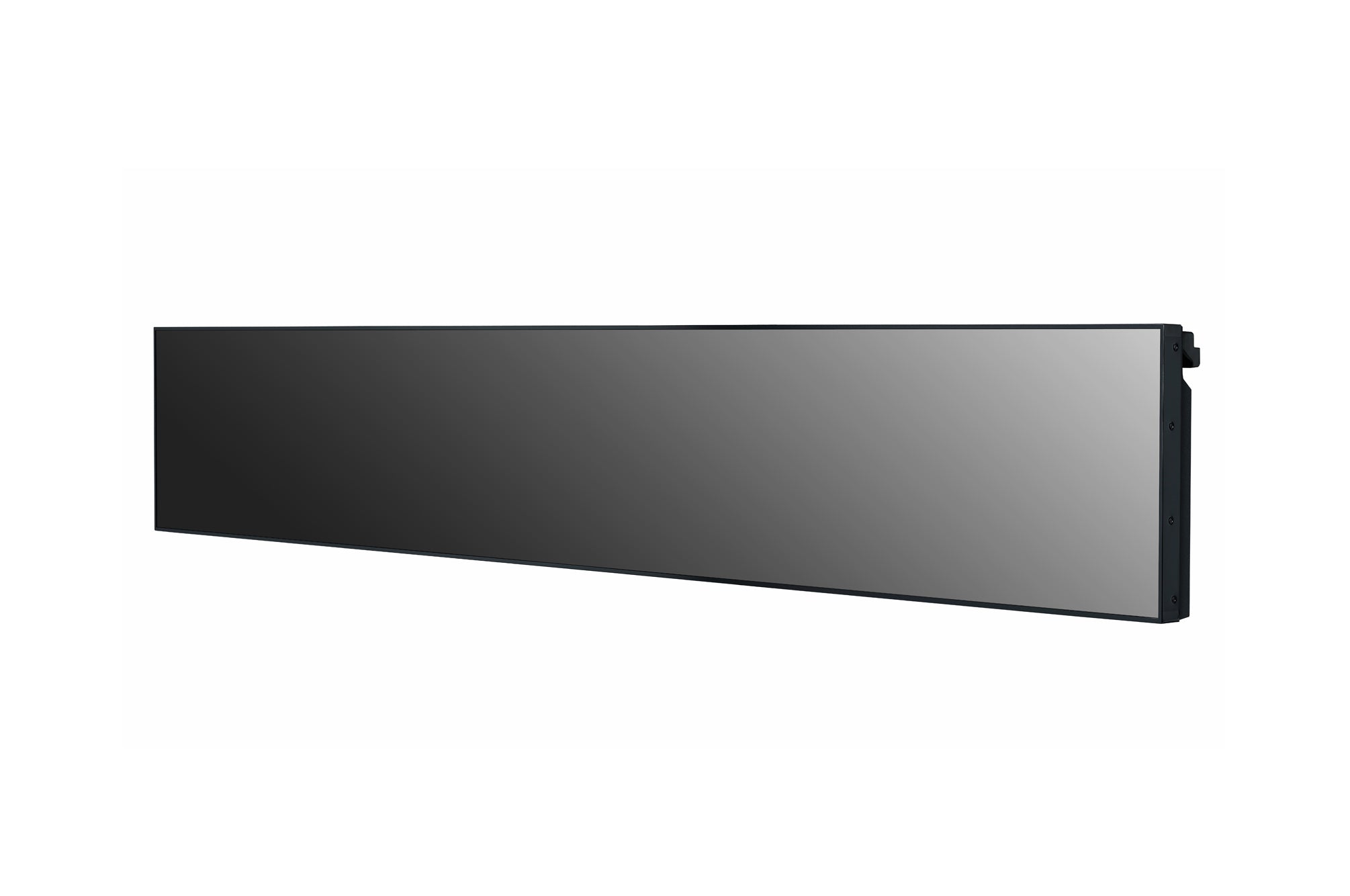

58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
EXTRAORDINARY VIEWING EXPERIENCE

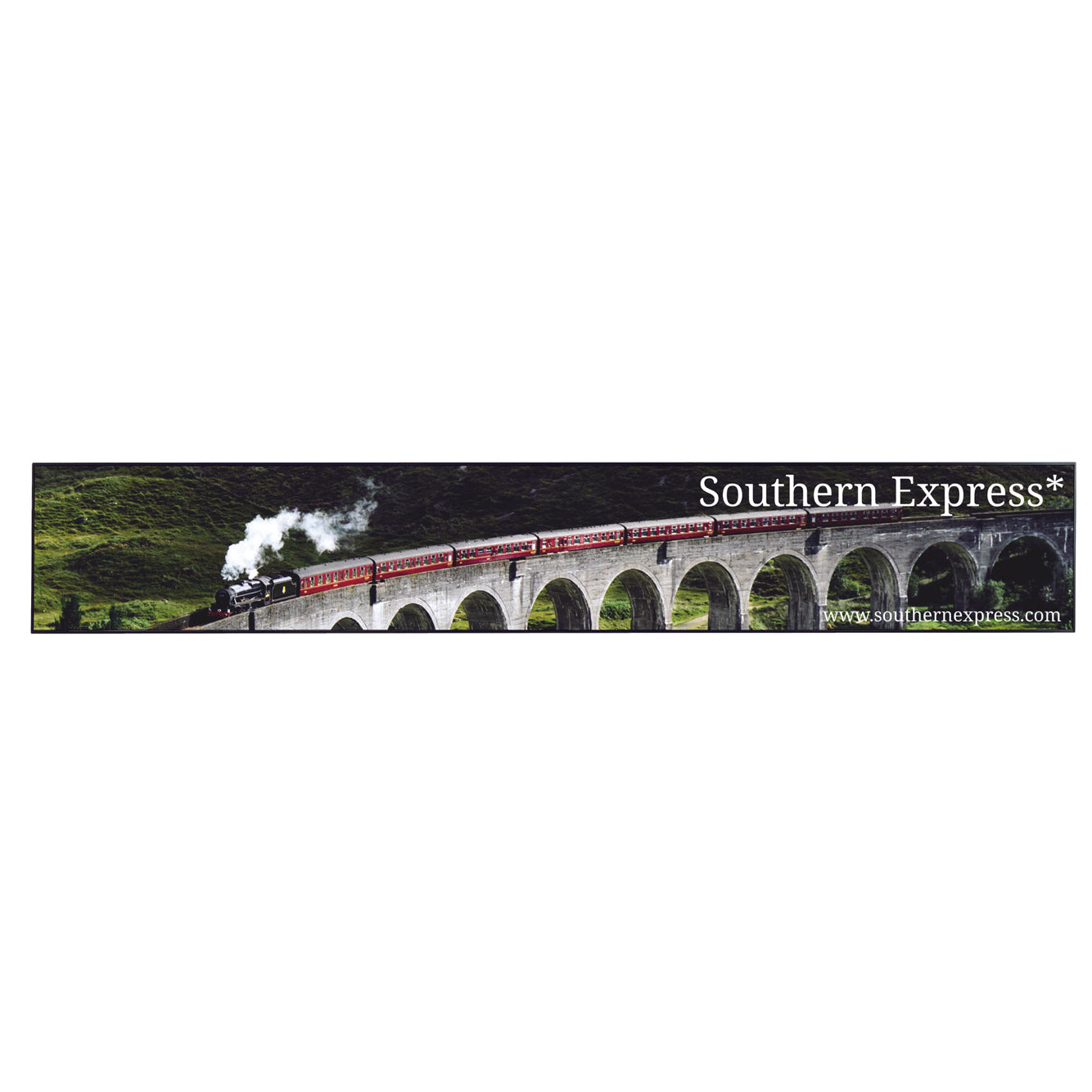

58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.* Video content only. (Images not supported)
EXTRAORDINARY VIEWING EXPERIENCE
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
EFFECTIVE CONTENT DELIVERY
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
EFFECTIVE CONTENT DELIVERY
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
OPERATIONAL EFFICIENCY
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
OPERATIONAL EFFICIENCY
User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.*OSD : On Screen Display
OPERATIONAL EFFICIENCY
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Tech Spec
-
Panel
Screen Size 86" Panel Technology IPS Aspect Ratio 58:9 Brightness (Typ., cd/m²) 500 Contrast Ratio 1,100:1 Viewing Angle (H x V) 178 x 178 Response Time 8ms (G to G) Surface Treatment (Haze) 10% Lifetime 50,000 Hrs (Typ.) Operation Hours 24 Hrs / 7 Days Orientation Landscape & Portrait -
Connectivity

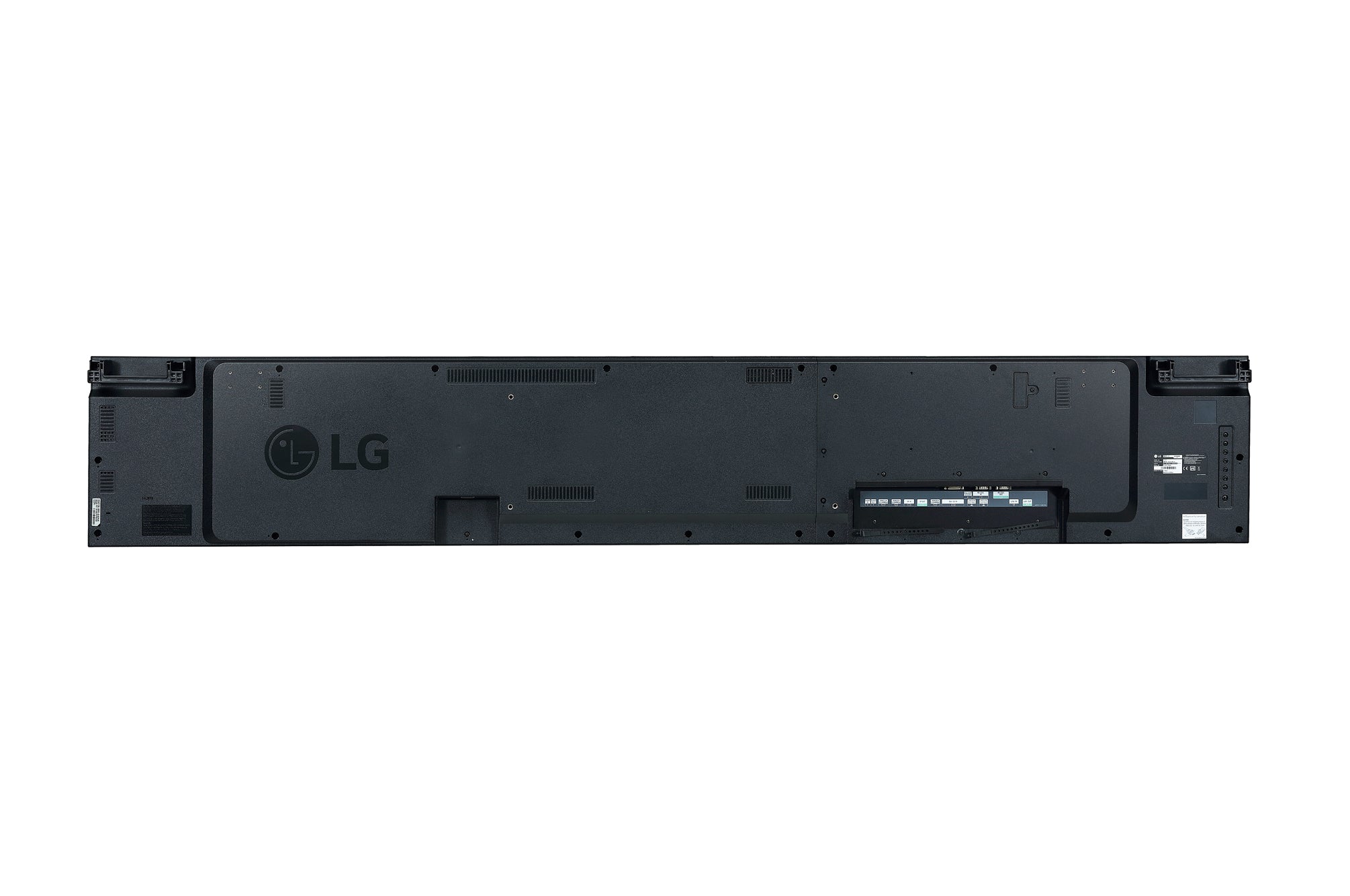

Input HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio External Control RS232C In/out, RJ45 (LAN) In/out, IR In -
Mechanical Specification

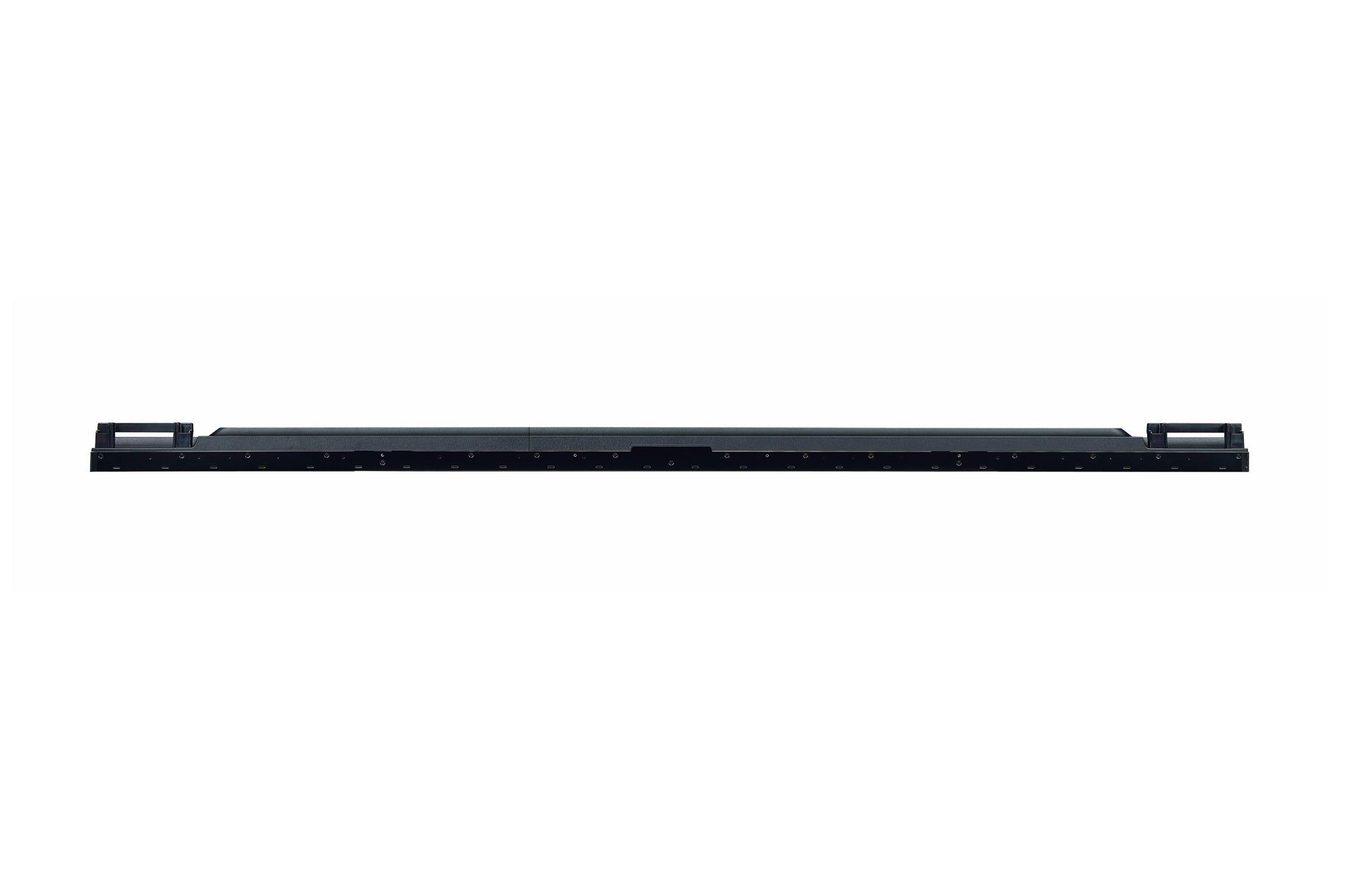

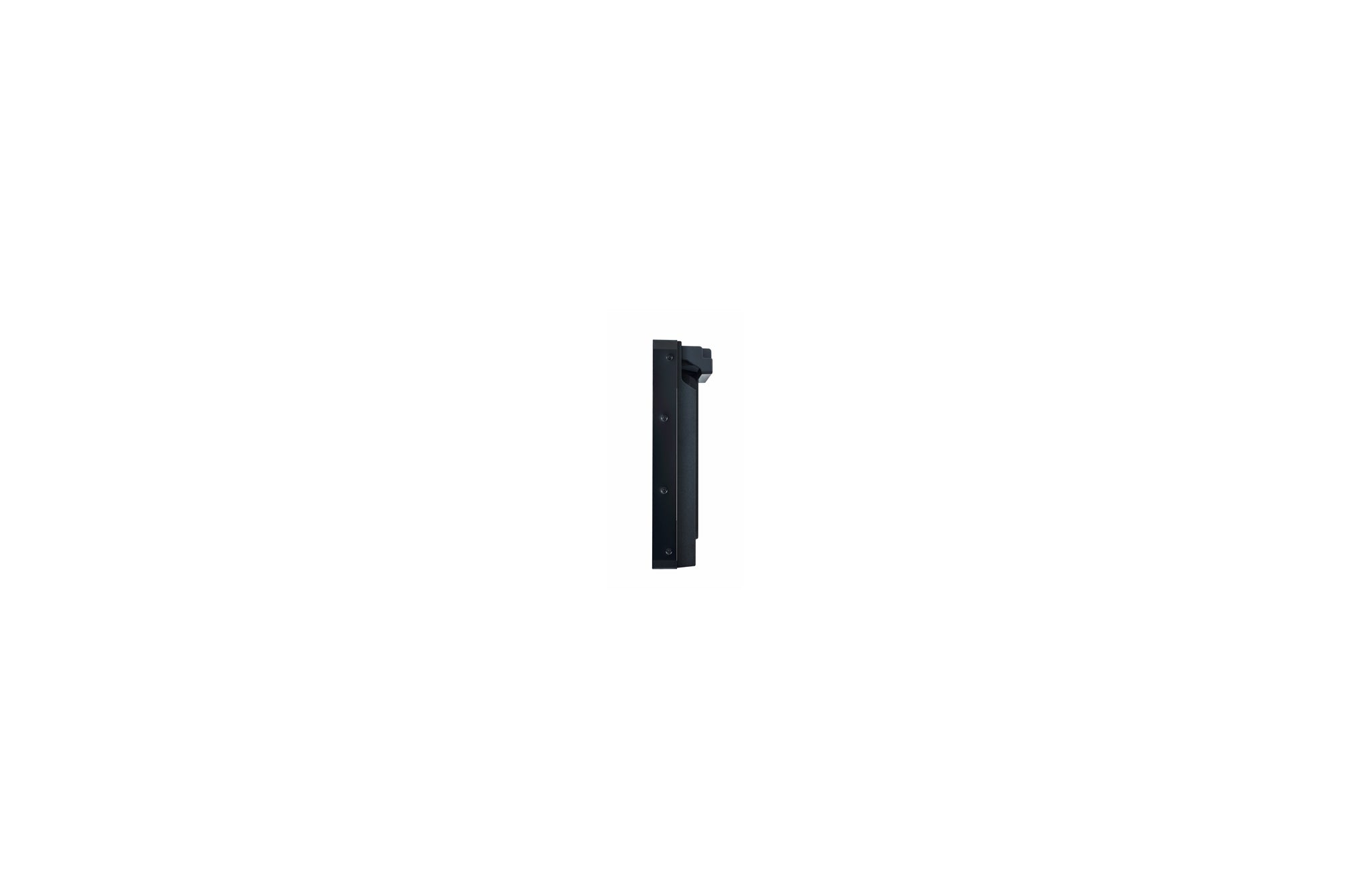

Bezel Color Black Bezel Width 4.4 mm (L/R), 5.9 mm (T/B) Weight (Head) 20.5 kg Packed Weight 38.2 kg Monitor Dimension (W × H × D) 2,158.3 x 348.5 × 81.7 mm Carton Dimensions (W × H × D) 2,290 x 599 x 228 mm Handle Yes VESA™ Standard Mount Interface 600 x 200 mm -
Environment Conditions
Operation Temperature Range 0 °C to 40 °C Operation Humidity Range 10 % to 80 % -
Power
Power Supply 100-240V~, 50/60Hz Power Type Built-In Power -
Power Consumption
Typ./Max. 220 W / 240 W Smart Energy Saving 100 W -
Standard (Certification)
Safety CB / NRTL EMC FCC Class "A" / CE / KC ErP Yes (EU Only) -
Media Player Compatibility
OPS type compatible Yes (Piggyback) -
Software Compatibility
Content Management Software SuperSign CMS (The SuperSign Editor function is not supported.) Control and Monitoring Software SuperSign Control/ Control+ LG ConnectedCare Yes -
Accessory
Basic Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual Optional OPS Kit (KT-OPSF)
