LG Color Transparent LED Film

€0.00

LikutisTurime daug

Pitch: 24mm LED Type: R,G,B 3in1 Color Package Transmittance: 73% Curvature(Convex and Concave): 1,100R Self-adhesive Film High Transparency High transparency*(73%) allows glass to remain visible even after attaching thefilm, with no adverse effects...

Kontaktai

Aprašymas

Pitch: 24mm
LED Type: R,G,B 3in1 Color Package
Transmittance: 73%
Curvature(Convex and Concave): 1,100R
Self-adhesive Film

High Transparency

High transparency*(73%) allows glass to remain visible even after attaching the
film, with no adverse effects on the original design. When the LED is OFF, the film
is unnoticeable, blending into the glass completely.

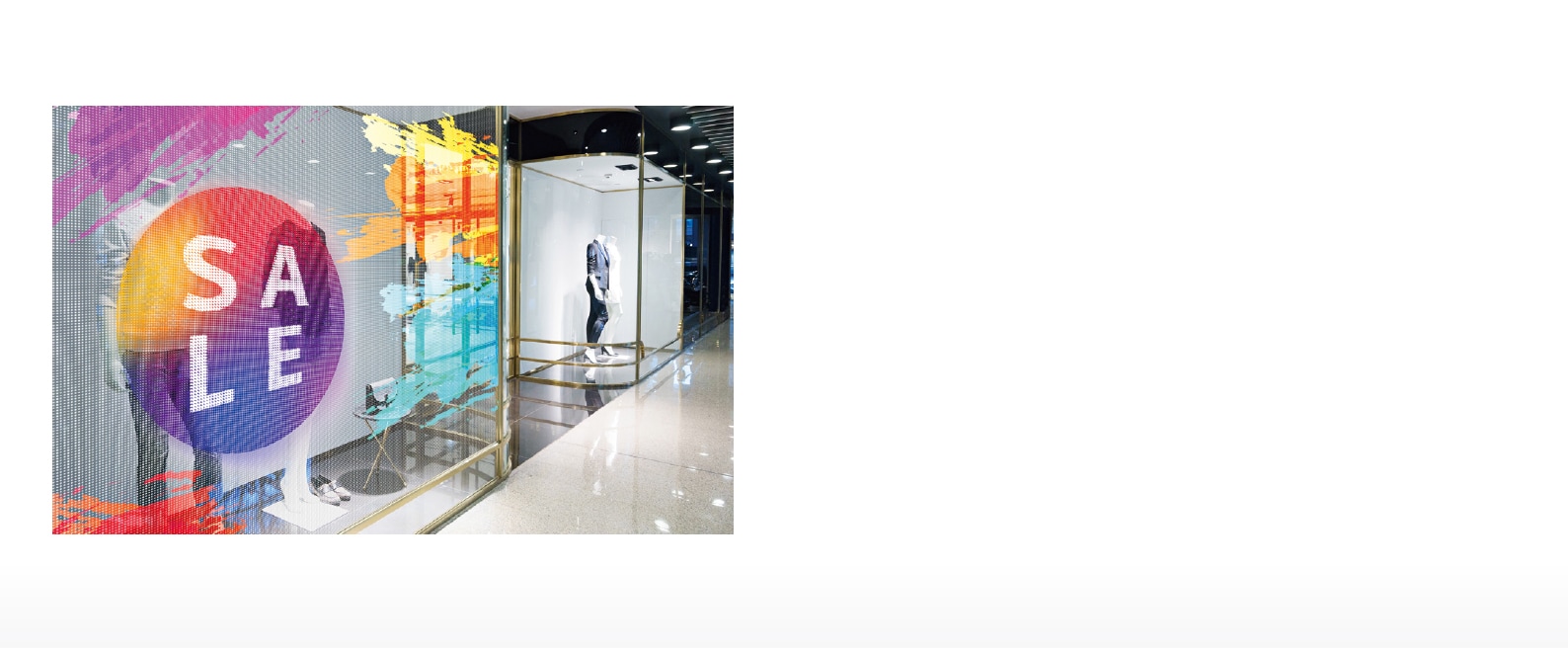

Full Color Expression

LG Color Transparent LED film delivers a surprisingly wide range of colors using a 24 mm pitch. Applications can be extended to display an entire video or pictures in which various colors combinations are possible.

Easy Space Innovation

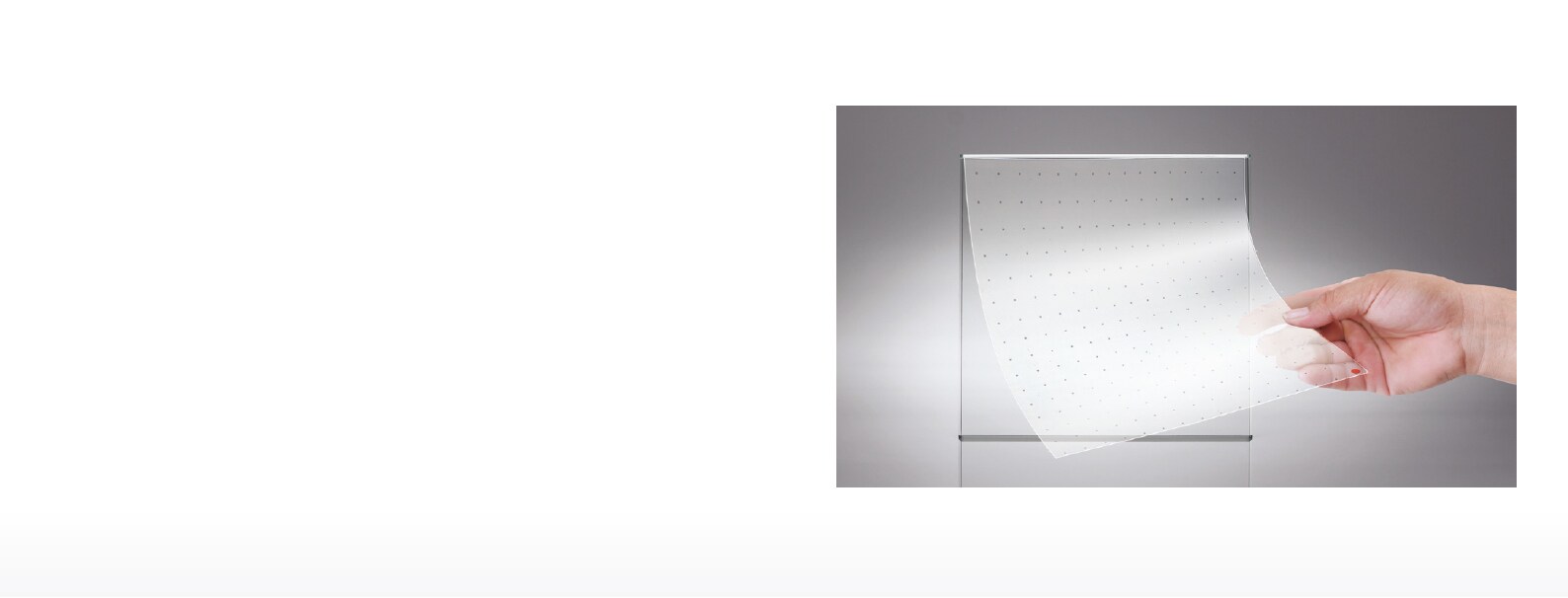

Self-adhesive Film

The transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass wihout the need for any complicated construction.

Easy Space Innovation

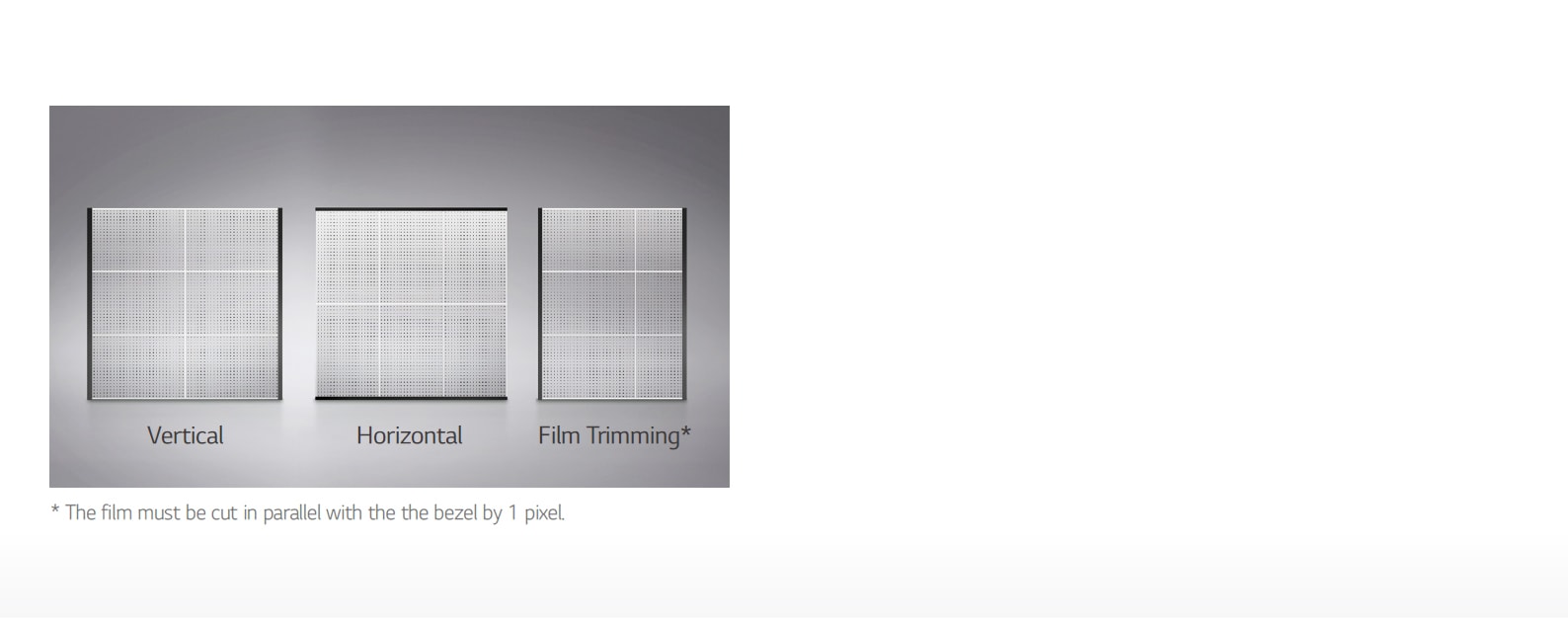

Superb Expandability and Flexibility

The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

Easy Space Innovation

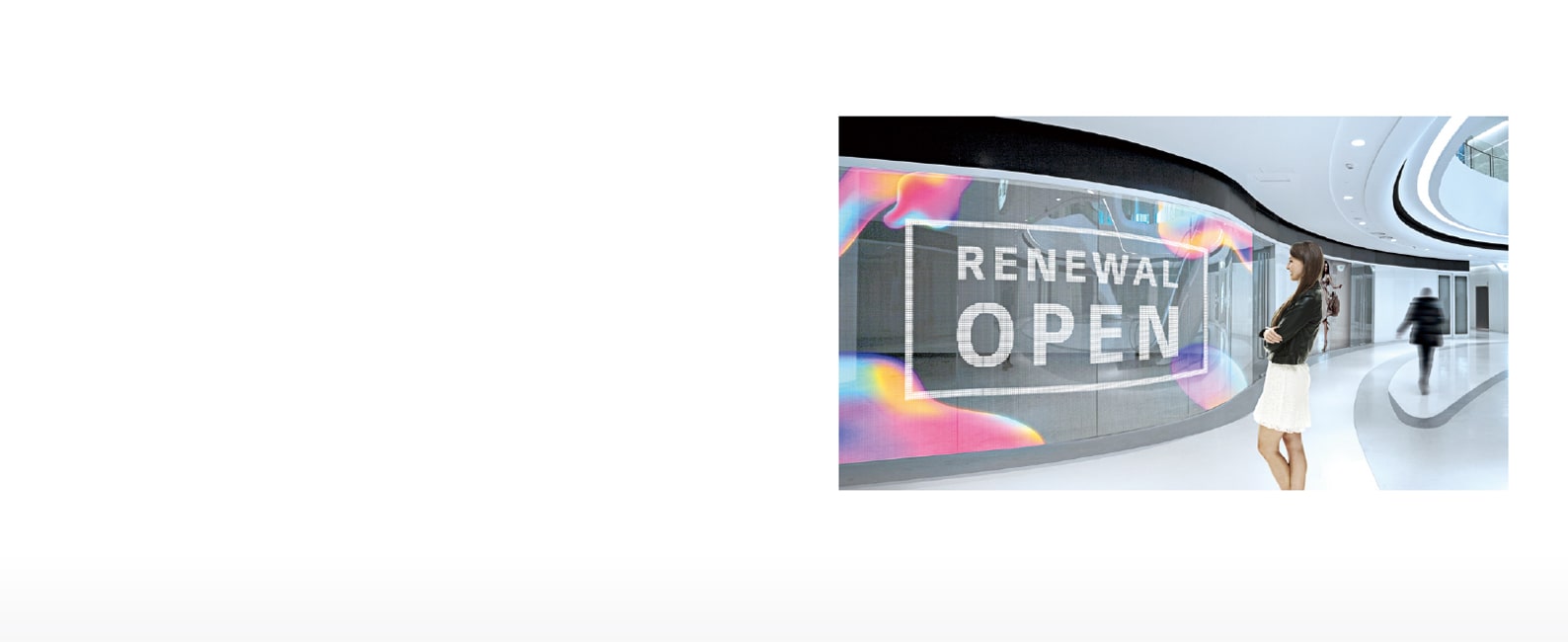

Curved Format Supported

The transparent LED film supports curvatures up to 1,100R convex and concave for curved glass or window applications. This allows a wider range of venues to be redesigned as a landmark.

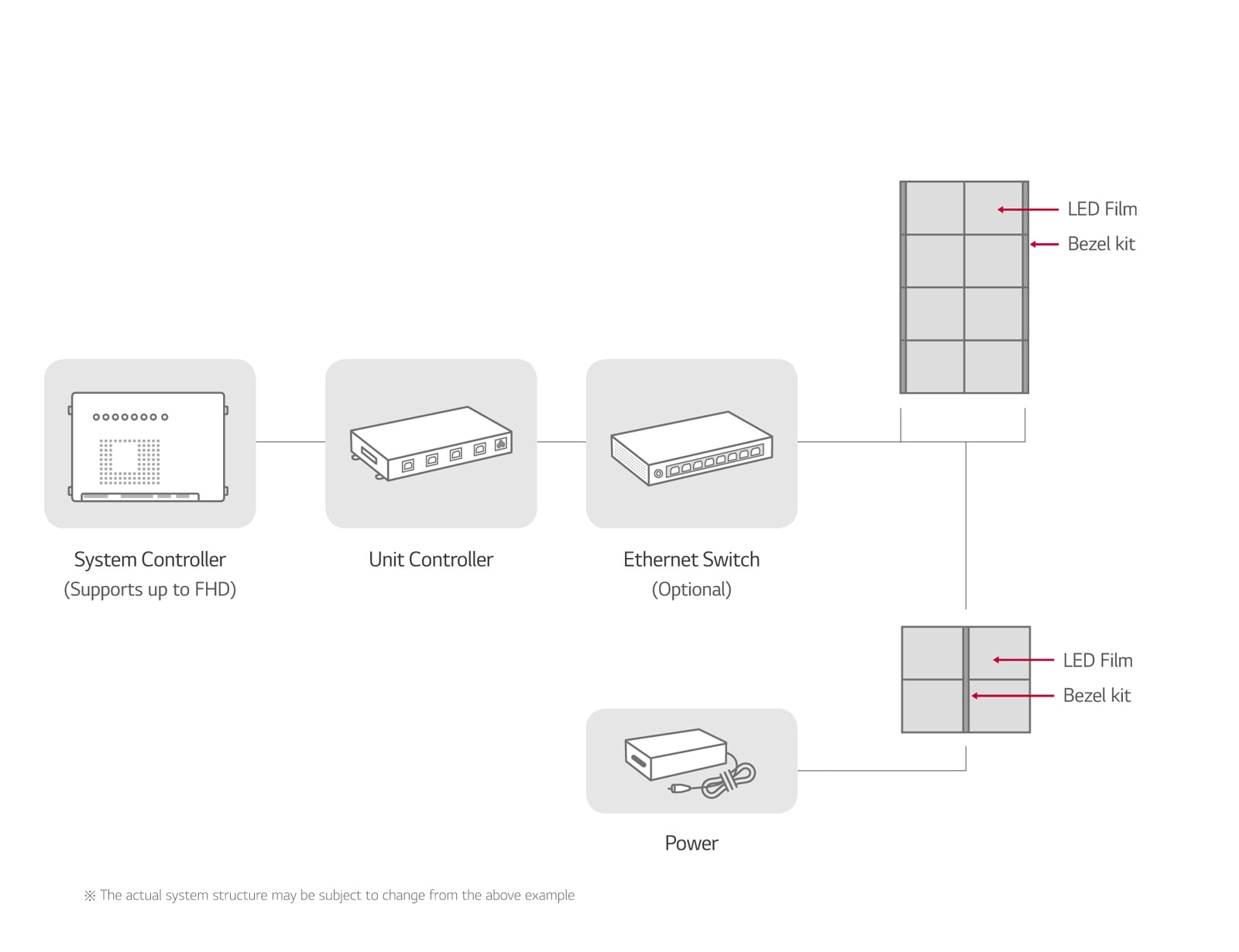

System Connection

LAT240DT1
Pitch 24±0.2mmLED Type R, G, B 3in1
Color Package (SMD1818)
Resolution 28 x 20Pixels per Panel 560
Pixel Density [point/m²] 1,736
Brightness (After Calibration) >1,000nit
Contrast Ratio ≥ 100,000:1
Luminance Uniformity ≥ 70%
Chromaticity Uniformity Δu’v’≤0.015
Viewing Angle (H x V) 120 x 120
Lifetime (Duration of Half Brightness in Hours) 50,000
Daily Usage 24 Hrs / 7 Days
Warranty 2 YearsTransmittance 73%
Operating Temperature 0℃ ~ 45℃ (Indoor Glass Installation Only)Curved Installation 1,100R (Convex and Concave)
Film Trimming Yes (Parallel to the Bezel Side Only)
Film Surface Color Distortion No
Color Processing 130/120/110 Level (R, G, B)Colors 1,716,000 Colors
Color Chromaticity Cx: 0.28±0.03, Cy: 0.28±0.03
Dimension (W x H x D) 668 x 480 x 2.0 mm (with Front & Back Protection Film)
Weight 0.73 kg
Power Consumption 37W (Transparent panel 1EA + Bezel kit 1EA)

1ST BEZEL KIT
Dimension (W x H x D) 547.3 x 63 x 24 mm
Weight 0.45 kg

COMMON BEZEL KIT
Dimension (W x H x D) 479.5 x 28.1 x 24 mm
Weight 0.26 kg

UNIT CONTROLLER
Resolution 960 x 540 (4 Unit Controllers Needed for FHD)
Interface Input : LVDS
Output : RJ45 x4EA
Maximum Transmission Length 100 m
Dimension (W x H x D) 293 x 37 x 188.7mm
Weight 1.5 kgTemperature Sensor Yes
Power Consumption 20 W

SYSTEM CONTROLLER
Video (Max. Input Resolution) DP: 3,840 x 2,160 @30Hz
HDMI: 3,840 x 2,160 @30Hz
DVI-D: 1,920 x 1,080 @60HzInput HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0
Output LVDS, DP, RS232C, RJ45 (w/o LED Indicator)
Dimension (W x H x D) 293 x 40.1 x 193.3 mm
Weight (Head) 1.6 kg
Temperature Sensor O
Light Sensor O
Source Selection HDMI, DVI-D, DP
TPC (Temporal Peak luminance Control) Yes
Power Consumption 17W
CMS S/W Yes
Accessories Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card

POWER
Dimension (W x H x D) 183 × 86 × 28 mm
Weight 0.769 kg
Input 100~240V, 50~60Hz
Output 19.5V/10.8A (210W)
Color WhiteDC Output Cable 14AWG, 1.5m
Type L Type
