- Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
- Transparency(Typ.) : 38% (Panel)
- Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
- Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
- IEC 61373 Standard Verified
A New Dimension to Digital Signage
Transform your business and experience the new level of creativity with LG Transparent OLED Signage.
A New Level of See-through View
LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
FULL OF LIFE
Unrivaled Picture Quality
LG's OLED technology, featuring self-lighting pixels, maintains accurate and vivid colors even when the display becomes transparent. It brings content to life, making it difficult for people to separate content from the real objects placed behind the screen.
SPATIAL HARMONY
High Transparency
Thanks to its high transparency (38％), much higher than conventional LCD transparent displays, LG Transparent OLED signage blends into its surroundings seamlessly and naturally. The display's see-through view turns places where it is installed into open and interactive spaces.
SPATIAL HARMONY

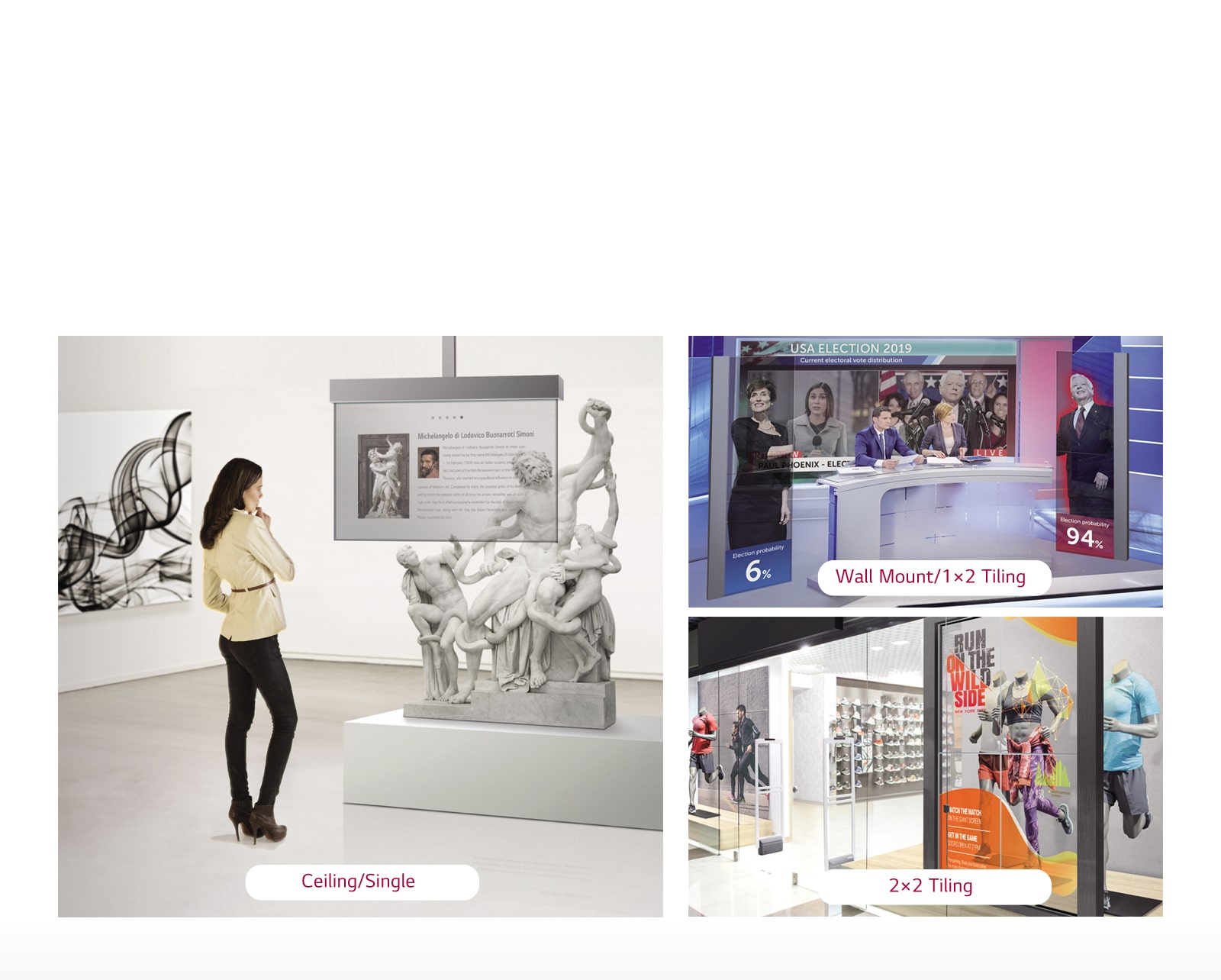

Customizable and Expandable Design
LG Transparent OLED signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. There is no limit to the applications of Transparent OLED signage, and it can complement any venue in which it is installed.
* Installation accessories are not supplied by LG.
* Installation accessories are not supplied by LG.
SEE THROUGH
Effective Information Delivery
While clearly showing objects behind the screen, LG Transparent OLED signage overlays information right over them so that viewers can easily see both the object and the relevant information without having to change their view.
VISUAL FEAST
AR Effects in the Dark
Using LG transparent OLED signage, you can surprise viewers with AR effects in the dark. The content displayed seems life-like, adding another wow factor to the viewing experience.
PRODUCT DURABILITY

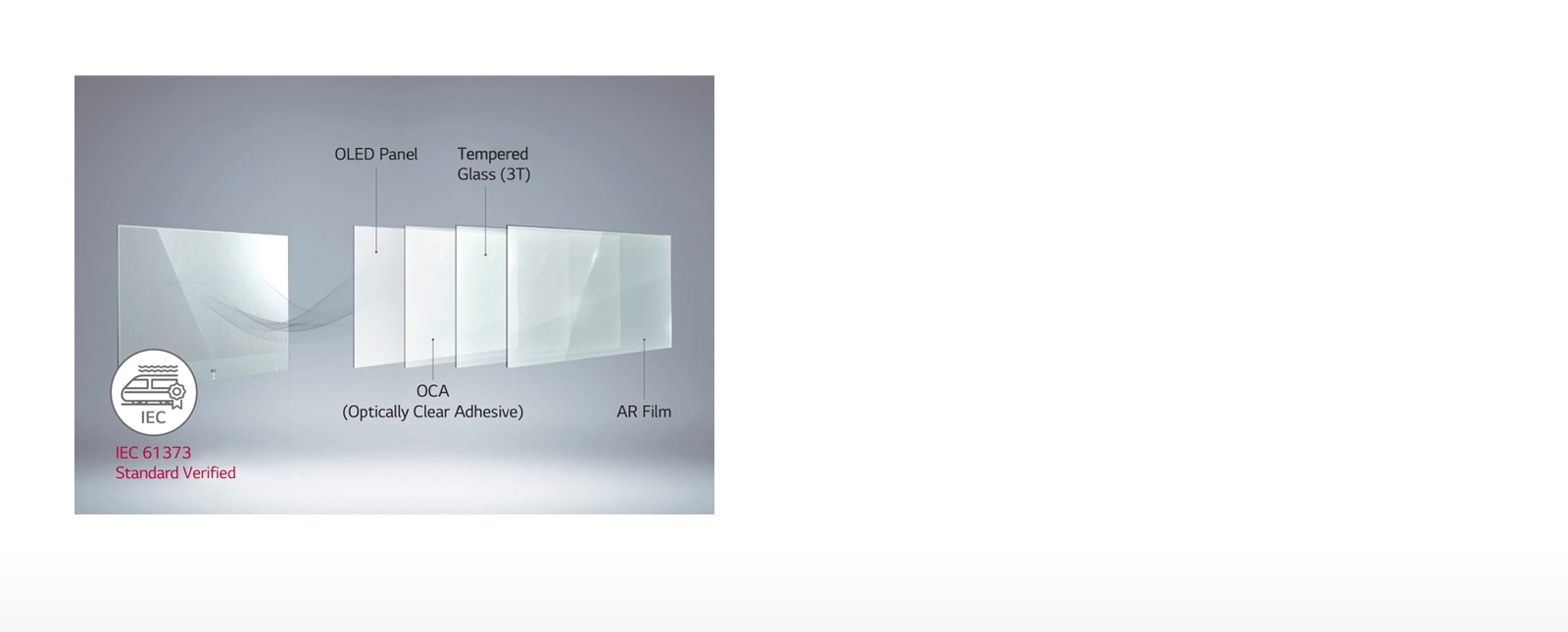

Robust Design for Safety
The tempered front glass protects the screen from external impact, and its verified safety design means it is reliable enough to endure shock and vibration caused by the surrounding environment, such as moving trains.
PANEL
Screen Size 55"
Screen Size 55"
Native Resolution 1,920 x 1,080 (FHD)
Brightness (Typ., cd/m², APL 25%, without Glass) 400
Brightness (Typ., cd/m², APL 25%, without Glass) 400
Brightness (Typ., cd/m², APL 100%, without Glass) 150
Transparency (Typ.) 38% (Panel)
Transparency (Typ.) 38% (Panel)
CONNECTIVITY
Input HDMI, DP, USB (2)Output DP, Audio
External Control RS232C In/out, RJ45 (LAN) In/out, IR In
MECHANICAL SPECIFICATION
Bezel Width 7.9 / 7.9 / 7.9 / 121.7 mm (T/L/R/B)
Monitor Dimension (W × H × D) (Head) 1,225.53 x 810.1 x 6.6 mm
(Signage Box) 782.8 x 238.4 x 34.7 mm
Weight (Head) 13.9 kg
(Signage Box) 3.4 kg
(Signage Box) 782.8 x 238.4 x 34.7 mm
Weight (Head) 13.9 kg
(Signage Box) 3.4 kg
Carton Dimensions (W × H × D) 1,329 x 898 x 191 mm
Packed Weight 22.4 kg
Packed Weight 22.4 kg
ENVIRONMENT CONDITIONS
Operation Temperature 0°C to 40°C
Operation Humidity 10% to 80%
POWER
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
POWER CONSUMPTION
Typ. 309 W *8 color bar
Max. 318 W *8 color bar
CERTIFICATION
Safety CB / NRTLEMC FCC Class "A" / CE / KC
MEDIA PLAYER COMPATIBILITY
OPS type compatible No
OPS type compatible No
SOFTWARE COMPATIBILITY
Content Management Software SuperSign CMSControl and Monitoring Software SuperSign Control / Control+
ACCESSORY
Basic Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(1,600mmx4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, RS232 Cable(4P-4P), LC Cable(VLC), Tapes, Screws, Shield Cover Ass'y, Rubber Dampers
