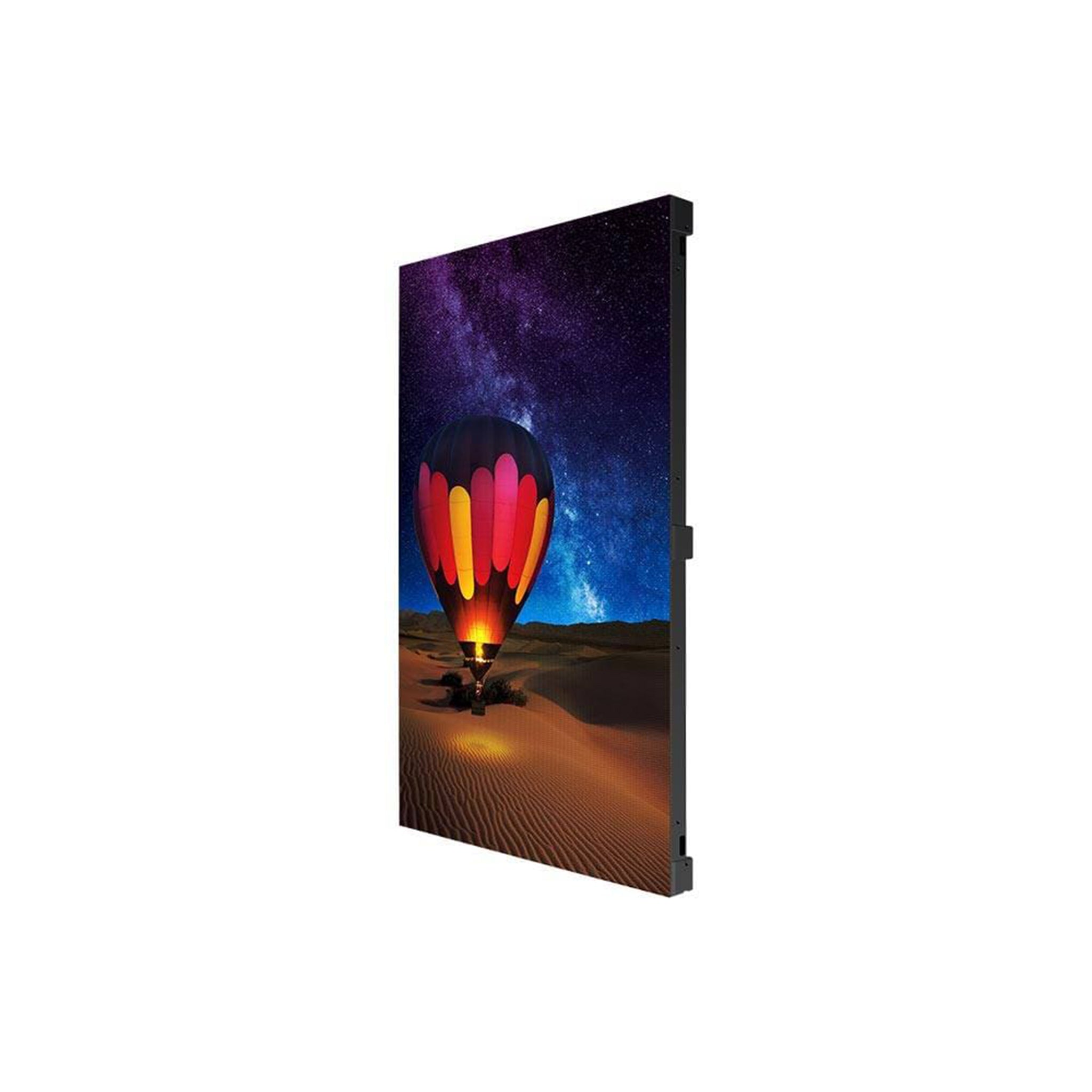

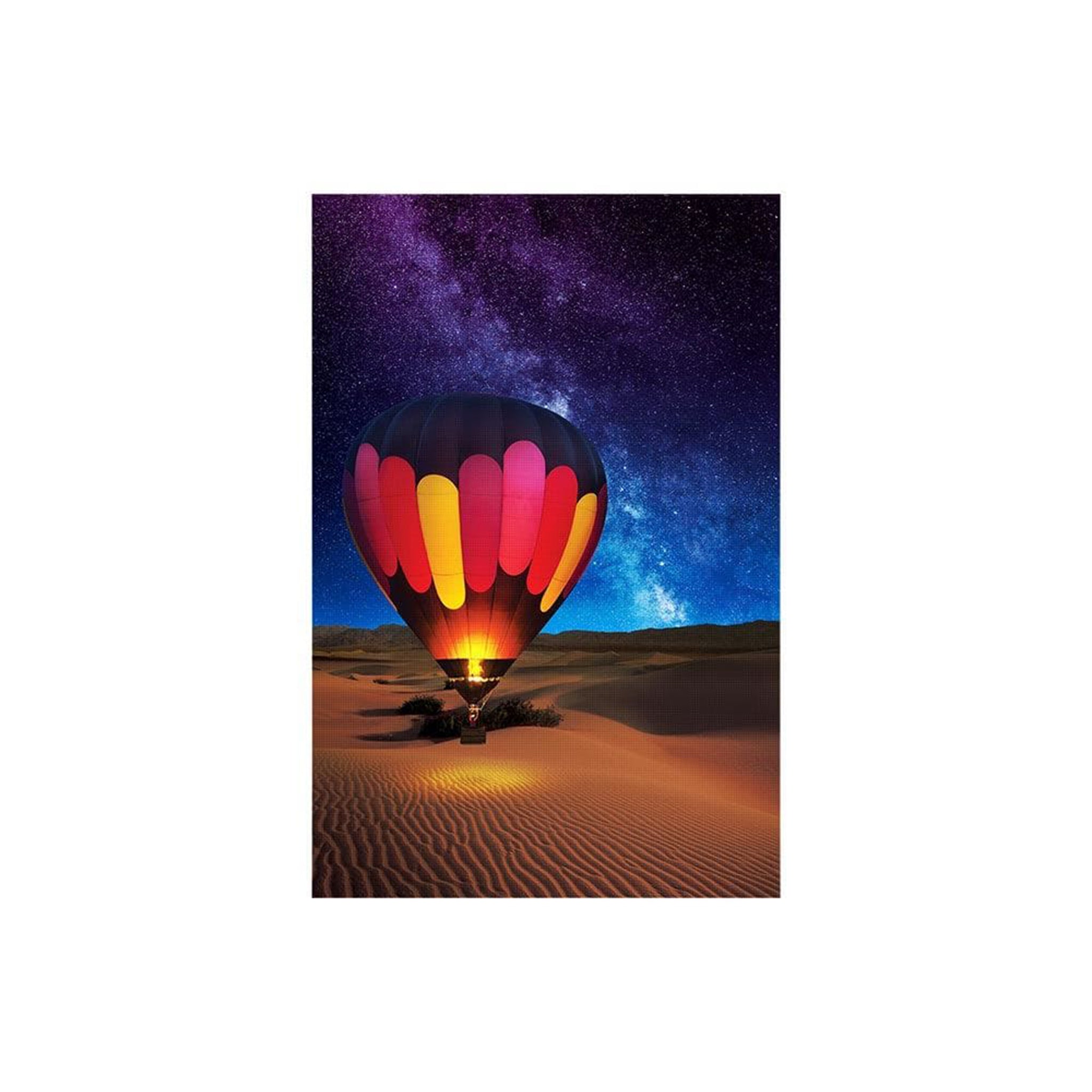

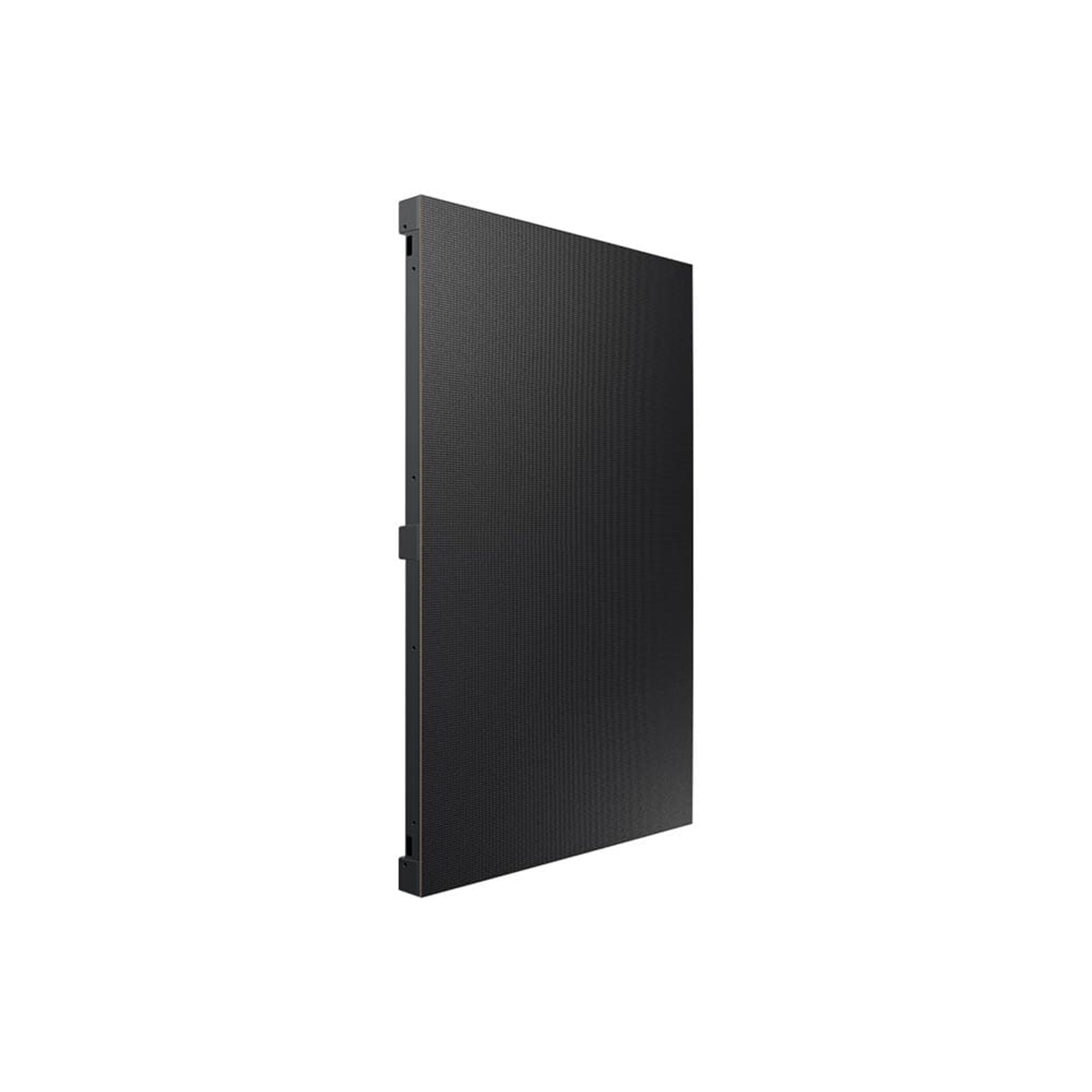

SAMSUNG LED MODULE - IF040H - Pixel Pitch 2.5 / 4 / 6

€0.00

LikutisSpecialus užsakymas

Features Enliven Indoor LED Content Samsung’s IF-D Series LED displays deliver a consistent and colorful presentation in any indoor environment. Configurable for both audience captivation and unique environmental needs, the IF-D Series are easy to...

2.5

Kontaktai

Aprašymas

Features

Enliven Indoor LED Content

Samsung’s IF-D Series LED displays deliver a consistent and colorful presentation in any indoor environment. Configurable for both audience captivation and unique environmental needs, the IF-D Series are easy to install and maintain, and drive audience engagement at minimal total cost of operation.

Optimize Content Brilliance

The IF-D Series’ dynamic peaking technology combats natural or ambient lighting interference. Dynamic peaking elevates content to peak brightness levels nearly twice as high as the standard LED signage maximum. In turn, the IF-D Series produces brilliant content that shines against any background.

* Here, “Conventional LED Display” refers to displays that do not contain dynamic peaking technology.
In both conventional and advanced models, peak brightness and standard brightness can vary depending on composition and usage.

Showcase True-to-Life Imagery

Certain LED displays struggle with oversaturation that can give skin tones an unnatural reddish hue. Samsung’s IF-D Series displays mitigate these variations and maintain consistent gradation through in-depth color management, ensuring all featured subjects appear with lifelike realism.

* Here, “Conventional LED Display” refers to displays that do not contain color management technology.

Elevate Contrast and Brightness

Samsung’s IF-D Series displays leverage strict Scene Adaptive HDR technology to create a comfortable, uniform long-term viewing arena. This includes specialized inverse tone mapping that analyzes and optimizes gradation and brightness levels within individual scenes while also eliminating shine.

* Here, “Conventional LED Display” refers to displays that do not contain inverse tone mapping technology.

Reinforce Accurate Color Expression

A unique grayscale management algorithm empowers the IF-D Series to deliver consistent red, green and blue hues without distortion, even in low grayscale. Such color stability ensures optimal and uninterrupted picture quality in museums, galleries and other low-brightness indoor environments.

* Here, “Conventional LED Display” refers to displays that do not contain integrated low grayscale correction technology.

Customize Color Presentation

Detailed color management also allows IF-D Series users to select, store and deploy the RGB shades that best fit their unique branding and content needs. Through this convenience, corporate facilities, museums and other environments can quickly deploy content at high clarity across multiple screens.

“Mask” Visual Inconsistencies

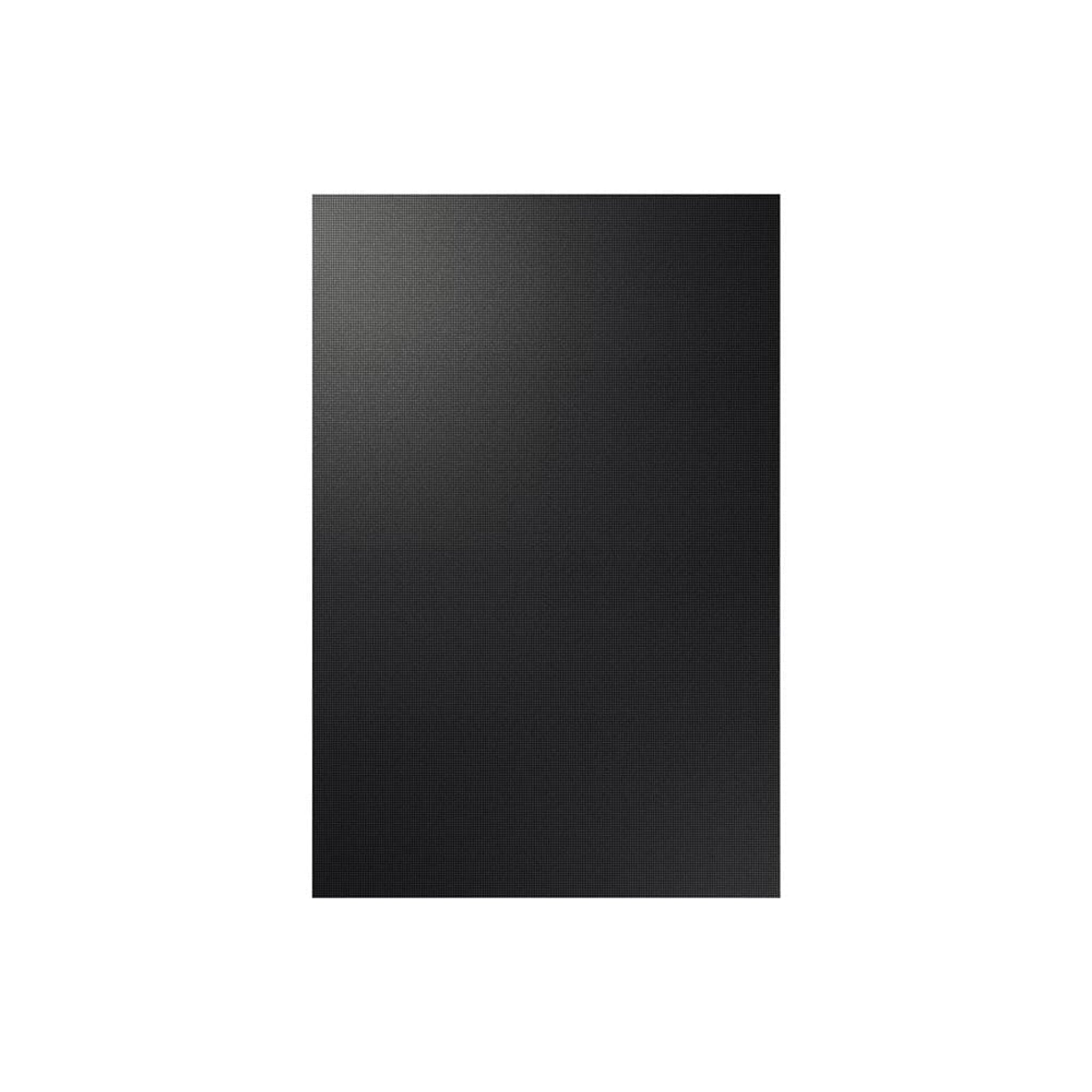

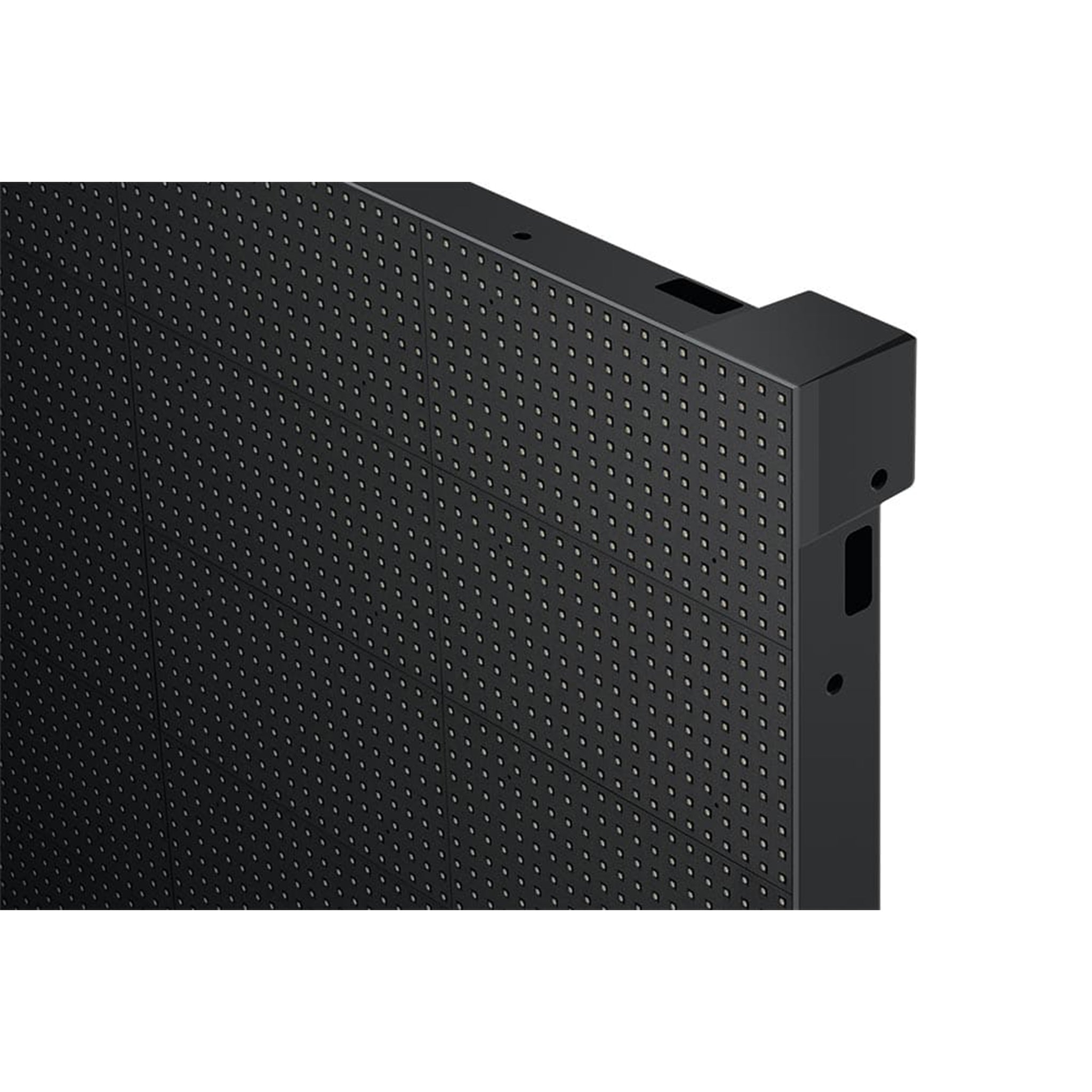

Dynamic lighting can expose higher pixel-pitch LED displays’ lead framework. IF-D Series eliminate this visual inconsistency by applying an external black mask* across the LED module. This mask closes the gaps responsible for the ensuing glittering effect, and reinforces uniform contrast.

* The black mask module only is applicable for the IF040H-D and IF060H-D models.
* Here, “Conventional LED Display” refers to displays that do not apply external mask.

Fine-Tune Uniformity

Rigorous factory calibration and real-time DSLR camera sub-pixel calibration fine-tune all IF-D Series sub-pixels for uniform brightness and color chromaticity. When coupled with the Samsung LED Signage Manager’s advanced picture settings, this enhanced treatment produces an excellent presentation.

Expand Composition Possibilities

The IF-D Series’ advanced design includes eye-catching convex* and concave curved configurations (up to 6,000R). Additionally, businesses can align their IF-D Series displays on an incline or adhere them to a ceiling**, opening new engagement possibilities regardless of environmental constraints.

* Convex designs are only available for the IF025H-D, IF040H-D and IF060H-D models.
** Inclined or ceiling installations are only possible with the IF040H-D and IF060H-D models.

Ease Maintenance with Full Access

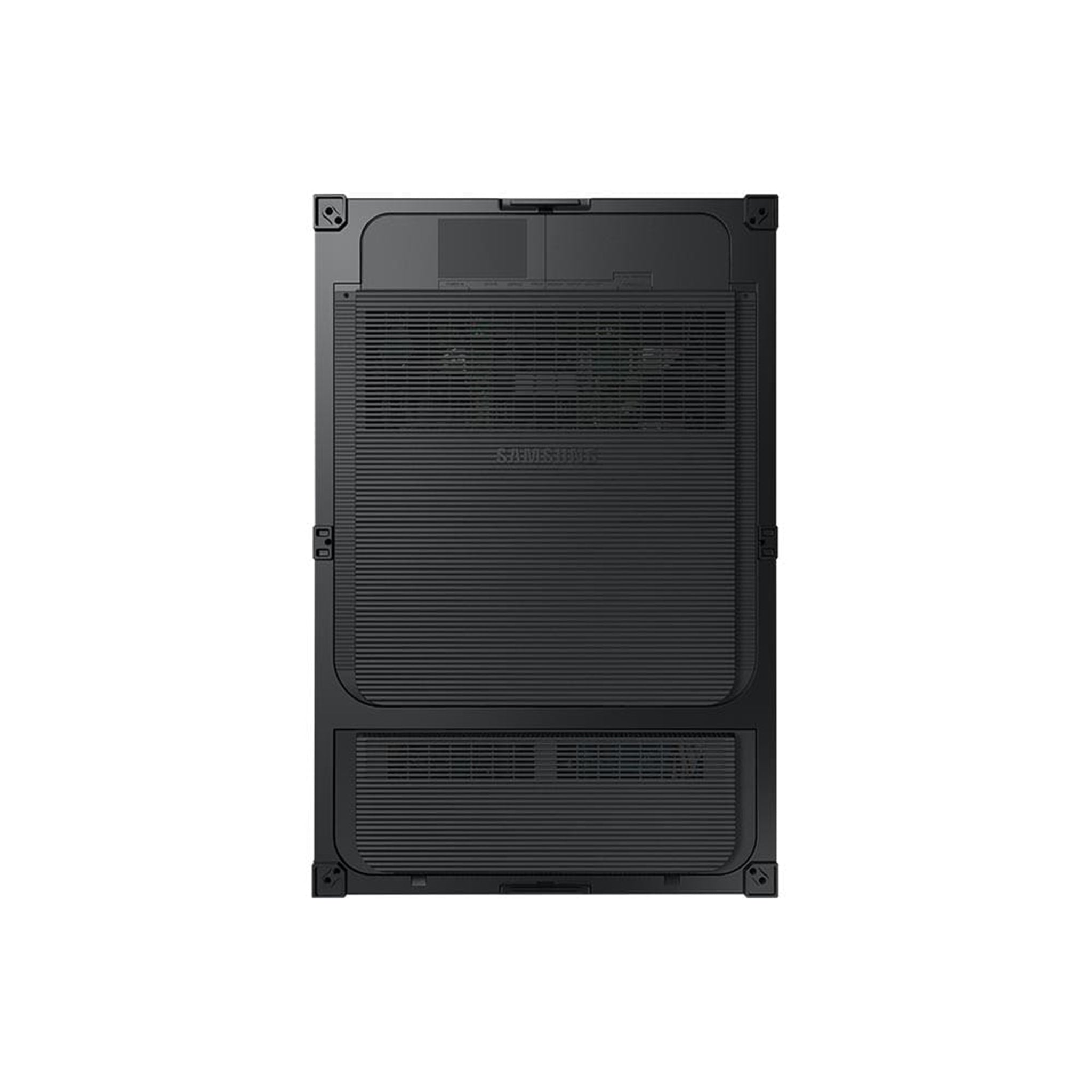

The IF-D Series displays offer full-front access to critical signage components, driving clean installations free of catwalk space and ensuring closer adherence to neighboring surfaces. Similarly, the displays foster fast and convenient maintenance by making rear display components fully accessible.

Streamline UHD Content Delivery

Samsung’s compatible S-Box condenses the delivery of compelling content to a single, centralized device. The S-Box transmits UHD content across multiple IF-D Series displays without requiring external boxes or splitters, helping businesses enjoy faster and more cost-efficient operations.

* “Conventional display” settings will vary depending on the companion sending box and type of content ultimately presented.

Manage Content and Devices Anywhere

Compatibility with the MagicInfo platform enables IF-D Series users to create, schedule and deploy content across an entire signage network. Users likewise can monitor and adjust display settings and troubleshoot potential performance issues from any location via remote access.

Physical Parameter

Pixel Pitch4.0 mm
Pixel Configuration1 red, 1 green, 1 blue
Configuration (LxH, per cabinet)120x180 pixels (per cabinet)
Diode TypeSurface Mount Device (SMD)

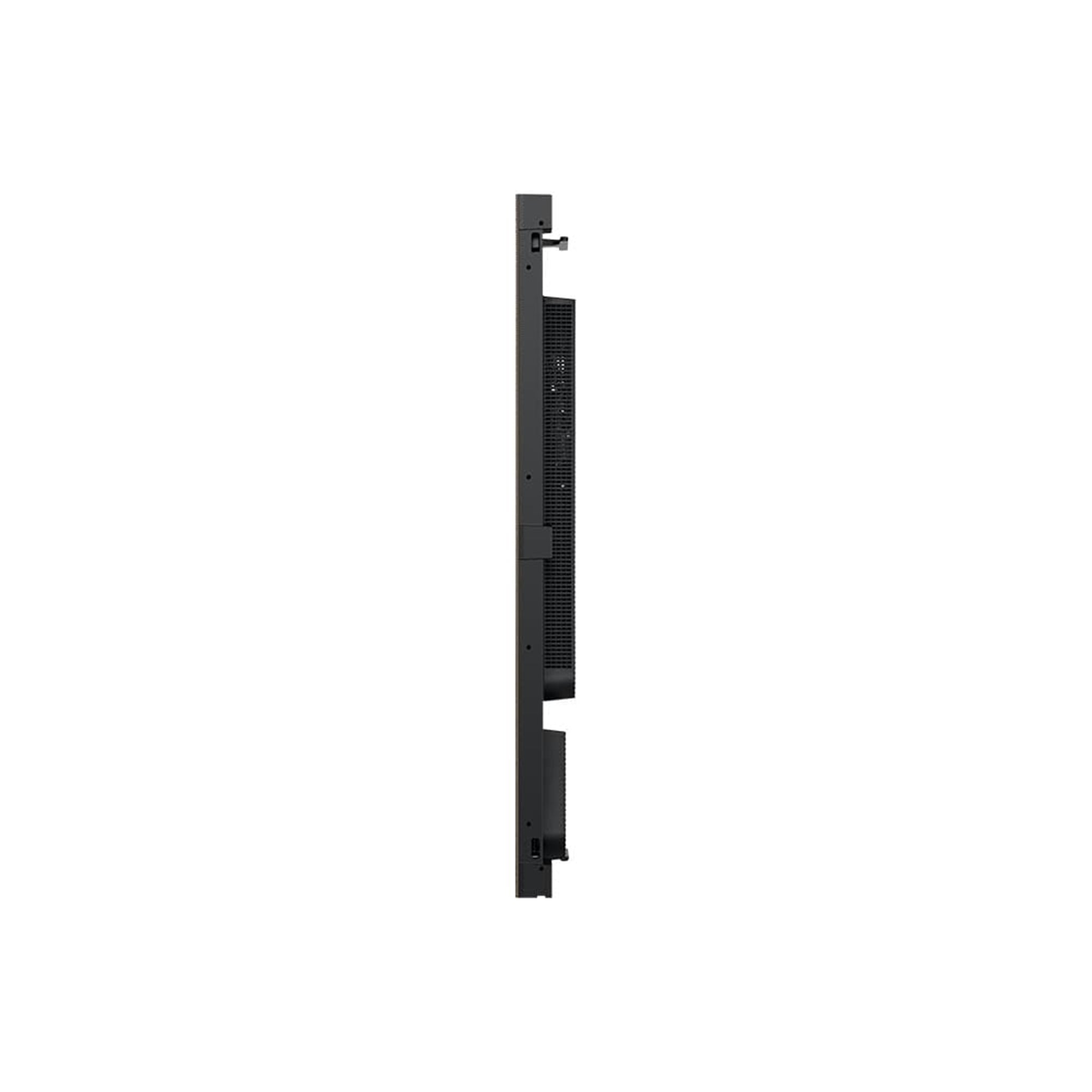

Dimensions (㎜, LxHxD, per cabinet) 480x720x65 mm (per cabinet)
Dimensions (inch, inchxD, per cabinet)34 inch x 2.56 inch
Weight 7.4kg (per cabinet)

Optical Parameter

Brightness (Peak/Max)⁽¹⁾ 1,700 nit / 1,200 nit
Contrast Ratio (Peak/Max)⁽¹⁾ 7,000:1 / 5,000:1
Viewing angle - Horizontal160°
Viewing angle - Vertical160°
Bit Depth16bit per Color
Color Temperature - Default6,500K
Color temperature - Adjustable2,800 ~ 10,000K (use S/BOX)

Electrical Parameter

Video Rate 50/60 Hz
Cabinet - Input Power Range 100~240 VAC, 50/60 Hz
Power consumption - Max 580 (W/m²) / 200 (W/Cabinet)
Power consumption - Typical 193 (W/m²) / 67 (W/Cabinet)
Heat Generation - Max(BTU/SF) 184 BTU/SF per hour
Refresh rate1,920Hz, 3,840 Hz Selectable

Operation Conditions

Working Temperature / Humidity0°C~40°C / 10~80%RH
Storage Temperature / Humidity-20°C~45°C / 5~95%RH
IP RatingIP20
LED Lifetime 100,000 hours to half brightness

Certification

CertificationEMC Class A, Safety 60950-1

Service

ServiceFront(3) and Parts Rear(4)

Package

Box Dimension (WxDxH)606 x 847 x 179
Box Volume (m3)0.092
Package Weight (kg, per cabinet)10.4kg (per cabinet)

Curve Installation

Concave6000R
Convex6000R

Disclaimer

Disclaimer⁽¹⁾Peak Value according to IDMS (Information Display Measurement Standard)
Disclaimer⁽³⁾Front Service : IFJ and IF-D offer Front Service to Power Supply/Main Board on a cabinet level
Disclaimer⁽⁴⁾Parts Rear Service : IFJ and IF-D's Power Supply/Main Board can be accessed from the rear
