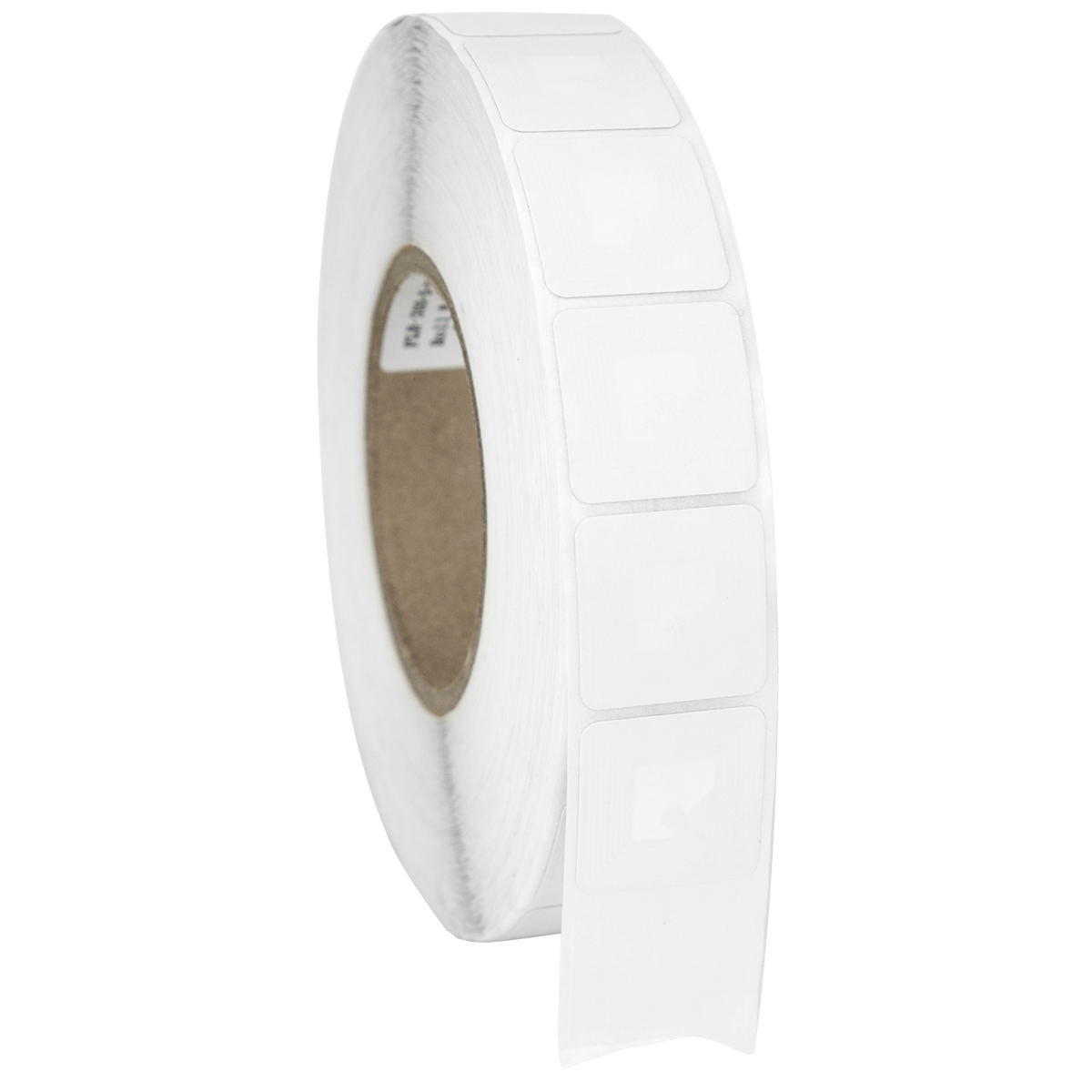

The RF 40x40mm label delivers dependable performance and merchandise protection using RF technology. The label’s small footprint minimizes impact on brand promotion and important product information, allowing application on virtually any package size. This label is available in two sizes. The small rolls are designed for hand and tabletop application and the large rolls are for automatic application at the point of manufacturing. When applied to merchandise at the point of manufacturing, retailers receive floorready merchandise with consistent label placement to expedite receiving and selling floor fulfillment.

Materials of Construction

Small & Large Rolls
70µm AL+15µm CPP+10µm AL

Hot Melt Adhesive
934E Henkel

Dimensions
Color ...................... White
Length.............................40mm ± 0.5mm
(1.57in ± 0.0197in)
Width ..............................40mm ± 0.5mm
(1.57in ± 0.0197in)
Thickness.................0.20mm ± 0.015mm
(0.0078in ± 0.0006in)
Liner Width.....................43mm ± 1.0mm
(1.69in ± 0.0394in)
Label to Liner Spacing
..........................................3.mm ± 0.5mm
(0.12in ± 0.0197)
